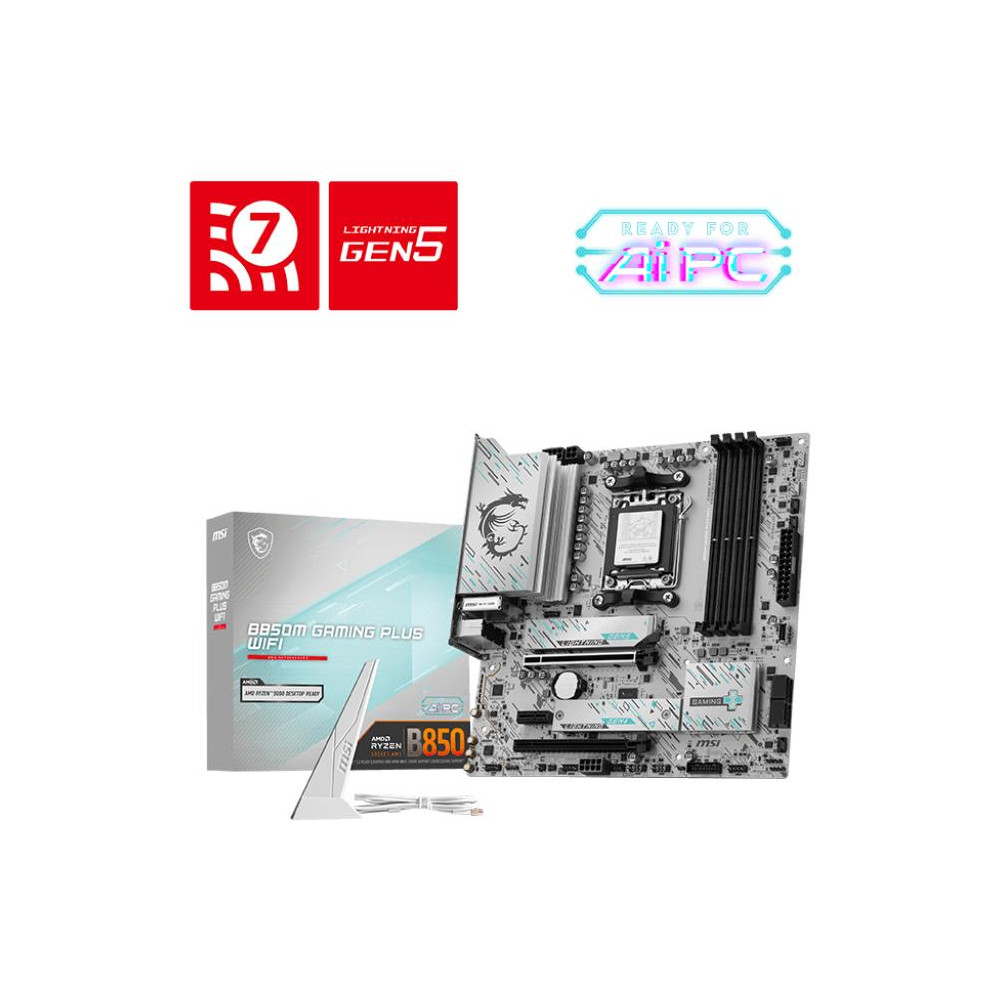

B850M GAMING PLUS WIFI
The B850M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the latest Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 8+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8+4-pin power connectors and exclusive Core Boost technology, the B850M GAMING PLUS WIFI is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Charakteristikos
- Garantija
- 36
- Summary
- MSI B850M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, M
- Vendor Homepage
- https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI/Overview
- Category Code
- MBA
- Unit Box Height
- 0.28
- Unit Box Length
- 0.28
- Unit Box Width
- 0.07
- Processor (Processor manufacturer)
- AMD
- Network (Bluetooth)
- Yes
- Network (Top Wi-Fi standard)
- Wi-Fi 7 (802.11be)
- Network (Wi-Fi standards)
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Weight & dimensions (Depth)
- 243.84 mm
- Weight & dimensions (Width)
- 243.84 mm
- Model
- B850M GAMING PLUS WIFI
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.005488 cubm
- Unit Calculated Weight
- 1.48 kg
- Network (Bluetooth version)
- 5.4
- Memory (Maximum internal memory)
- 256 GB
- Network (Wi-Fi)
- Yes
- Graphics (On-board graphics card)
- No
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- Socket AM5
- Memory (Memory channels)
- Dual-channel
- Network (LAN controller)
- Realtek RTL8126
- Expansion slots (PCI Express x16 (Gen 5.x) slots)
- 1
- Features (Product colour)
- Black
- Features (Windows operating systems supported)
- Windows 11 x64
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- AMD B850
- Features (Motherboard chipset family)
- AMD
- Features (Motherboard form factor)
- micro ATX
- Processor (Compatible processor series)
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Processor (Supported processor sockets)
- Socket AM5
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Memory slots type)
- DIMM
- Memory (Number of memory slots)
- 4
- Memory (Supported memory clock speed (max))
- 8200 MHz
- Memory (Supported memory clock speeds)
- 4800/6400/8200 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Storage controllers (Number of storage drives supported)
- 7
- Storage controllers (RAID levels)
- 0/1/10
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- M.2
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Internal I/O (ATX Power connector (24-pin))
- Yes
- Internal I/O (CPU fan connector)
- Yes
- Internal I/O (Front panel audio connector)
- Yes
- Internal I/O (Front panel connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 4
- Internal I/O (USB 2.0 connectors)
- 4
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 2
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (HDMI version)
- 2.1
- Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
- 4
- Network (Ethernet interface type)
- 5 Gigabit Ethernet
- Expansion slots (Number of M.2 (M) slots)
- 3
- Expansion slots (PCI Express x16 slots)
- 1
- BIOS (ACPI version)
- 6.5
- BIOS (BIOS memory size)
- 256 Mbit
- BIOS (BIOS type)
- UEFI AMI
- BIOS (System Management BIOS (SMBIOS) version)
- 3.7
- Storage controllers (Number of HDDs supported)
- 4
- Expansion slots (PCI Express x16 (Gen 3.x) slots)
- 1
- Features (Audio chip)
- Realtek ALC897
- Expansion slots (PCI Express x16 (Gen 4.x) slots)
- 1
- Internal I/O (Number of CPU fan connectors)
- 2
- Internal I/O (Total number of SATA connectors)
- 4
- Internal I/O (RGB LED pin header)
- Yes
- Expansion slots (1st M.2 highest PCI Express generation)
- 5.0
- Expansion slots (1st M.2 largest key size)
- 2280
- Internal I/O (Number of RGB LED pin headers)
- 3
- Expansion slots (2nd M.2 highest PCI Express generation)
- 5.0
- Expansion slots (2nd M.2 largest key size)
- 2280
- Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
- 1
- Internal I/O (Number of water pump connectors)
- 1
- Expansion slots (PCI Express x4 slots)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
- 2
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
- 3
- Expansion slots (3rd M.2 highest PCI Express generation)
- 4.0
- Expansion slots (3rd M.2 largest key size)
- 2280
