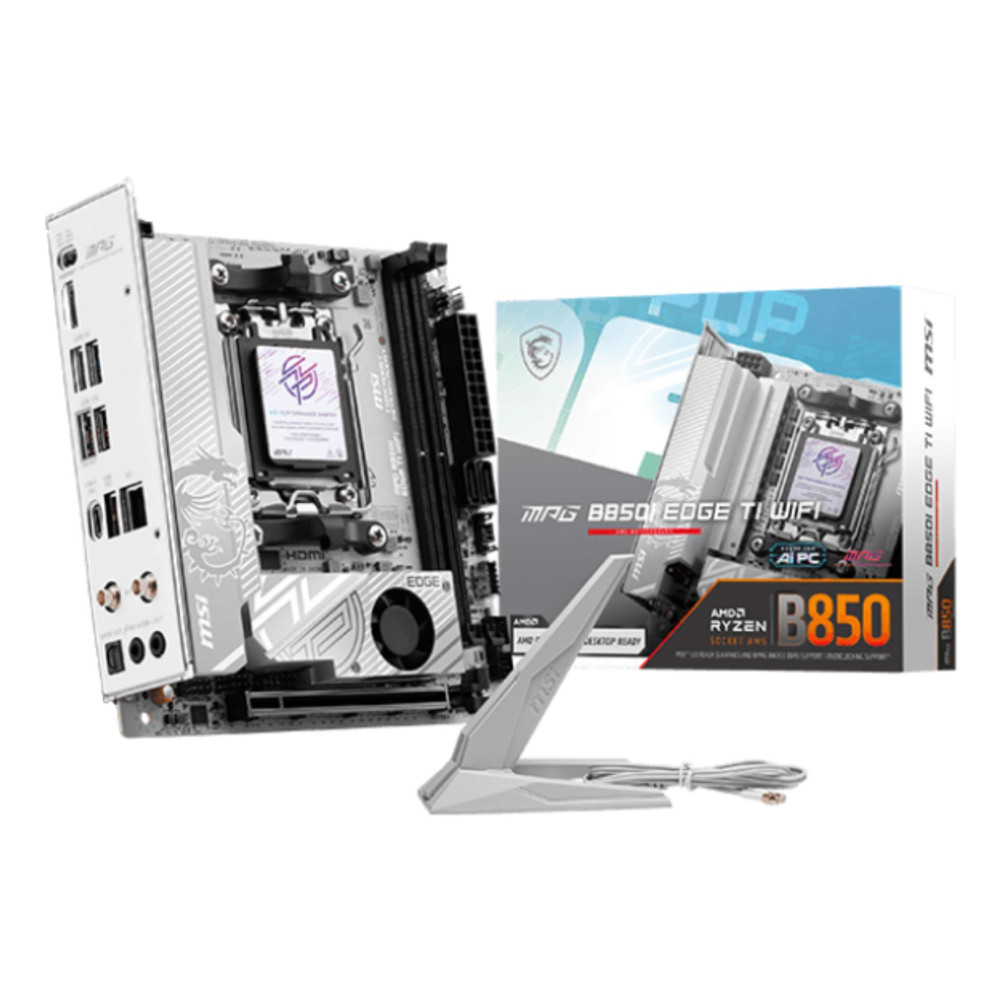

Mainboard|MSI|AMD B850|SAM5|Mini-ITX|Memory DDR5|Memory slots 2|MPGB850IEDGETIWIFI

Charakteristikos

Garantija

36

Summary

MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memor

Vendor Homepage

https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification

Category Code

MBA

CnCode

84733020

Unit Box Height

0.06

Unit Box Length

0.225

Unit Box Width

0.275

Processor (Processor manufacturer)

AMD

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)

Weight & dimensions (Depth)

170 mm

Weight & dimensions (Width)

170 mm

Model

MPG B850I EDGE TI WIFI

Units per Shipping Box

10

Unit Calculated Volume

0.004394 cubm

Unit Calculated Weight

1.28 kg

Network (Bluetooth version)

5.4

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

128 GB

Network (Wi-Fi)

Yes

Graphics (On-board graphics card)

No

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Network (LAN controller)

Realtek RTL8126

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Product colour)

Grey

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD B850

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

mini ITX

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

8200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (RAID levels)

0/1

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,NVMe,SATA III

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Number of SATA III connectors)

2

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Network (Ethernet interface type)

5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

2

Internal I/O (Number of chassis fan connectors)

6

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (RGB LED pin header)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

3

Packaging content (Antenna included)

Yes

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Other features (Quick installation guide)

Yes
