Mainboard|ASUS|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 16x|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3x

Charakteristikos

Garantija

36

Summary

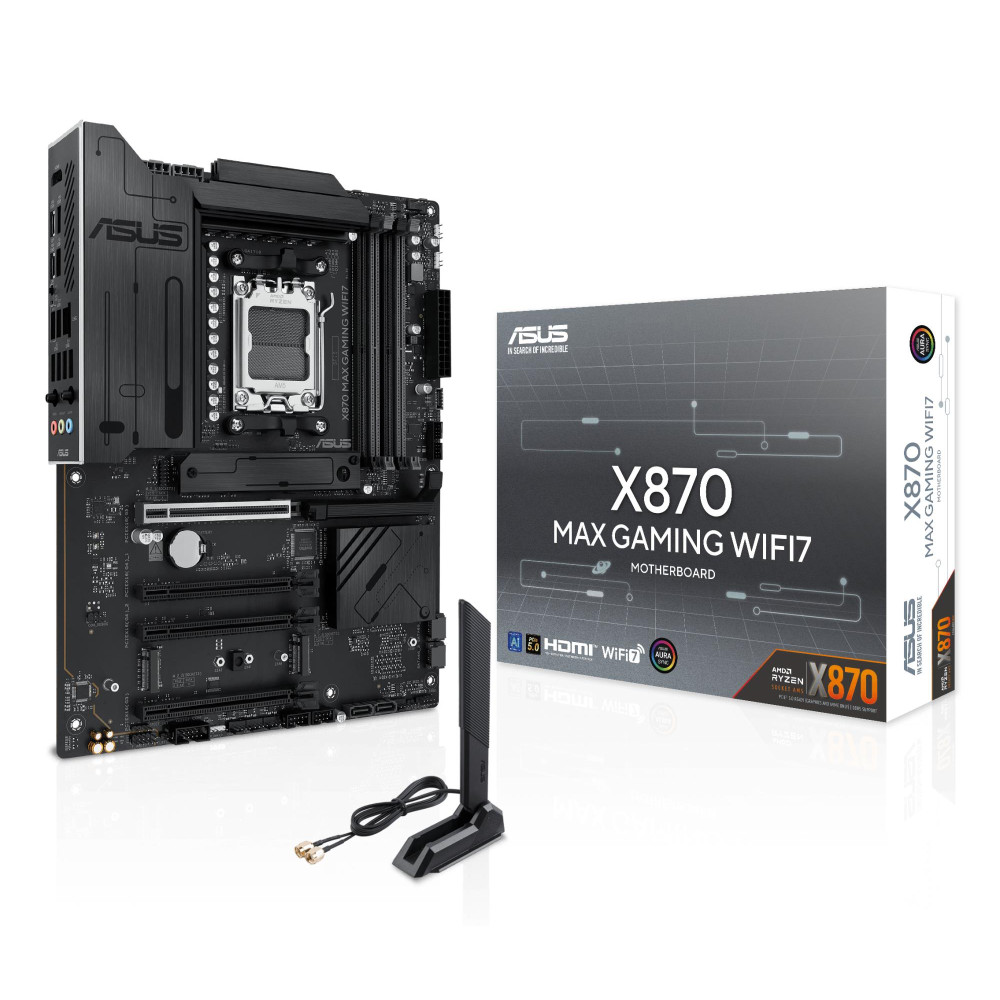

ASUS X870 MAX GAMING WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, M

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/others/x870-max-gaming-wifi7/

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.356

Unit Box Width

0.273

Processor (Processor manufacturer)

AMD

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

48 mm

Weight & dimensions (Width)

305 mm

Model

X870 MAX GAMING WIFI7

Units per Shipping Box

4

Unit Calculated Volume

0.007624 cubm

Unit Calculated Weight

2.13 kg

Network (Bluetooth version)

5.4

Memory (Maximum internal memory)

256 GB

Network (Wi-Fi)

Yes

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

273 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1950 g

Packaging data (Package width)

353 mm

Other features (Weight)

1360 g

Memory (Memory channels)

Dual-channel

Features (Product colour)

Multicolour

Features (Windows operating systems supported)

Windows 11

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD X870

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8000 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

7

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

3

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of COM connectors)

1

Rear panel I/O ports (Line-in)

Yes

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Internal I/O (S/PDIF out connector)

Yes

Expansion slots (PCI Express x16 (Gen 4.x) slots)

2

Internal I/O (Number of CPU fan connectors)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Packaging content (Antenna included)

Yes

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Rear panel I/O ports (USB4 Gen 3x2 ports quantity)

2
