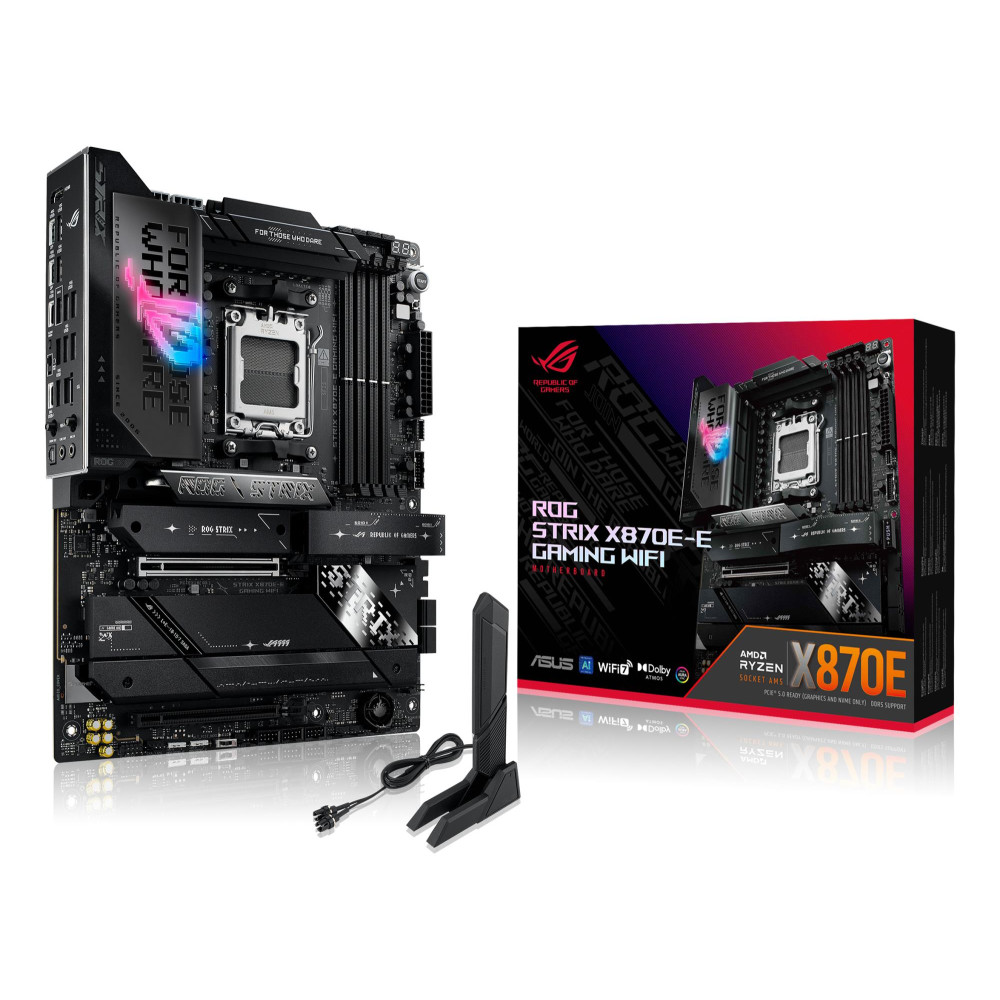

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB 3.2|

Charakteristikos

Garantija

36

Summary

ASUS ROG STRIX X870E-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive i

Vendor Homepage

https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/

Category Code

MBA

Unit Box Height

0.09

Unit Box Length

0.36

Unit Box Width

0.282

Processor (Processor manufacturer)

AMD

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Network (Wi-Fi standards)

Wi-Fi 7 (802.11be)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

50 mm

Weight & dimensions (Width)

305 mm

Model

ROG STRIX X870E-E GAMING WIFI

Units per Shipping Box

5

Unit Calculated Volume

0.01096 cubm

Unit Calculated Weight

3.06 kg

Network (Bluetooth version)

5.4

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

192 GB

Network (Wi-Fi)

Yes

Graphics (On-board graphics card)

No

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

281 mm

Packaging data (Package height)

87 mm

Packaging data (Package weight)

3025 g

Packaging data (Package width)

365 mm

Other features (Weight)

2060 g

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Product colour)

Black

Features (Windows operating systems supported)

Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD X870E

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

ATX

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

9

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (USB 2.0 connectors)

3

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Network (Ethernet interface type)

5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

5

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

5

Features (Audio chip)

Realtek ALC4080

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (Clear CMOS button)

Yes

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

9

Rear panel I/O ports (WiFi-AP antenna jack)

1

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Rear panel I/O ports (USB4 Gen 2x2 ports quantity)

2
