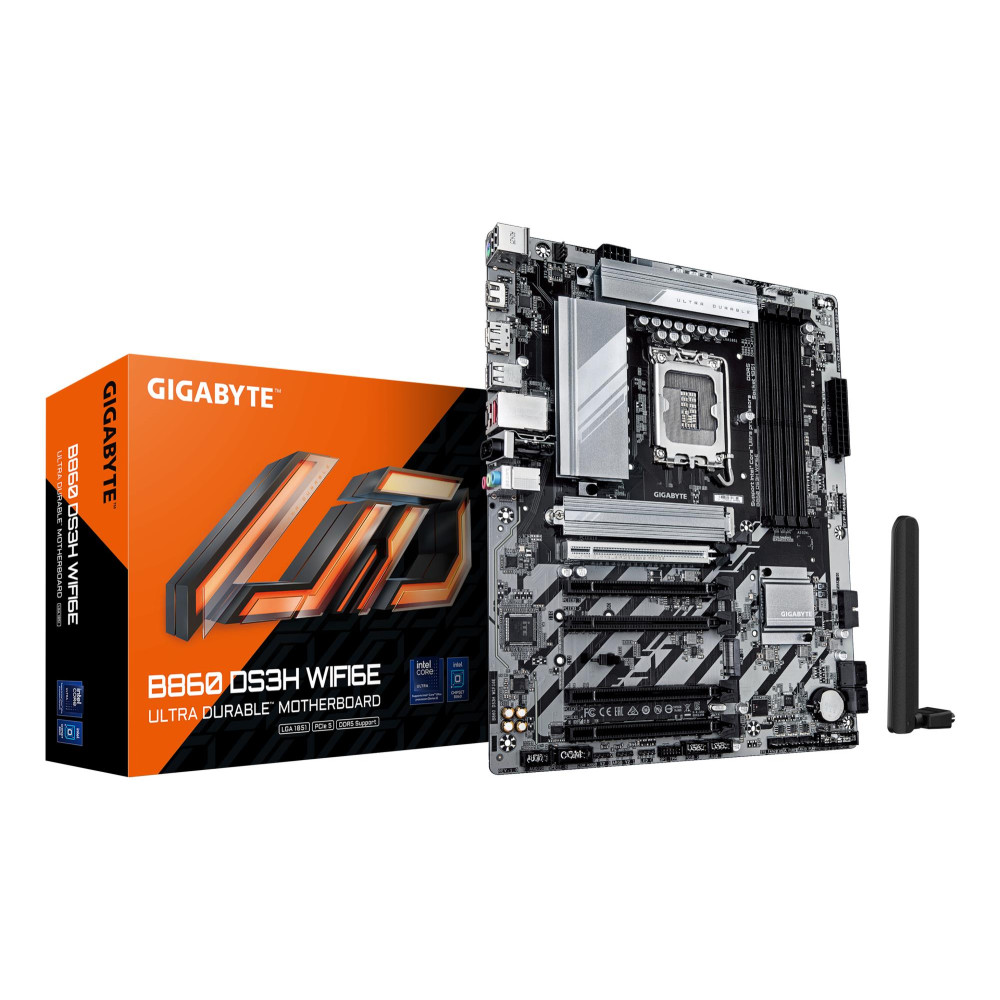

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|ATX|Memory DDR5|5xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Ou

Charakteristikos

Garantija

36

Summary

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compati

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBI

Unit Box Height

0.275

Unit Box Length

0.345

Unit Box Width

0.085

Processor (Processor manufacturer)

Intel

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

305 mm

Model

B860 DS3H WIFI6E

Units per Shipping Box

8

Unit Calculated Volume

0.01042 cubm

Unit Calculated Weight

1.63 kg

Network (Bluetooth version)

5.3

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Memory (Maximum internal memory)

256 GB

Network (Wi-Fi)

Yes

Battery (Number of battery cells)

1

Network (WLAN controller model)

Intel Wi-Fi 6E AX211

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1851 (Socket V1)

Packaging data (Package depth)

270 mm

Packaging data (Package height)

80 mm

Packaging data (Package width)

335 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Other features (Weight)

2000 g

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Network (LAN controller)

Realtek RTL8125

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Supported processor sockets)

LGA 1851

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

9066 MHz

Memory (Supported memory clock speeds)

5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

2

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Cooling type)

Passive

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

4

Rear panel I/O ports (Line-in)

Yes

Features (Audio chip)

Realtek ALC897

Internal I/O (S/PDIF out connector)

Yes

Graphics (DirectX version)

12.0

Internal I/O (Number of EPS power connectors (8-pin))

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

4

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (RGB LED pin header)

Yes

Internal I/O (Serial port headers)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Internal I/O (Number of RGB LED pin headers)

4

Rear panel I/O ports (DisplayPort version)

2.1

Memory (Maximum internal memory per slot)

64 GB

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

25110

Internal I/O (Number of water pump connectors)

3

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Packaging content (Antenna included)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1
