Switch|DAHUA|DH-S3024-24GT|Switch type Unmanaged|Switch layer L2|Rack mounting Yes|Stackable Yes|Form factor Desktop/Wall-Mounti

Switch|DAHUA|DH-S3024-24GT|Switch type Unmanaged|Switch layer L2|Rack mounting Yes|Stackable Yes|Form factor Desktop/Wall-Mounti

DAHUA
1468333
DH-S3024-24GT | Type Unmanaged | Switch layer L2 | 24xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) | Switching capacity 48 Gbit/s | Forwarding rate 35.712 Mpps | Rack mounting Yes | Stackable Yes | Form factor Desktop/Wall-Mounting | Product colour Black | Power source AC | Power supply included Yes | 1xNumber of power supply units | Width 119 mm | Depth 294 mm | Height 44 mm | Weight 830 g
Paskubėkite! liko tik 5 liko prekių sandėlyje.
75,64 €
Su mokesčiais
Kiekis

Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

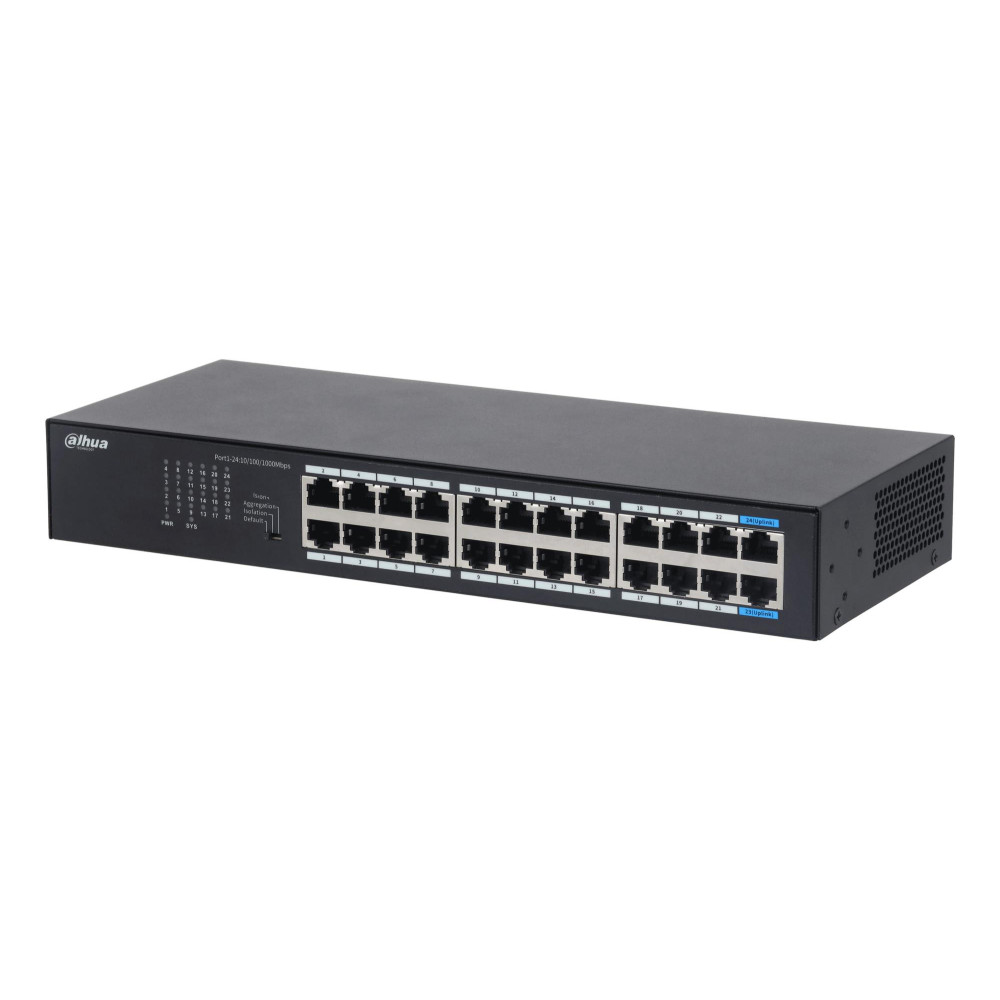

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the Device features great heat dissipation capability on the shell surface. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is
powered on.

Full Line-rate Forwarding
The ports perform error-free forwarding of frames at high speeds while under a full load.

Easy Installation
Supports desktop, rack mounting and wall mounting, suitable for various scenarios.

Flexible Application
Suitable for use in a wide variety of scenes to meet your requirements.

Port Isolation
Devices under different ports are prevented from communicating with each other, without need of VLAN being configured. Data is also protected from being leaked from the PoE ports and broadcast storms are isolated, making the network safe and easy to use.

Link Aggregation
Combines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.

  • 24 × RJ-45 10/100/1000 ports
  • The all-gigabit ports transmit data without lag
  • Features aggregation mode which aggregates uplink ports
  • Features isolation mode which isolates all the ports from each other
  • With its solid full metal design, the device has great heat dissipation and no fan
  • Supports rack mount, wall mount and desktop mount
DAHUA
: 1468333
: 5 Prekės
Paskubėkite! liko tik 5 liko prekių sandėlyje.

Charakteristikos

Garantija
36
Summary
Dahua Technology DH-S3024-24GT. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 4
Vendor Homepage
https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/MetalSwitch/S3024-24GT
Category Code
SWI
CnCode
85176200
Unit Box Height
0.215
Unit Box Length
0.35
Unit Box Width
0.075
Design (Form factor)
Desktop/Wall-Mounting
Design (Product colour)
Black
Weight & dimensions (Depth)
294 mm
Weight & dimensions (Height)
44 mm
Weight & dimensions (Weight)
830 g
Weight & dimensions (Width)
119 mm
Packaging content (Cables included)
AC
Certificates (Compliance certificates)
CE
Model name
DH-S3024-24GT
Operational conditions (Operating relative humidity (H-H))
5 - 95 %
Operational conditions (Operating temperature (T-T))
-10 - 55 C
Design (Housing material)
Metal
Operational conditions (Storage temperature (T-T))
-40 - 70 C
Packaging content (Manual)
Yes
Operational conditions (Storage relative humidity (H-H))
5 - 95 %
Network (Ethernet LAN data rates)
10,100,1000 Mbit/s
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Input current)
0.4 A
Packaging data (Package type)
Box
Packaging data (Package depth)
353 mm
Packaging data (Package height)
75 mm
Packaging data (Package weight)
1340 g
Packaging data (Package width)
215 mm
Design (LED indicators)
Yes
Power (Power source)
AC
Power (Power consumption (max))
12.3 W
Management features (Switch type)
Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
24
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
Gigabit Ethernet (10/100/1000)
Network (10G support)
No
Network (Flow control support)
Yes
Data transmission (Forwarding rate)
35.712 Mpps
Data transmission (MAC address table)
16000 entries
Data transmission (Packet buffer memory)
8.4 MB
Data transmission (Switching capacity)
48 Gbit/s
Design (Rack mounting)
Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE))
No
Network (Networking standards)
IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x
Data transmission (Jumbo frames)
12000
Data transmission (Jumbo frames support)
Yes
Design (Stackable)
Yes
Power (Power supply included)
Yes
Management features (Switch layer)
L2
Ports & interfaces (Power connector)
AC-in jack
Design (Wall mountable)
Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity)
24
Power (Number of power supply units)
1
Packaging content (Rack mount kit)
Yes
Network (Link aggregation)
Yes
ELKO Internal Logistics Data (Unit Calculated Volume)
0.005644 cubm
Name
NET SWITCH 24PORT/S3024-24GT DAHUA
ELKO Verified Logistics Data (Unit Calculated Weight)
1.5 kg
ELKO Verified Logistics Data (Product Net Weight)
0.83 kg
ELKO Verified Logistics Data (Units per Shipping Box)
1
ELKO Verified Logistics Data (Unit Width)
7.5 cm
ELKO Verified Logistics Data (Unit Depth)
35 cm
ELKO Verified Logistics Data (Unit Height)
21.5 cm
