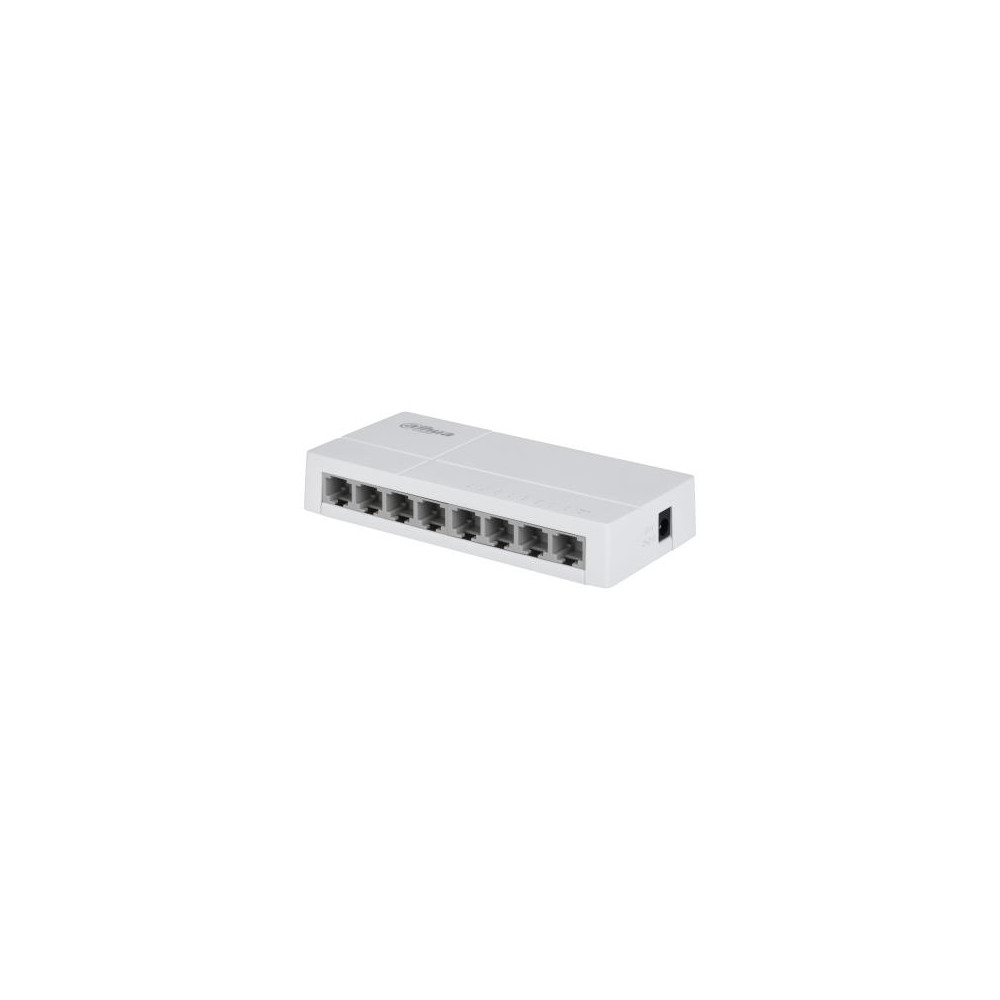

Switch|DAHUA|SF1008L-EUR|SF1008L-EUR

Switch|DAHUA|SF1008L-EUR|SF1008L-EUR

DAHUA
1455222
SF1008L-EUR | Type Unmanaged | 8xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Switching capacity 1.6 Gbit/s | Forwarding rate 0.744 Mpps | Form factor Desktop | Product colour Light grey | Power source DC/PoE | Power consumption (typical) 0.1 W | Power over Ethernet (PoE) Yes | Width 132.9 mm | Depth 62.4 mm | Height 24 mm | Weight 160 g
Paskubėkite! liko tik 18 liko prekių sandėlyje.
18,70 €
Su mokesčiais
Kiekis

Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.

Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.

Optimized Performance
All ports can transmit streams at high speeds without delay.

Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.

  • > Supports five 10/100 Mbps adaptive ports
  • > Small and light, it is easy to carry and has multiple chips embedded in it
  • > Easy to operate
DAHUA
: 1455222
: 18 Prekės
Paskubėkite! liko tik 18 liko prekių sandėlyje.

Charakteristikos

Garantija
36
Summary
Dahua Technology PoE DH-SF1008L. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. DC input voltage
Vendor Homepage
https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1008L
Category Code
SWI
Unit Box Height
0.065
Unit Box Length
0.139
Unit Box Width
0.091
Design (Form factor)
Desktop
Design (Product colour)
Light grey
Weight & dimensions (Depth)
62.4 mm
Weight & dimensions (Height)
24 mm
Weight & dimensions (Weight)
160 g
Weight & dimensions (Width)
132.9 mm
Units per Shipping Box
1
Unit Calculated Volume
0.0008222 cubm
Unit Calculated Weight
0.21 kg
Model name
SF1008L-EUR
Operational conditions (Operating relative humidity (H-H))
5 - 95 %
Operational conditions (Operating temperature (T-T))
0 - 45 C
Operational conditions (Storage temperature (T-T))
-40 - 70 C
Operational conditions (Storage relative humidity (H-H))
5 - 95 %
Network (Ethernet LAN data rates)
10,100 Mbit/s
Power (Input current)
1 A
Packaging data (Package depth)
90 mm
Packaging data (Package height)
63.5 mm
Packaging data (Package weight)
290 g
Packaging data (Package width)
138 mm
Performance (Mean time between failures (MTBF))
952.5 h
Design (LED indicators)
Yes
Power (Power source)
DC/PoE
Power (Power consumption (max))
0.5 W
Power (Power consumption (typical))
0.1 W
Management features (Switch type)
Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
Fast Ethernet (10/100)
Ports & interfaces (Fast Ethernet (copper) ports quantity)
8
Ports & interfaces (Uplink ports quantity)
1
Network (10G support)
No
Network (Cable types supported)
Cat5e/Cat6
Network (Copper ethernet cabling technology)
10BASE-T
Network (Flow control support)
Yes
Data transmission (Forwarding rate)
0.744 Mpps
Data transmission (MAC address table)
2000 entries
Data transmission (Packet buffer memory)
0.768 MB
Data transmission (Switching capacity)
1.6 Gbit/s
Design (Rack mounting)
No
Power (DC input voltage)
5 V
Power over Ethernet (PoE) (Power over Ethernet (PoE))
Yes
