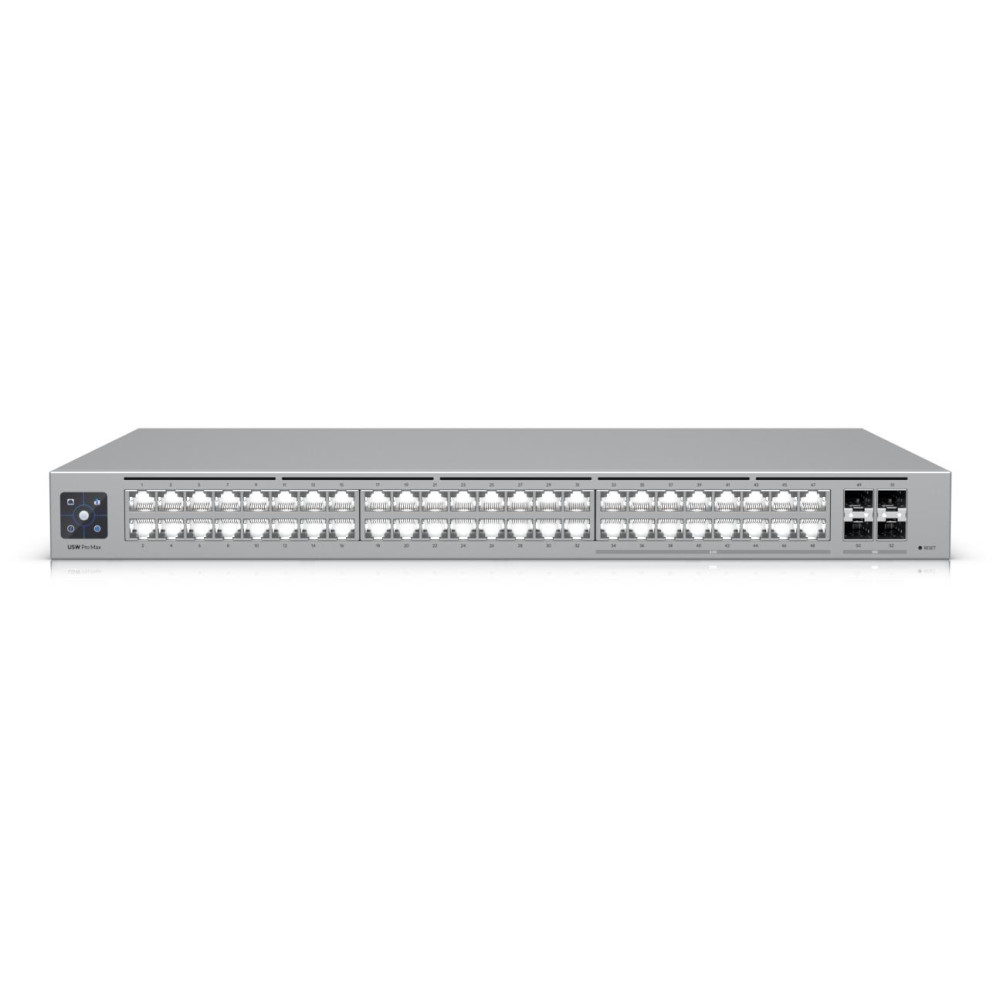

Switch|UBIQUITI|Pro Max 48|Type L3|USW-PRO-MAX-48

Switch|UBIQUITI|Pro Max 48|Type L3|USW-PRO-MAX-48

UBIQUITI
1413468
Pro Max 48 | Switch layer L3 | 48xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) | 4xSFP+ module slots quantity | Yes | Port mirroring Yes | Switching capacity 224 Gbit/s | Throughput 112 Gbit/s | Forwarding rate 166.656 Mpps | Rack mounting Yes | Stackable Yes | Form factor 1U | Product colour Grey | Power source AC/DC | Power supply included Yes | Width 442.4 mm | Depth 325 mm | Height 43.7 mm | Weight 4800 g
Paskubėkite! liko tik 5 liko prekių sandėlyje.
649,85 €
Su mokesčiais
Kiekis

Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

  • (16) 2.5 GbE RJ45 ports
  • (32) GbE RJ45 ports
  • (4) 10G SFP+ ports
  • DC power backup ready
  • Managed with UniFi Network 8.0.24 and later
UBIQUITI
: 1413468
: 5 Prekės
Paskubėkite! liko tik 5 liko prekių sandėlyje.

Charakteristikos

Garantija
12
Summary
Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC.
Vendor Homepage
https://eu.store.ui.com/eu/en/pro/products/usw-pro-max-48
Category Code
SWI
Unit Box Height
0.46
Unit Box Length
0.53
Unit Box Width
0.13
Design (Form factor)
1U
Design (Product colour)
Grey
Weight & dimensions (Depth)
325 mm
Weight & dimensions (Height)
43.7 mm
Weight & dimensions (Weight)
4800 g
Weight & dimensions (Width)
442.4 mm
Model
USW-PRO-MAX-48
Units per Shipping Box
2
Unit Calculated Volume
0.03169 cubm
Unit Calculated Weight
6.58 kg
Packaging content (Cables included)
Power
Certificates (Compliance certificates)
CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Model name
Pro Max 48
Operational conditions (Operating relative humidity (H-H))
10 - 90 %
Operational conditions (Operating temperature (T-T))
-5 - 40 C
Design (Housing material)
SGCC
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (LED indicators)
Link/Network/Speed/Status
Design (Reset button)
Yes
Power (Power source)
AC/DC
Power (Power consumption (max))
100 W
Packaging data (Mounting brackets included)
Yes
Design (Display type)
LCM
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
48
Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
2.5G Ethernet (100/1000/2500)
Network (10G support)
Yes
Network (Flow control support)
Yes
Data transmission (Forwarding rate)
166.656 Mpps
Data transmission (Switching capacity)
224 Gbit/s
Design (Rack mounting)
Yes
Power over Ethernet (PoE) (Power over Ethernet (PoE))
No
Network (Networking standards)
IEEE 802.1x
Data transmission (Jumbo frames support)
Yes
Design (Stackable)
Yes
Power (Power supply included)
Yes
Security (IGMP snooping)
Yes
Management features (Switch layer)
L3
Data transmission (Throughput)
112 Gbit/s
Ports & interfaces (Power connector)
AC/DC
Ports & interfaces (Gigabit Ethernet (copper) ports quantity)
32
Network (Broadcast storm control)
Yes
Network (Port mirroring)
Yes
Network (Virtual LAN features)
Voice VLAN
Network (VLAN support)
Yes
Security (DHCP features)
DHCP relay/DHCP snooping
Security (Loop protection)
Yes
Ports & interfaces (2.5G Ethernet (copper) ports quantity)
16
Ports & interfaces (SFP+ module slots quantity)
4
Power (Redundant power supply (RPS) support)
Yes
Network (Rate limiting)
Yes
Data transmission (Static route)
Yes
