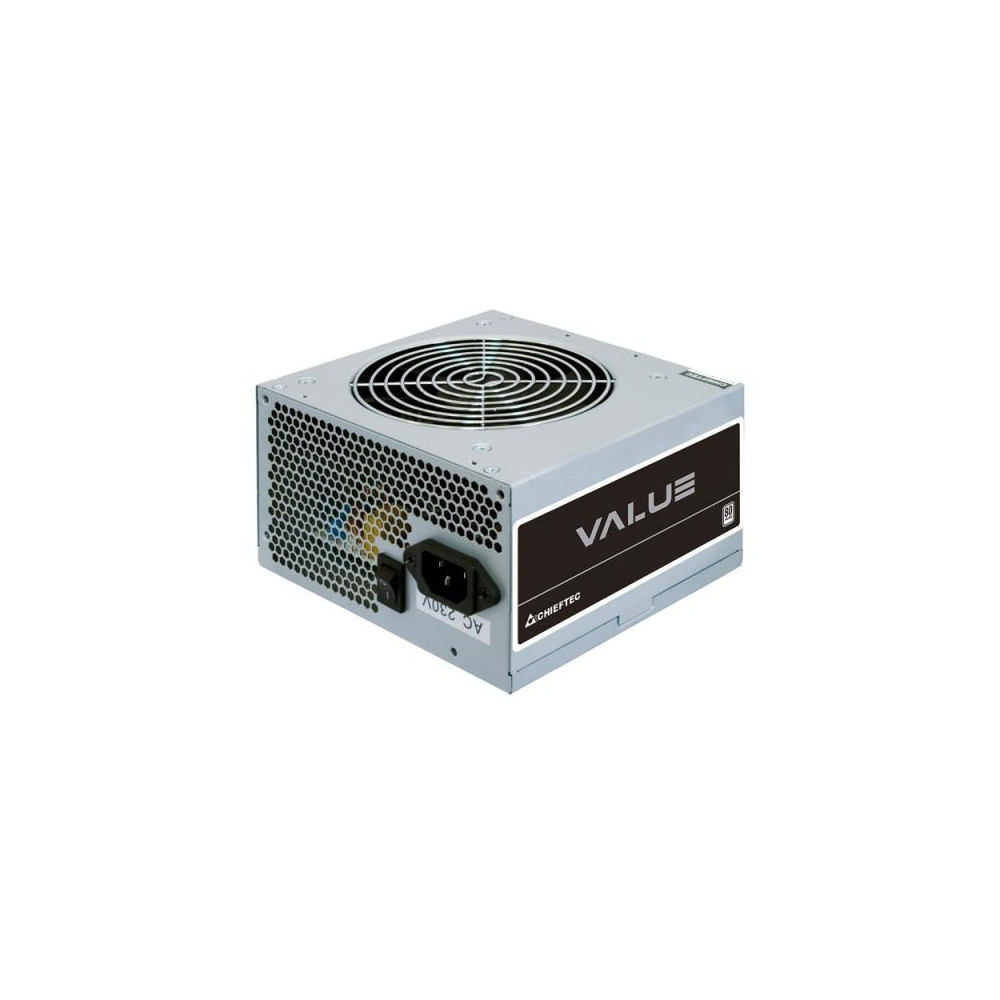

Power Supply|CHIEFTEC|600 Watts|Efficiency 80 PLUS|PFC Active|APB-600B8
The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Charakteristikos
- Garantija
- 24
- Summary
- Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) for
- Vendor Homepage
- https://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.09
- Unit Box Length
- 0.22
- Unit Box Width
- 0.15
- Design (Product colour)
- Steel
- Weight & dimensions (Depth)
- 140 mm
- Weight & dimensions (Height)
- 87 mm
- Weight & dimensions (Weight)
- 1420 g
- Weight & dimensions (Width)
- 150 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00297 cubm
- Unit Calculated Weight
- 1.42 kg
- Certificates (Compliance certificates)
- CE/RoHS
- Logistics data (Harmonized System (HS) code)
- 84733020
- Power (AC input frequency)
- 47 - 63 Hz
- Power (AC input voltage)
- 200 - 240 V
- Power (Max output current (+3.3V))
- 20 A
- Power (Max output current (+5V))
- 20 A
- Power (Max output current (+5Vsb))
- 2.5 A
- Power (Max output current (-12V))
- 0.3 A
- Power (Total power)
- 600 W
- Ports & interfaces (Floppy disk drive connector)
- Yes
- Ports & interfaces (Motherboard power connector)
- 20+4 pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 4
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 2
- Performance (ATX version)
- 2.3
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (Cooling type)
- Active
- Design (Fan diameter)
- 120 mm
- Design (Fan location)
- Top
- Design (Number of fans)
- 1 fan(s)
- Design (On/off switch)
- Yes
- Ports & interfaces (Cabling type)
- Non-Modular
- Ports & interfaces (Motherboard power cable length)
- 550 mm
- Ports & interfaces (Peripheral (Molex) power cable length)
- 150/500 mm
- Ports & interfaces (SATA power cable length)
- 150/500 mm
- Power (Combined power (+12V))
- 552 W
- Power (Combined power (+3.3V))
- 120 W
- Power (Combined power (+5V))
- 120 W
- Power (Combined power (+5Vsb))
- 12.5 W
- Power (Combined power (-12V))
- 3.6 W
- Ports & interfaces (PCI Express power connectors (6+2 pin))
- 2
- Performance (80 PLUS certification)
- 80 PLUS
- Power (Max output current (+12V1))
- 46 A
- Power (Peak power)
- 600 W
- Packaging data (Package weight)
- 1560 g
- Power (Maximum input current (@220V))
- 4.5 A
- Ports & interfaces (EPS power connector (4+4 pin))
- Yes
- Ports & interfaces (EPS power connector (8-pin))
- No
- Ports & interfaces (Floppy disk drive cable length)
- 150 mm
