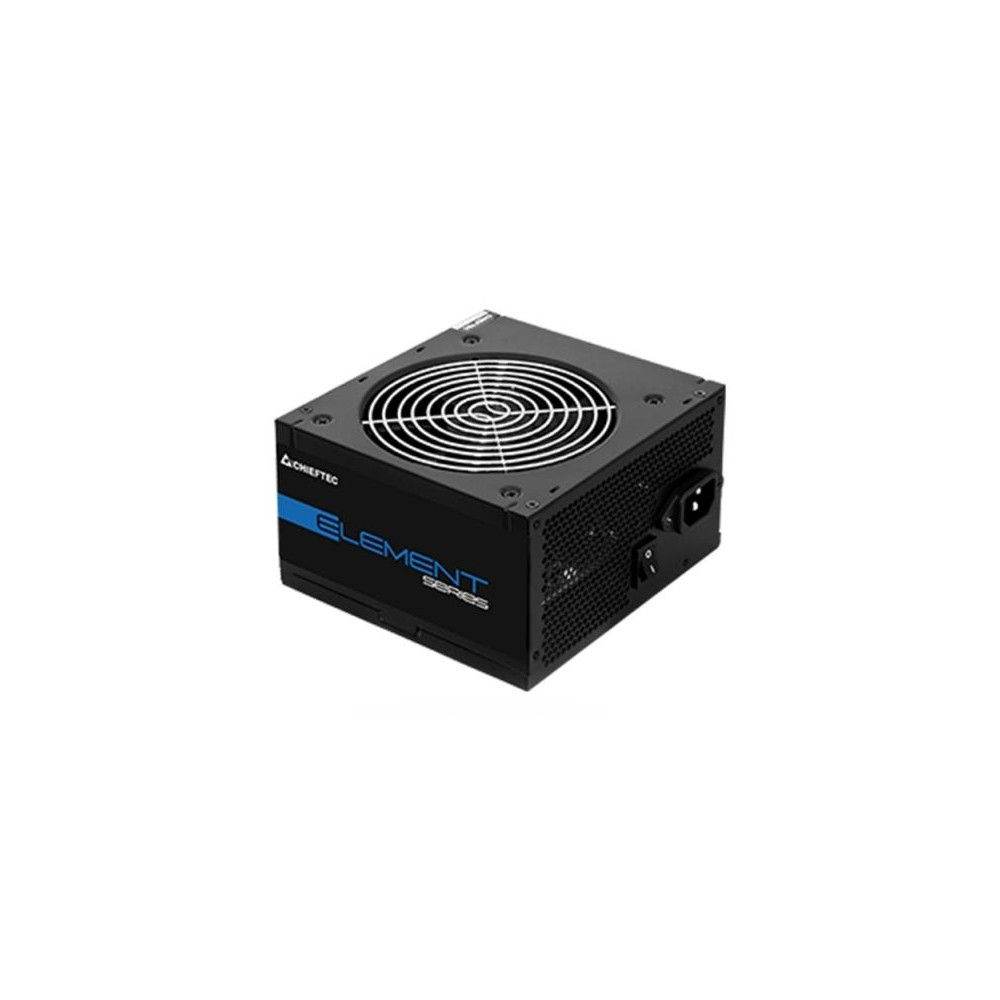

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|ELP-700S

Charakteristikos

Garantija

24

Summary

Chieftec ELP-700S. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PS

Vendor Homepage

https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/128/ELP-700S

Category Code

PSU

CnCode

85044095

Unit Box Height

0.098

Unit Box Length

0.23

Unit Box Width

0.17

Units per Shipping Box

1

Unit Calculated Volume

0.003832 cubm

Unit Calculated Weight

1.83 kg

Product Net Weight

1.4 kg

Desktop Computer PSU | Power (AC input frequency)

47 - 63 Hz

Desktop Computer PSU | Power (AC input voltage)

200 - 240 V

Desktop Computer PSU | Power (Combined power (+12V))

648 W

Desktop Computer PSU | Power (Combined power (+3.3V))

130 W

Desktop Computer PSU | Power (Combined power (+5V))

130 W

Desktop Computer PSU | Power (Input current)

5 A

Desktop Computer PSU | Power (Max output current (+12V))

54 A

Desktop Computer PSU | Power (Max output current (+3.3V))

22 A

Desktop Computer PSU | Power (Max output current (+5V))

22 A

Desktop Computer PSU | Power (Max output current (+5Vsb))

2.5 A

Desktop Computer PSU | Power (Power Factor Correction (PFC) type)

Active

Desktop Computer PSU | Power (Power protection features)

Over power/Over voltage/Short circuit/Under voltage

Desktop Computer PSU | Power (Total power)

700 W

Desktop Computer PSU | Ports & interfaces (Cabling type)

Non-Modular

Desktop Computer PSU | Ports & interfaces (Motherboard power cable length)

650 mm

Desktop Computer PSU | Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Desktop Computer PSU | Ports & interfaces (Number of SATA power connectors)

6

Desktop Computer PSU | Ports & interfaces (PCI Express connector)

Y

Desktop Computer PSU | Ports & interfaces (PCI Express power connectors (6+2 pin))

1

Desktop Computer PSU | Performance (ATX version)

2.3

Desktop Computer PSU | Performance (Power supply unit (PSU) form factor)

PS/2

Desktop Computer PSU | Performance (Purpose)

PC

Desktop Computer PSU | Design (Cooling type)

Active

Desktop Computer PSU | Design (Fan diameter)

120 mm

Desktop Computer PSU | Design (Number of fans)

1 fan(s)

Desktop Computer PSU | Design (On/off switch)

Y

Desktop Computer PSU | Design (Product colour)

Black

Desktop Computer PSU | Certificates (Compliance certificates)

CB/CE/EAC/RoHS

Desktop Computer PSU | Packaging data (Package type)

Box

Desktop Computer PSU | Packaging data (Package weight)

1900 g

Desktop Computer PSU | Power (Combined power (+5Vsb))

12.5 W

Desktop Computer PSU | Power (Combined power (-12V))

3.6 W

Desktop Computer PSU | Power (Efficiency)

85 %

Desktop Computer PSU | Power (Power factor)

0.9

Desktop Computer PSU | Ports & interfaces (Floppy disk drive connector)

Y

Desktop Computer PSU | Performance (80 PLUS certification)

80 PLUS Bronze

Desktop Computer PSU | Weight & dimensions (Depth)

150 mm

Desktop Computer PSU | Weight & dimensions (Height)

86 mm

Desktop Computer PSU | Weight & dimensions (Width)

140 mm

Desktop Computer PSU | Ports & interfaces (EPS power connector (4+4 pin))

Y

Desktop Computer PSU | Ports & interfaces (SATA power cable length)

150/500 mm

Desktop Computer PSU | Performance (Supported motherboard form factors)

ATX

Desktop Computer PSU | Weight & dimensions (Weight)

1650 g
