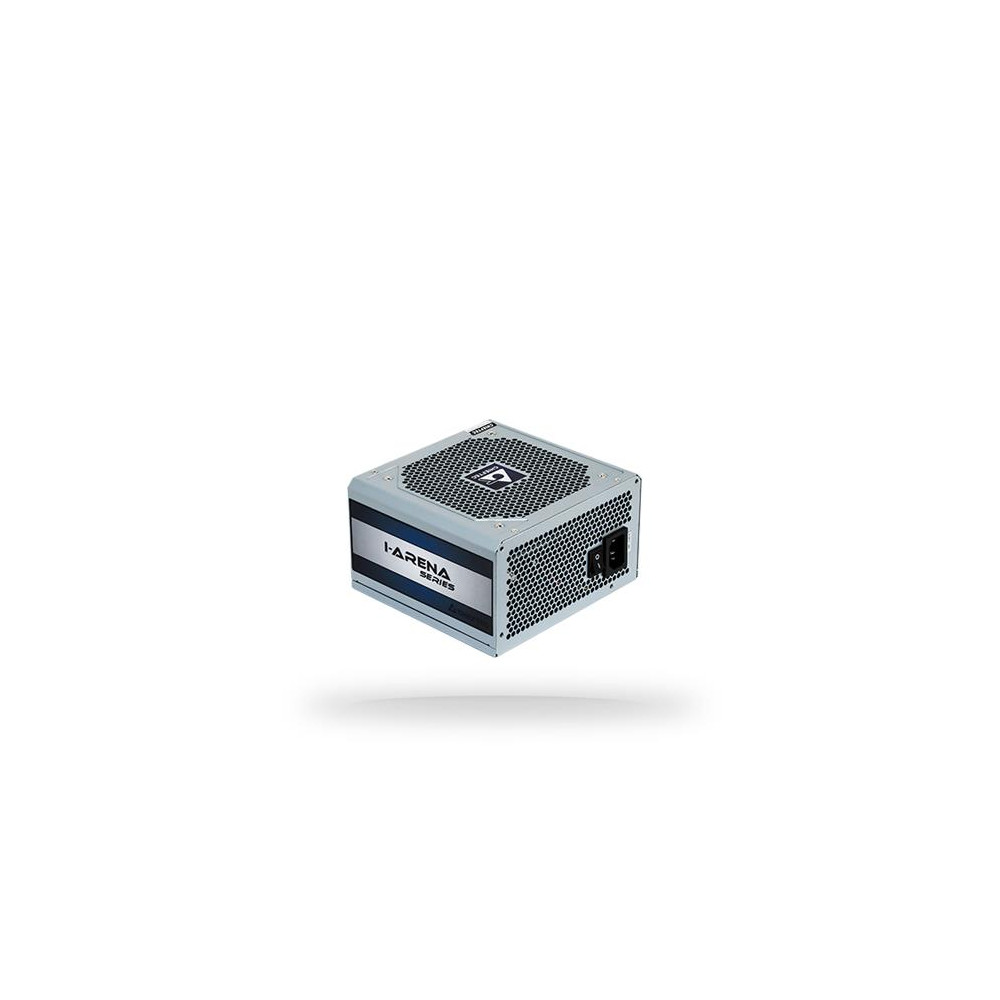

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|GPE-700S

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|GPE-700S

CHIEFTEC
1207546
700 W | 230 V | PC | PS/2 | Fan diameter 120 mm | GPE-700S
Nėra sandėlyje
49,25 €
55,41 €
Sutaupote 6,16 €
Su mokesčiais
Kiekis

Išparduota
Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.

CHIEFTEC
: 1207546
Nėra sandėlyje

Charakteristikos

Garantija
24
Summary
Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12
Vendor Homepage
https://www.chieftec.eu/en/psus/ps-2/iarena-series/gpc-700s.html
Category Code
PSU
CnCode
85044095
Unit Box Height
0.105
Unit Box Length
0.235
Unit Box Width
0.175
Design (Product colour)
Silver
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Weight & dimensions (Width)
140 mm
Units per Shipping Box
1
Unit Calculated Volume
0.004318 cubm
Unit Calculated Weight
1.93 kg
Model name
GPE-700S
Logistics data (Harmonized System (HS) code)
84733020
Power (AC input frequency)
50 Hz
Power (AC input voltage)
230 V
Power (Input current)
6.3 A
Power (Max output current (+3.3V))
22 A
Power (Max output current (+5V))
22 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over voltage/Overload/Short circuit/Under voltage
Power (Total power)
700 W
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (ATX version)
2.3
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Design (Fan diameter)
120 mm
Design (Number of fans)
1 fan(s)
Ports & interfaces (Cabling type)
Non-Modular
Power (Combined power (+3.3V))
130 W
Power (Combined power (+5Vsb))
12.5 W
Power (Power Factor Correction (PFC) type)
Active
Power (Max output current (+12V1))
52.5 A
