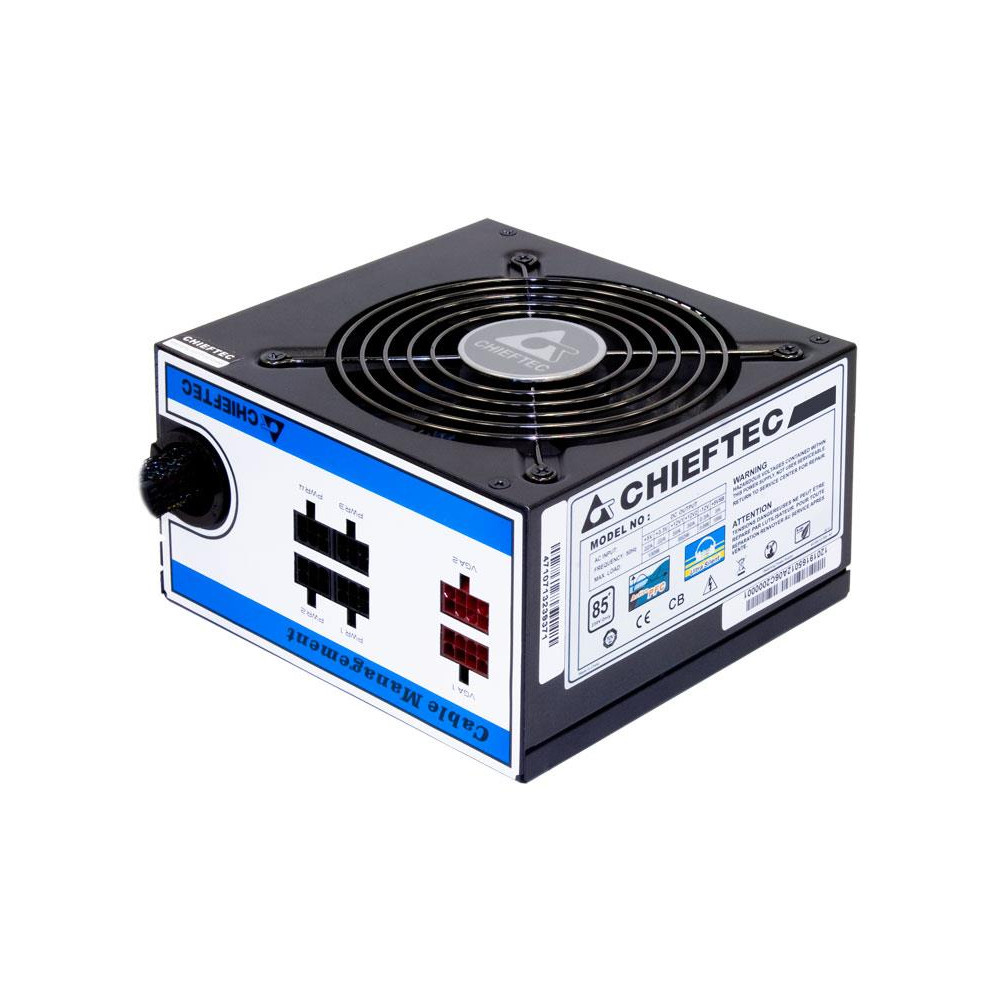

CASE PSU ATX 750W/CTG-750C CHIEFTEC

Charakteristikos

Garantija

24

Summary

Chieftec CTG-750C. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product

Vendor Homepage

https://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html

Category Code

PSU

CnCode

85044095

Unit Box Height

0.1

Unit Box Length

0.25

Unit Box Width

0.19

Units per Shipping Box

1

Unit Calculated Volume

0.00475 cubm

Unit Calculated Weight

2.35 kg

Product Net Weight

1.8 kg

Desktop Computer PSU | Power (AC input frequency)

50 Hz

Desktop Computer PSU | Power (AC input voltage)

230 V

Desktop Computer PSU | Power (Combined power (+12V))

648 W

Desktop Computer PSU | Power (Combined power (+3.3V))

130 W

Desktop Computer PSU | Power (Combined power (+5V))

130 W

Desktop Computer PSU | Power (Input current)

6 A

Desktop Computer PSU | Power (Max output current (+3.3V))

22 A

Desktop Computer PSU | Power (Max output current (+5V))

22 A

Desktop Computer PSU | Power (Max output current (+5Vsb))

3 A

Desktop Computer PSU | Power (Max output current (-12V))

0.3 A

Desktop Computer PSU | Power (Power Factor Correction (PFC) type)

Active

Desktop Computer PSU | Power (Power protection features)

Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage

Desktop Computer PSU | Power (Total power)

750 W

Desktop Computer PSU | Ports & interfaces (Cabling type)

Semi-Modular

Desktop Computer PSU | Ports & interfaces (CPU P4 connector (4-pin))

1

Desktop Computer PSU | Ports & interfaces (Motherboard power connector)

24-pin ATX

Desktop Computer PSU | Ports & interfaces (Number of SATA power connectors)

6

Desktop Computer PSU | Ports & interfaces (PCI Express power connectors (6+2 pin))

2

Desktop Computer PSU | Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

4

Desktop Computer PSU | Performance (ATX version)

2.3

Desktop Computer PSU | Performance (Power supply unit (PSU) form factor)

ATX

Desktop Computer PSU | Performance (Purpose)

PC

Desktop Computer PSU | Design (Cooling type)

Active

Desktop Computer PSU | Design (Fan diameter)

120 mm

Desktop Computer PSU | Design (Fan location)

Top

Desktop Computer PSU | Design (Number of fans)

1 fan(s)

Desktop Computer PSU | Design (Product colour)

Black

Desktop Computer PSU | Certificates (Compliance certificates)

RoHS

Desktop Computer PSU | Packaging data (Package type)

Box

Desktop Computer PSU | Power (Combined power (+5Vsb))

15 W

Desktop Computer PSU | Power (Combined power (-12V))

3.6 W

Desktop Computer PSU | Power (Efficiency)

85 %

Desktop Computer PSU | Power (Power factor)

0.9

Desktop Computer PSU | Ports & interfaces (Floppy drive power connector)

2

Desktop Computer PSU | Performance (80 PLUS certification)

80 PLUS

Desktop Computer PSU | Weight & dimensions (Depth)

140 mm

Desktop Computer PSU | Weight & dimensions (Height)

87 mm

Desktop Computer PSU | Weight & dimensions (Width)

150 mm

Desktop Computer PSU | Performance (Mean time between failures (MTBF))

100000 h

Desktop Computer PSU | Certificates (Certification)

CE, CB, FCC

Desktop Computer PSU | Power (Max output current (+12V1))

35 A

Desktop Computer PSU | Power (Max output current (+12V2))

35 A

Desktop Computer PSU | Ports & interfaces (CPU power connectors (8-pin))

1

Desktop Computer PSU | Ports & interfaces (EPS power connector (8-pin))

Y

Desktop Computer PSU | Logistics data (Harmonized System (HS) code)

84733020
