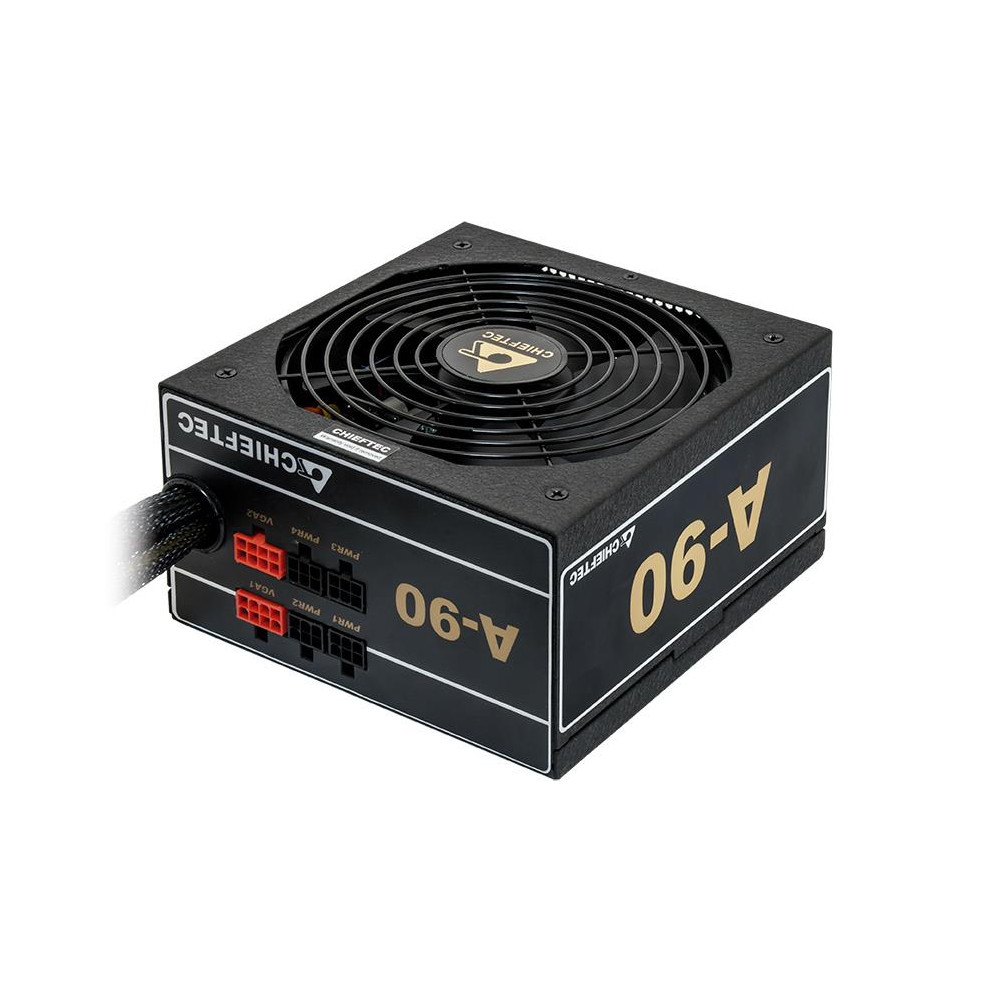

CASE PSU ATX 650W/GDP-650C CHIEFTEC

CASE PSU ATX 650W/GDP-650C CHIEFTEC

CHIEFTEC
1207557
650 W | 200 - 240 V | PC | PS/2 | Fan diameter 140 mm
Nėra sandėlyje
61,59 €
69,33 €
Sutaupote 7,74 €
Su mokesčiais
Kiekis

Išparduota
Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.

CHIEFTEC
: 1207557
Nėra sandėlyje

Charakteristikos

Garantija
24
Summary
Chieftec GDP-650C. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Mean time between failures
Vendor Homepage
https://www.chieftec.eu/en/psus/a-90-serie/gdp-650c.html
Category Code
PSU
CnCode
85044095
Unit Box Height
0.1
Unit Box Length
0.25
Unit Box Width
0.22
Design (Product colour)
Black
Weight & dimensions (Depth)
160 mm
Weight & dimensions (Height)
87 mm
Weight & dimensions (Width)
150 mm
Units per Shipping Box
1
Unit Calculated Volume
0.0055 cubm
Unit Calculated Weight
2.41 kg
Certificates (Compliance certificates)
RoHS
Logistics data (Harmonized System (HS) code)
84733020
Power (AC input frequency)
47 - 63 Hz
Power (AC input voltage)
200 - 240 V
Power (Input current)
5 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
2.5 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Power (Total power)
650 W
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (Floppy drive power connector)
1
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (ATX version)
2.3
Performance (Power supply unit (PSU) form factor)
PS/2
Performance (Purpose)
PC
Design (Fan diameter)
140 mm
Ports & interfaces (Cabling type)
Semi-Modular
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Power (Max output current (+12V1))
53 A
Performance (Mean time between failures (MTBF))
100000 h
