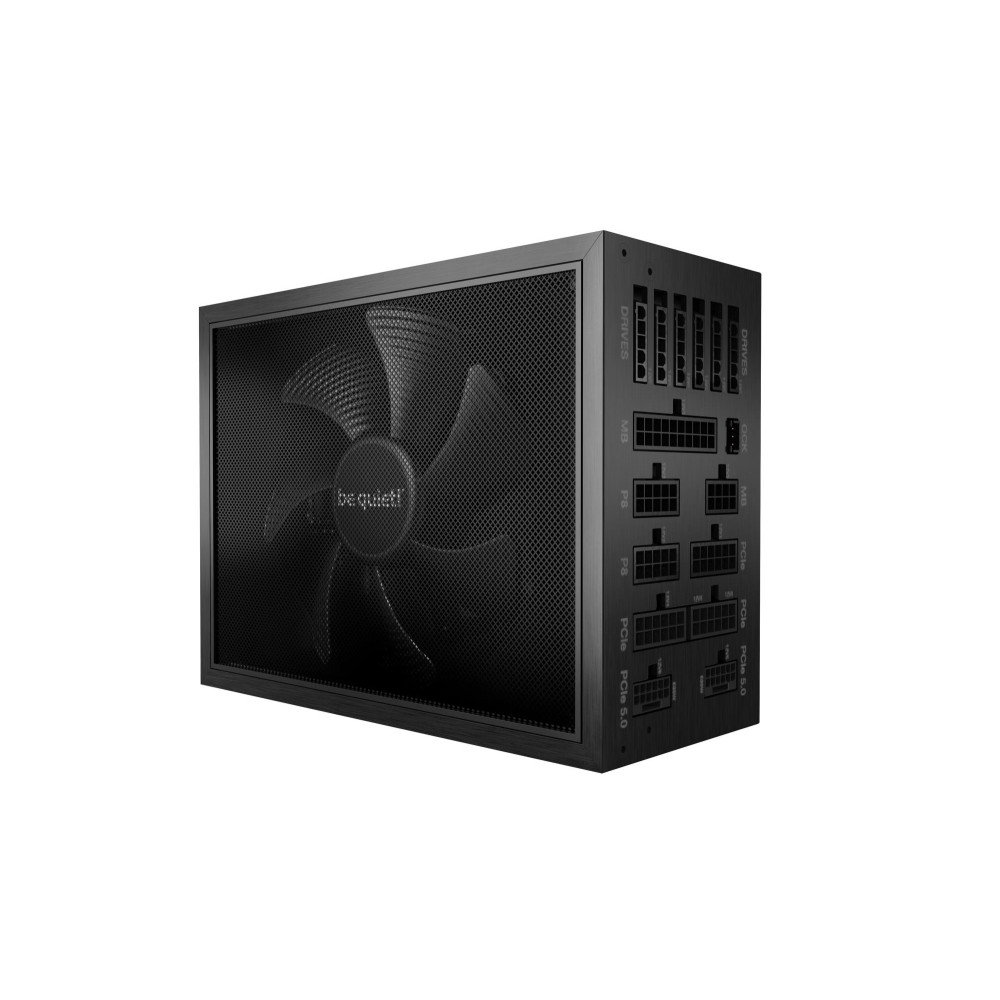

Power Supply|BE QUIET|1600 Watts|Peak Power 1700 Watts|Efficiency 80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|BN332

Prekės ženklas : BE QUIET

Kodas : 1395831

Paskubėkite! liko tik 10 liko prekių sandėlyje.

482,13 €

Su mokesčiais

Kiekis

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.

80 PLUS Titanium efficiency (up to 94.5%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
Full mesh PSU front with funnel-shaped air inlet
Overclocking key switches between six 12V rails and one massive 12V rail
Japanese 105°C capacitors ensure highest stability and reliability
2 PCIe 5.1 12V-2x6 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
Aluminum case and modular individually sleeved cables for magnificent appearance

Prekės ženklas BE QUIET

Kodas : 1395831

Yra sandėlyje : 10 Prekės

Paskubėkite! liko tik 10 liko prekių sandėlyje.

Charakteristikos

Garantija: 24
Summary: be quiet! Dark Power Pro 13 | 1600W. Total power: 1600 W, AC input voltage: 115 - 240 V, Peak power: 1700 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpos
Vendor Homepage: https://www.bequiet.com/en/powersupply/4393
Category Code: PSU
CnCode: 85044030
Unit Box Height: 0.255
Unit Box Length: 0.42
Unit Box Width: 0.152
Design (Product colour): Black
Weight & dimensions (Depth): 200 mm
Weight & dimensions (Height): 86 mm
Weight & dimensions (Weight): 2440 g
Weight & dimensions (Width): 150 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.01628 cubm
Unit Calculated Weight: 6.6 kg
Packaging content (Cables included): CPU,PCIe,Peripheral (Molex),SATA
Certificates (Compliance certificates): CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA/WEEE
Model name: Dark Power Pro 13 1600W
Power (AC input frequency): 50 - 60 Hz
Power (AC input voltage): 115 - 240 V
Power (Efficiency): 94.5 %
Power (Input current): 15 - 9 A
Power (Max output current (+3.3V)): 25 A
Power (Max output current (+5V)): 25 A
Power (Max output current (+5Vsb)): 3.5 A
Power (Max output current (-12V)): 0.5 A
Power (Power protection features): Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power): 1600 W
Ports & interfaces (ATX power connector (20+4 pin)): Yes
Ports & interfaces (Motherboard power connector): 20+4 pin ATX
Ports & interfaces (Number of SATA power connectors): 16
Performance (ATX version): 3.1
Performance (Power supply unit (PSU) form factor): ATX
Performance (Purpose): PC
Design (Cooling type): Active
Design (Fan diameter): 135 mm
Design (Number of fans): 1 fan(s)
Ports & interfaces (Cabling type): Fully-Modular
Ports & interfaces (Motherboard power cable length): 600 mm
Ports & interfaces (Peripheral (Molex) power cable length): 1050/600/750/900 mm
Ports & interfaces (SATA power cable length): 1050/500/600/750/800/900/950 mm
Power (Combined power (+12V)): 1600 W
Power (Combined power (+3.3V)): 150 W
Power (Combined power (+5V)): 150 W
Power (Combined power (+5Vsb)): 17.5 W
Power (Combined power (-12V)): 6 W
Power (Power factor): 0.99
Ports & interfaces (CPU power cable length): 700 mm
Ports & interfaces (PCI Express power cable length): 600 mm
Ports & interfaces (PCI Express power connectors (6+2 pin)): 6
Performance (80 PLUS certification): 80 PLUS Titanium
Power (Max output current (+12V1)): 40 A
Power (Peak power): 1700 W
Packaging data (Package depth): 417 mm
Packaging data (Package height): 152 mm
Packaging data (Package weight): 6900 g
Packaging data (Package width): 253 mm
Ports & interfaces (Number of PATA power connectors): 5
Performance (Bearing technology): FDB
Power (Max output current (+12V2)): 40 A
Power (Hold time): 18 ms
Ports & interfaces (PCI Express connector): Yes
Performance (Mean time between failures (MTBF)): 100000 h
Ports & interfaces (EPS power connector (4+4 pin)): Yes
Ports & interfaces (EPS power connector (8-pin)): Yes
Logistics data (Warranty period): 10 year(s)
Technical details (Sustainability compliance): Yes
Performance (Noise level): 31.1 dB
Technical details (Sustainability certificates): ENERGY STAR/ErP/Triman
Performance (EPS version): 2.92
Logistics data (Products per shipping (inner) case): 2 pc(s)
Logistics data (Shipping (inner) case height): 283 mm
Logistics data (Shipping (inner) case length): 440 mm
Logistics data (Shipping (inner) case width): 325 mm
Packaging content (Cable tie(s) included): Yes
Power (Max output current (+12V3)): 45 A
Power (Max output current (+12V4)): 45 A
Logistics data (Shipping (inner) case net weight): 14600 g
