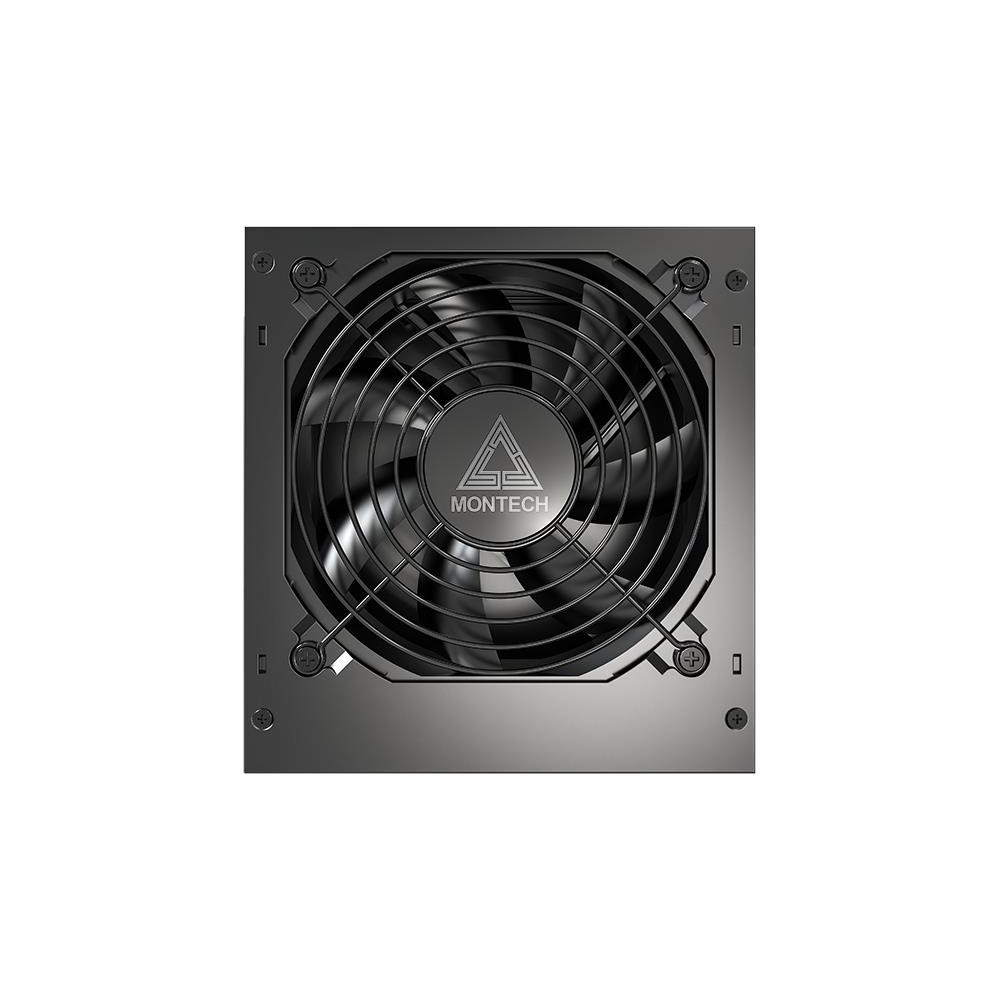

Power Supply|MONTECH|APX 650W|650 W|APX650

Power Supply|MONTECH|APX 650W|650 W|APX650

MONTECH
1445309
650 W | 100 - 240 V | 80 PLUS certification 80 PLUS White | PC | ATX | Fan diameter 120 mm | APX 650W
Paskubėkite! liko tik 16 liko prekių sandėlyje.
56,78 €
Su mokesčiais
Kiekis

Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

APX 650W

Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX.
Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.
APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.
APX power supply is engineered to deliver consistent power across diverse electrical systems.
Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.
Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.

MONTECH
: 1445309
: 16 Prekės
Paskubėkite! liko tik 16 liko prekių sandėlyje.

Charakteristikos

Garantija
60
Summary
Montech APX650. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black,
Vendor Homepage
https://www.montechpc.com/apx-650w
Category Code
PSU
Unit Box Height
0.095
Unit Box Length
0.2
Unit Box Width
0.25
Design (Product colour)
Black
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Width)
150 mm
Units per Shipping Box
1
Unit Calculated Volume
0.00475 cubm
Unit Calculated Weight
1.9 kg
Certificates (Compliance certificates)
CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA
Model name
APX 650W
Operational conditions (Operating temperature (T-T))
0 - 40 C
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Input current)
12 A
Power (Max output current (+12V))
54.1 A
Power (Max output current (+3.3V))
18 A
Power (Max output current (+5V))
18 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
650 W
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Design (Fan diameter)
120 mm
Design (Number of fans)
1 fan(s)
Power (Combined power (+12V))
649.2 W
Power (Combined power (+3.3V))
100 W
Power (Combined power (+5V))
100 W
Power (Combined power (+5Vsb))
2.5 W
Power (Combined power (-12V))
3.6 W
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Performance (80 PLUS certification)
80 PLUS White
Performance (Bearing technology)
HDB
