XC044 | Air | LGA1150/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2066/SAM4/SAM5 | Fan speed 600 - 2200 ± 10% RPM | Air flow 111.2 cfm | TDP 180 Watts | Noise level, max 21.8 dB | Dimensions 123 x 105 x 125mm | Weight 0.685 kg

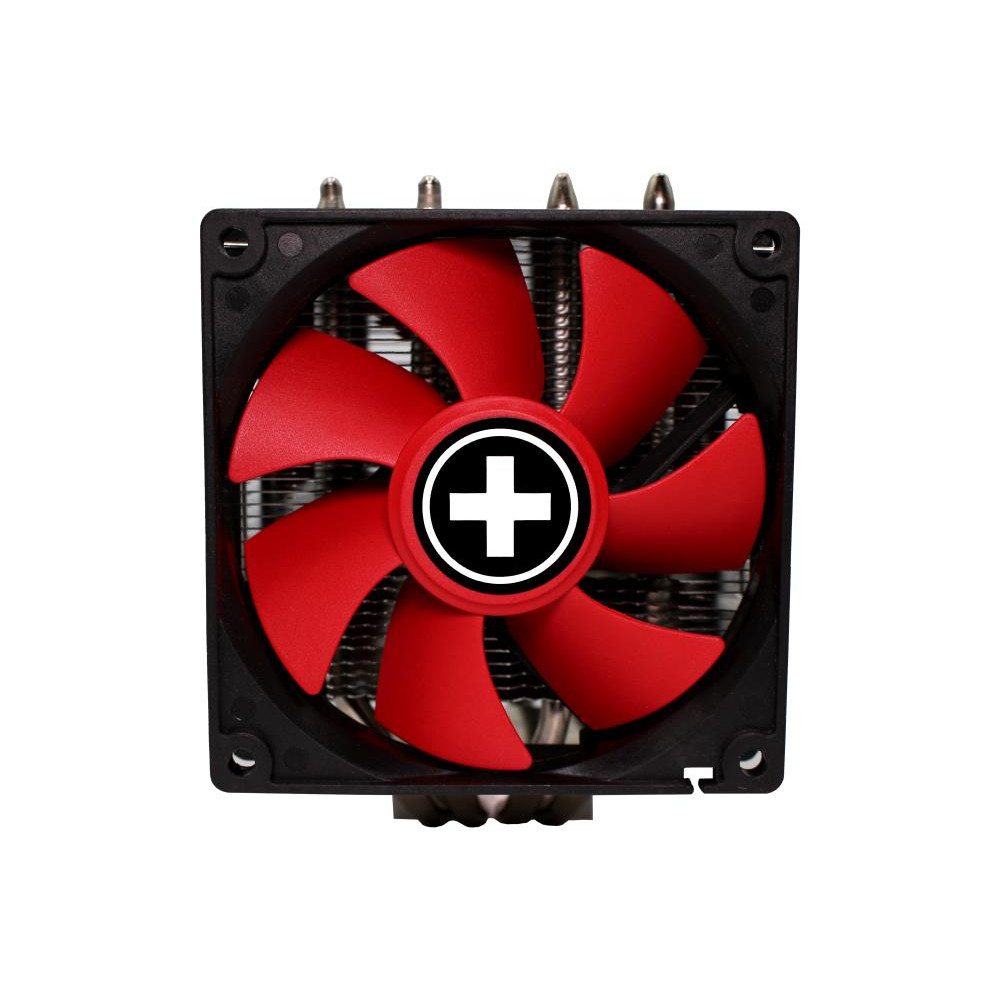

The compact twin tower cooler M504D is the new multi socket solution of the Performance C series. Its 4 extremely efficient heatpipes conduct heat up to 200W to the innumerable cooling fins. Thus, it is predestined for powerful multi-core processors. Due to the direct contact of the heatpipes, the heat transfer between CPU and cooler is highly efficient and very even.
With its multi socket, the cooler can be used for all current Intel and AMD sockets. Included in the delivery are - besides the double heat sink and the two 92mm PWM fans - mounting brackets for the sockets LGA1150/1155/1156/2011 and AMD AM4/FM2+/FM1/ FM2/AM2/AM2+/AM3, an illustrated manual, as well as a tube of thermal past
Two heat sinks with fin design ensure the efficient cooling of the CPU and all surrounding components
Two 92mm PWM fans, liquid bearing
Four 6mm copper heatpipes for a maximum heat dissipation
The slight protrusion of the fans on the top and bottom sides help to avoid hot spots
The fans can be mounted on both sides of the heat sinks
