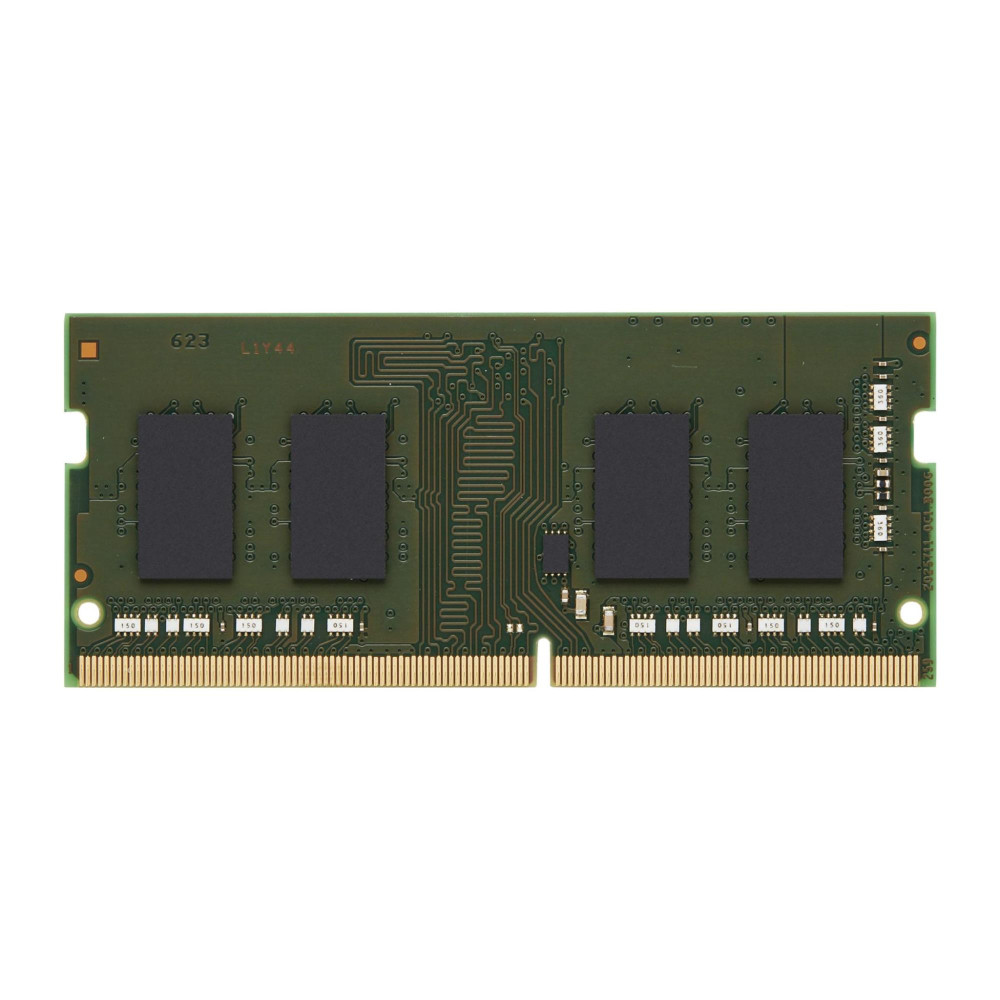

NB MEMORY 16GB PC25600 DDR4/SO KVR32S22S8/16 KINGSTON
ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
- via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Charakteristikos
- Garantija
- X
- Summary
- Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22
- Vendor Homepage
- https://www.kingston.com/en
- Category Code
- MEB
- Unit Box Height
- 0.01
- Unit Box Length
- 0.08
- Unit Box Width
- 0.045
- Weight & dimensions (Height)
- 30 mm
- Weight & dimensions (Width)
- 69.6 mm
- Model
- KVR32S22S8/16
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 3.6E-05 cubm
- Unit Calculated Weight
- 0.02 kg
- Logistics data (Harmonized System (HS) code)
- 84733020
- Features (Component for)
- Laptop
- Features (Country of origin)
- Taiwan
- Features (ECC)
- No
- Features (Buffered memory type)
- Unregistered (unbuffered)
- Features (CAS latency)
- 22
- Features (Internal memory)
- 16 GB
- Features (Internal memory type)
- DDR4
- Features (Memory form factor)
- 260-pin SO-DIMM
- Features (Memory layout (modules x size))
- 1 x 16 GB
- Features (Memory data transfer rate)
- 3200 MT/s
