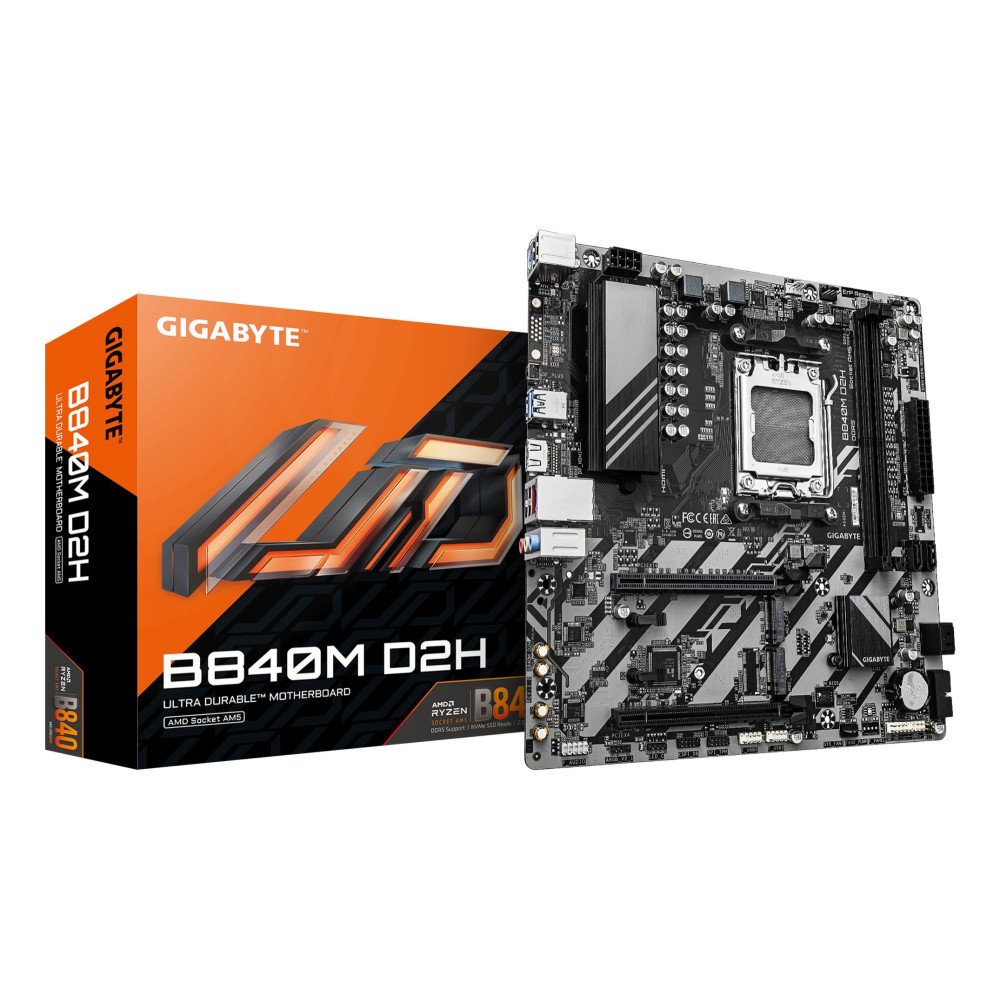

Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

Charakteristikos

Garantija

36

Summary

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Seri

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBA

Unit Box Height

0.06

Unit Box Length

0.26

Unit Box Width

0.27

Processor (Processor manufacturer)

AMD

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

244 mm

Units per Shipping Box

10

Unit Calculated Volume

0.004669 cubm

Unit Calculated Weight

1.04 kg

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Memory (Maximum internal memory)

128 GB

Network (Wi-Fi)

No

Battery (Number of battery cells)

1

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

1026.4 g

Packaging data (Package width)

265 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Other features (Weight)

940 g

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Network (LAN controller)

Realtek RTL8125

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Dark brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD B840

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

7600 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

2

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Cooling type)

Passive

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

1

Rear panel I/O ports (Line-in)

Yes

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Features (Audio chip)

Realtek ALC897

Graphics (DirectX version)

12.0

Internal I/O (Number of EPS power connectors (8-pin))

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (RGB LED pin header)

Yes

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2580

Internal I/O (Number of RGB LED pin headers)

3

Memory (Maximum internal memory per slot)

64 GB

Expansion slots (2nd M.2 highest PCI Express generation)

3.0

Expansion slots (2nd M.2 largest key size)

2280

Internal I/O (Number of water pump connectors)

1
