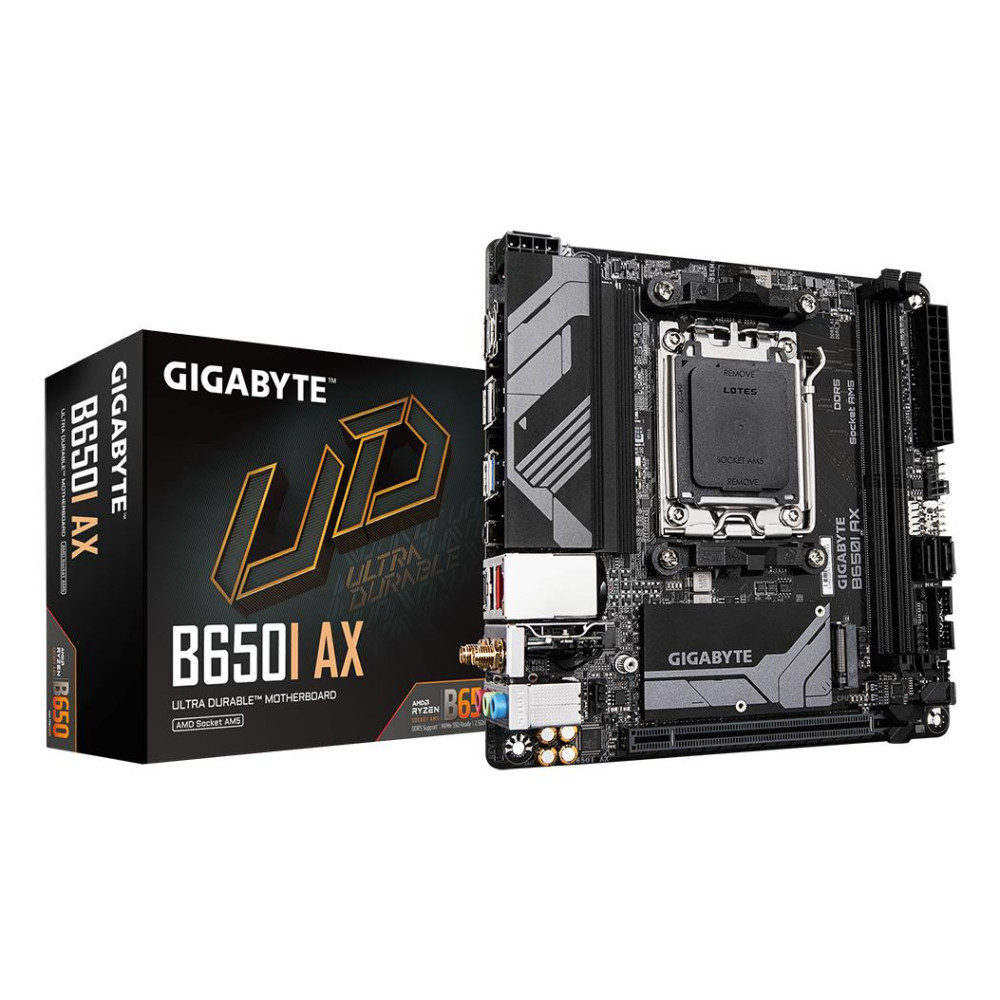

Mainboard|GIGABYTE|AMD B650|Socket AM5|mini ITX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|B650IAX

Charakteristikos

Garantija

36

Summary

GIGABYTE B650I AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+1 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 70

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBA

Unit Box Height

0.065

Unit Box Length

0.18

Unit Box Width

0.225

Processor (Processor manufacturer)

AMD

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Weight & dimensions (Depth)

170 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

170 mm

Units per Shipping Box

1

Unit Calculated Volume

0.002632 cubm

Unit Calculated Weight

0.77 kg

Network (Bluetooth version)

5.3

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Memory (Maximum internal memory)

128 GB

Network (Wi-Fi)

Yes

Battery (Number of battery cells)

1

Network (WLAN controller model)

Realtek RTL8852CE

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

180 mm

Packaging data (Package height)

65 mm

Packaging data (Package weight)

879 g

Packaging data (Package width)

222 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Network (LAN controller)

Realtek RTL8125

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD B650

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

mini ITX

Features (PC health monitoring)

Fan/Temperature/Voltage

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

6400 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

3

Storage controllers (RAID levels)

0/1

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

2

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

3

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

2

Internal I/O (Number of chassis fan connectors)

2

Rear panel I/O ports (Line-in)

Yes

Features (Audio chip)

Realtek ALC897

Internal I/O (Number of EATX power connectors)

1

Graphics (DirectX version)

12.0

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (RGB LED pin header)

Yes

Rear panel I/O ports (DisplayPorts quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Internal I/O (Number of RGB LED pin headers)

2

Rear panel I/O ports (DisplayPort version)

1.4

Memory (Maximum internal memory per slot)

64 GB

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)

1

Graphics (Discrete graphics support)

Yes

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

2

Packaging content (Antenna included)

Yes
