Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber

Charakteristikos

Garantija

36

Summary

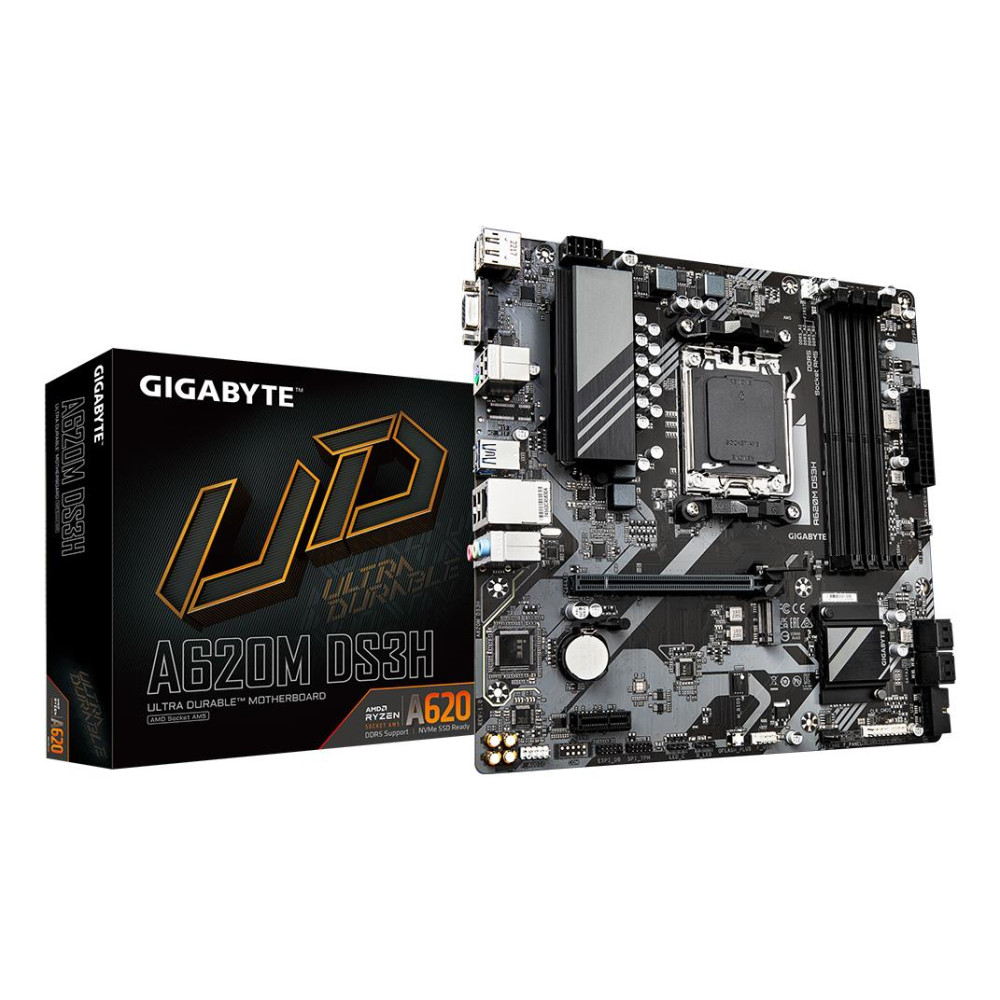

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 70

Vendor Homepage

https://www.gigabyte.com

Category Code

MBA

Unit Box Height

0.265

Unit Box Length

0.27

Unit Box Width

0.055

Processor (Processor manufacturer)

AMD

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

244 mm

Units per Shipping Box

10

Unit Calculated Volume

0.00471 cubm

Unit Calculated Weight

1.02 kg

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

192 GB

Network (Wi-Fi)

No

Battery (Number of battery cells)

1

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

1067 g

Packaging data (Package width)

265 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD A620

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

AMD Ryzen 7000 Series

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

7600 MHz

Memory (Supported memory clock speeds)

4800/5200/5600/6000/6200/6400/6800/7000/7200/7600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

4

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

3

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

1

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Rear panel I/O ports (VGA (D-Sub) ports quantity)

1

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

Expansion slots (PCI Express x1 slots)

1

Expansion slots (PCI Express x16 slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Storage controllers (Number of HDDs supported)

1

Graphics (DirectX version)

12.0

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Internal I/O (Total number of SATA connectors)

4

Internal I/O (RGB LED pin header)

Yes

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (DisplayPort version)

1.4

Processor (Maximum internal memory supported by processor)

192 GB
