Mainboard|ASUS|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDis

Charakteristikos

Garantija

36

Summary

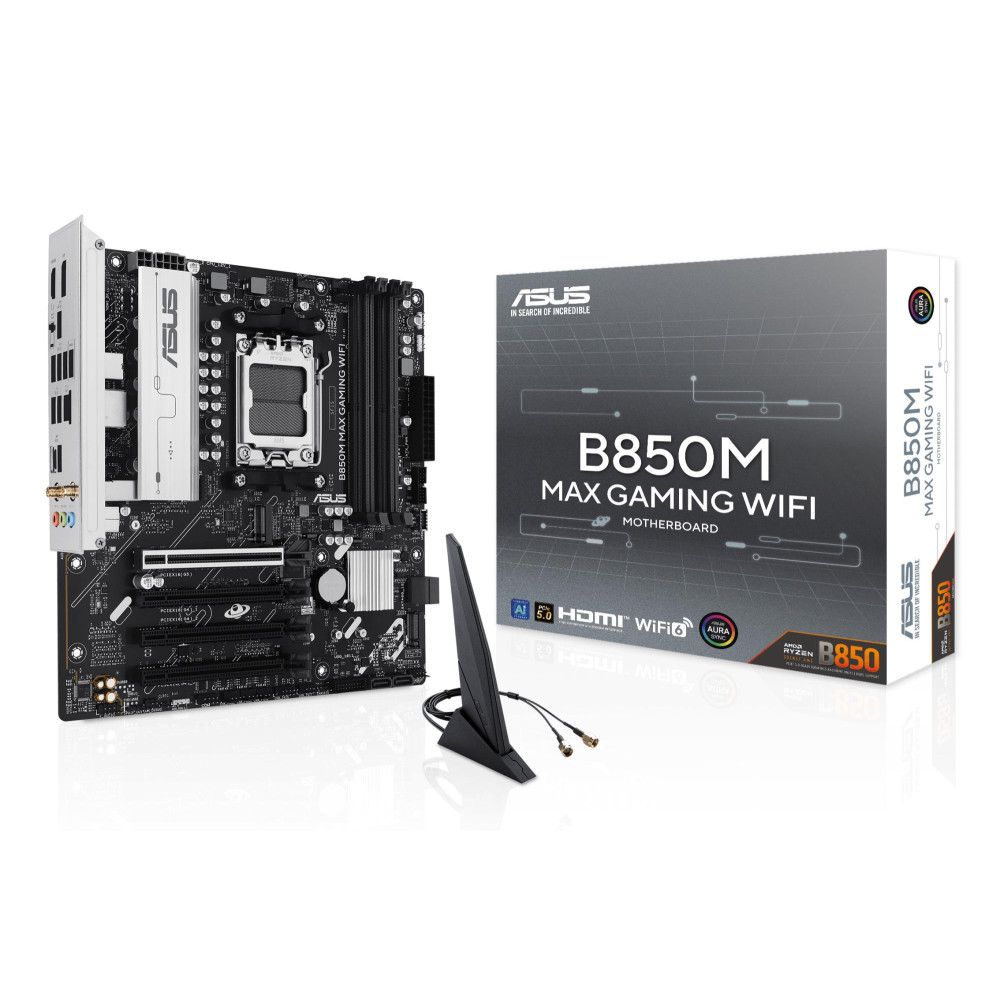

ASUS B850M MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, M

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/others/b850m-max-gaming-wifi/

Category Code

MBA

Unit Box Height

0.27

Unit Box Length

0.275

Unit Box Width

0.07

Processor (Processor manufacturer)

AMD

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 6 (802.11ax)

Network (Wi-Fi standards)

Wi-Fi 6 (802.11ax)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Width)

244 mm

Model

B850M MAX GAMING WIFI

Units per Shipping Box

10

Unit Calculated Volume

0.006259 cubm

Unit Calculated Weight

1.52 kg

Network (Bluetooth version)

5.4

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

256 GB

Network (Wi-Fi)

Yes

Network (Ethernet LAN)

Yes

Processor (Processor socket)

Socket AM5

Packaging data (Package depth)

275 mm

Packaging data (Package height)

67.5 mm

Packaging data (Package weight)

1383 g

Packaging data (Package width)

275 mm

Other features (Weight)

859 g

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Product colour)

Black

Features (Windows operating systems supported)

Windows 10 x64/Windows 11

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

AMD B850

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

7

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

3

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

5

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

3

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Features (Cooling type)

Passive

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of COM connectors)

1

Rear panel I/O ports (Line-in)

Yes

Internal I/O (S/PDIF out connector)

Yes

Expansion slots (PCI Express x16 (Gen 4.x) slots)

3

Internal I/O (RGB LED pin header)

Yes

Rear panel I/O ports (DisplayPorts quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Internal I/O (Number of RGB LED pin headers)

3

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (WiFi-AP antenna jack)

1

Packaging content (Antenna included)

Yes

Expansion slots (3rd M.2 highest PCI Express generation)

3.0

Expansion slots (3rd M.2 largest key size)

2280
