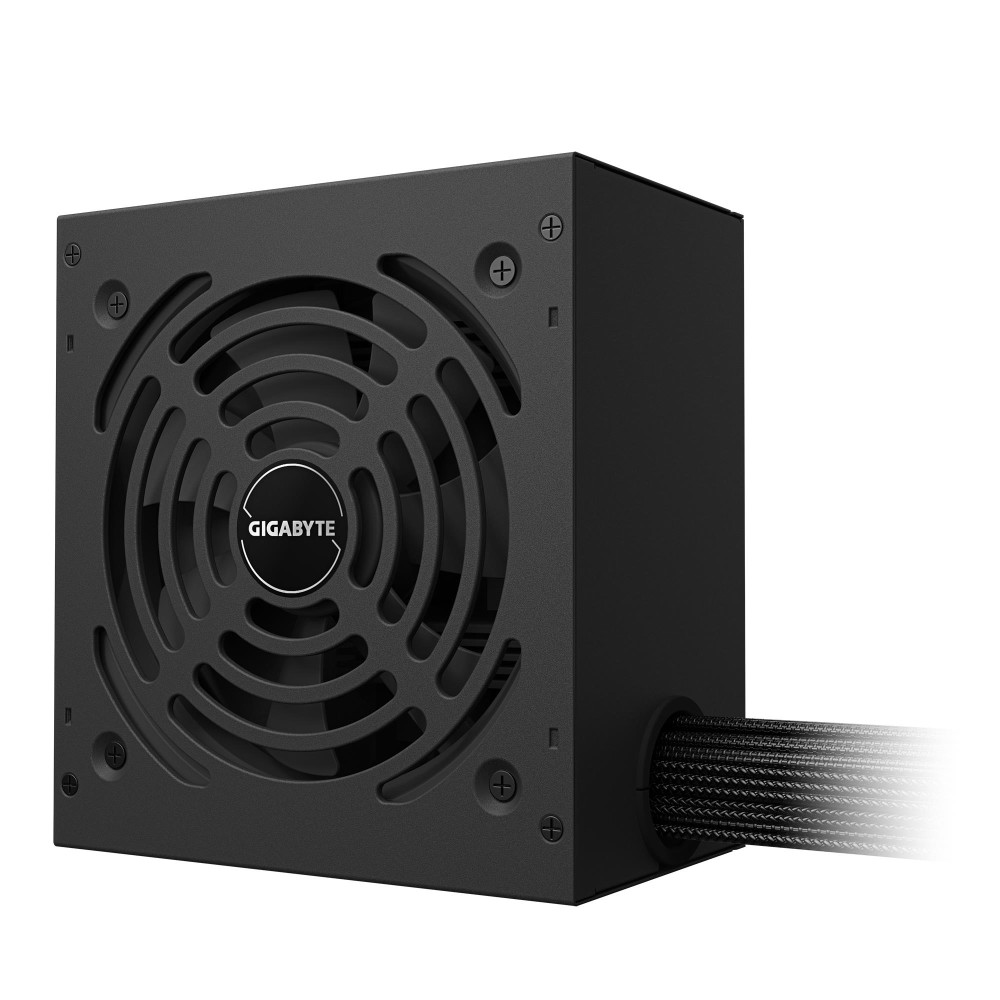

Power Supply|GIGABYTE|GP-P650G PG5|ATX|PC|100 - 240 V|650 W|GP-P650GPG5
GIGABYTE P650G PCIE 5.1 (GP-P650G)
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
Charakteristikos
- Garantija
- 36
- Summary
- GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable le
- Vendor Homepage
- gigabyte.com/Power-Supply/GP-P650G-PG5 kf
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.12
- Unit Box Length
- 0.26
- Unit Box Width
- 0.215
- Design (Product colour)
- Black
- Weight & dimensions (Depth)
- 150 mm
- Weight & dimensions (Height)
- 86 mm
- Weight & dimensions (Weight)
- 1760 g
- Weight & dimensions (Width)
- 140 mm
- Units per Shipping Box
- 5
- Unit Calculated Volume
- 0.007986 cubm
- Unit Calculated Weight
- 2.15 kg
- Model name
- GP-P650G PG5
- Power (AC input frequency)
- 50/60 Hz
- Power (AC input voltage)
- 100 - 240 V
- Power (Input current)
- 10 - 6 A
- Power (Max output current (+12V))
- 54.2 A
- Power (Max output current (+3.3V))
- 18 A
- Power (Max output current (+5V))
- 18 A
- Power (Max output current (+5Vsb))
- 18 A
- Power (Max output current (-12V))
- 0.3 A
- Power (Power protection features)
- Over power/Overcharge/Short circuit/Under voltage
- Power (Total power)
- 650 W
- Ports & interfaces (ATX power connector (20+4 pin))
- Yes
- Ports & interfaces (CPU power connector (4+4 pin))
- Yes
- Ports & interfaces (Floppy disk drive connector)
- Yes
- Ports & interfaces (Motherboard power connector)
- 20+4 pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 6
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 3
- Performance (ATX version)
- 3.1
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (Cooling type)
- Active
- Design (Fan diameter)
- 120 mm
- Design (Fan location)
- Top
- Design (Number of fans)
- 1 fan(s)
- Design (On/off switch)
- Yes
- Ports & interfaces (Cabling type)
- Non-Modular
- Ports & interfaces (CPU P4 connector (4-pin))
- 1
- Ports & interfaces (Motherboard power cable length)
- 600 mm
- Ports & interfaces (Peripheral (Molex) power cable length)
- 150 mm
- Ports & interfaces (SATA power cable length)
- 120/500 mm
- Power (Combined power (+12V))
- 650 W
- Power (Combined power (+3.3V))
- 90 W
- Power (Combined power (+5V))
- 650 W
- Power (Combined power (+5Vsb))
- 15 W
- Power (Combined power (-12V))
- 3.6 W
- Power (Power Factor Correction (PFC) type)
- Active
- Ports & interfaces (CPU power cable length)
- 600 mm
- Ports & interfaces (PCI Express power cable length)
- 500 mm
- Ports & interfaces (PCI Express power connectors (6+2 pin))
- 2
- Performance (80 PLUS certification)
- 80 PLUS Gold
- Packaging data (Package type)
- Box
- Packaging data (Package depth)
- 110 mm
- Packaging data (Package height)
- 180 mm
- Packaging data (Package weight)
- 1920 g
- Packaging data (Package width)
- 260 mm
- Performance (Bearing technology)
- HYB
- Performance (Mean time between failures (MTBF))
- 100000 h
- Power (Maximum input current (@220V))
- 6 A
- Power (Power Good signal delay range)
- 100 - 150 ms
- Logistics data (Warranty period)
- 5 year(s)
- Power (Maximum input current (@110V))
- 10 A
