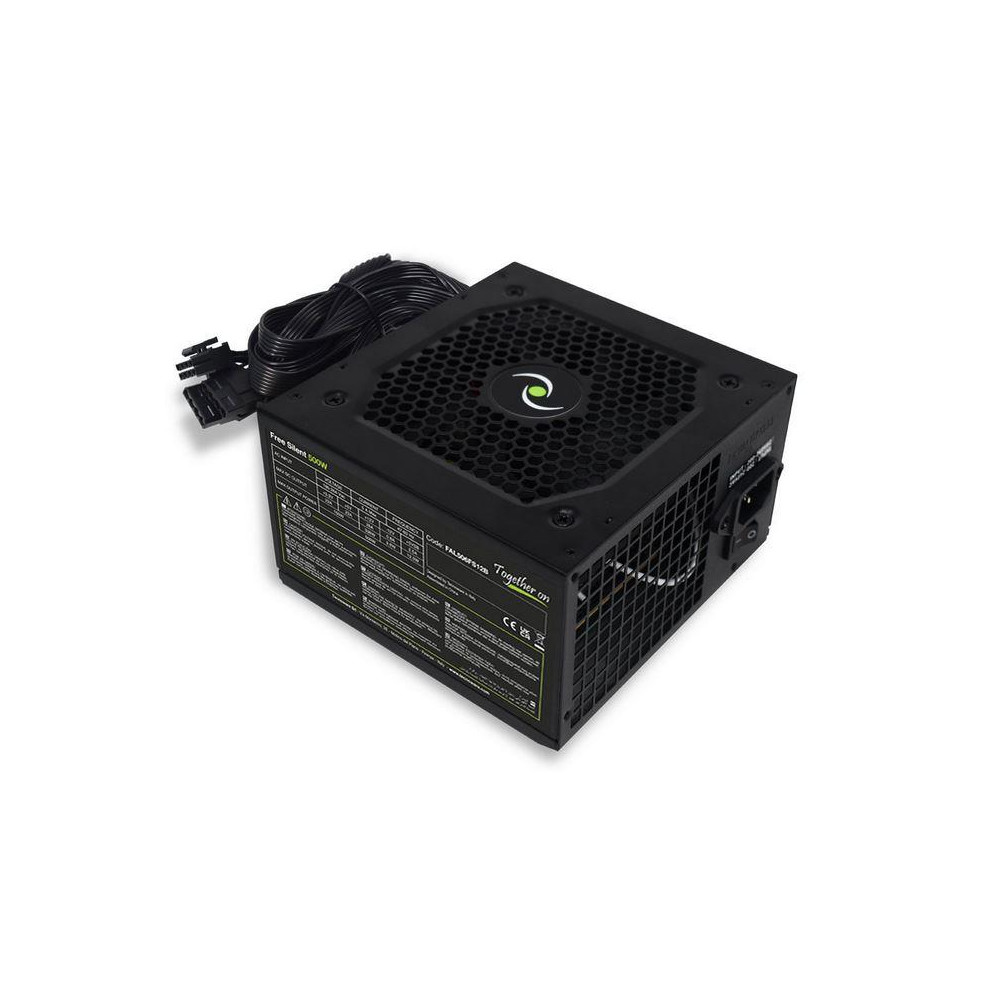

Power Supply|TECNOWARE|FREE SILENT 500W|ATX|PC|180 - 264 V|500 W|FAL506FS12B
- Inner power supply for Computer
- Input voltage 230 Vac 50Hz
- 12 cm silent cooling fan
- Fan speed temperature control
- Overvoltage protection
- Overload protection
- Short-circuit protection
- High MTBF ( >100.000 hours)
- High reliability
- High efficiency
Charakteristikos
- Garantija
- 24
- Summary
- Tecnoware Free Silent. Total power: 500 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Cooling type: Active, Fan dia
- Vendor Homepage
- https://www.tecnoware.com/Prodotti/FAL506FS12B/free-silent-500w-12-cm-psu-bulk.aspx
- Category Code
- PSU
- CnCode
- 85044095
- Unit Box Height
- 0.098
- Unit Box Length
- 0.2
- Unit Box Width
- 0.155
- Design (Product colour)
- Black
- Weight & dimensions (Depth)
- 140 mm
- Weight & dimensions (Height)
- 85 mm
- Weight & dimensions (Weight)
- 1000 g
- Weight & dimensions (Width)
- 150 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.003038 cubm
- Unit Calculated Weight
- 0.9 kg
- Certificates (Certification)
- CE (2014/35/UE EMC 2014/30/UE)
- Certificates (Compliance certificates)
- RoHS
- Model name
- FREE SILENT 500W
- Operational conditions (Operating relative humidity (H-H))
- 0 - 95 %
- Operational conditions (Operating temperature (T-T))
- 0 - 40 C
- Operational conditions (Storage temperature (T-T))
- -15 - 40 C
- Power (AC input frequency)
- 47 - 63 Hz
- Power (AC input voltage)
- 180 - 264 V
- Power (Efficiency)
- 86 %
- Power (Input current)
- 5 A
- Power (Max output current (+12V))
- 28 A
- Power (Max output current (+3.3V))
- 22 A
- Power (Max output current (+5V))
- 22 A
- Power (Max output current (+5Vsb))
- 2.5 A
- Power (Max output current (-12V))
- 0.8 A
- Power (Power protection features)
- Over voltage/Overload/Short circuit
- Power (Total power)
- 500 W
- Ports & interfaces (ATX power connector (20+4 pin))
- Yes
- Ports & interfaces (CPU power connector (4+4 pin))
- Yes
- Ports & interfaces (Floppy disk drive connector)
- Yes
- Ports & interfaces (Floppy drive power connector)
- 1
- Ports & interfaces (Motherboard power connector)
- 20+4 pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 2
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 2
- Performance (ATX version)
- 2.01
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (Cooling type)
- Active
- Design (Fan diameter)
- 120 mm
- Design (Fan location)
- Top
- Design (Number of fans)
- 1 fan(s)
- Design (On/off switch)
- Yes
- Other features (Operating altitude)
- 0 - 3000 m
