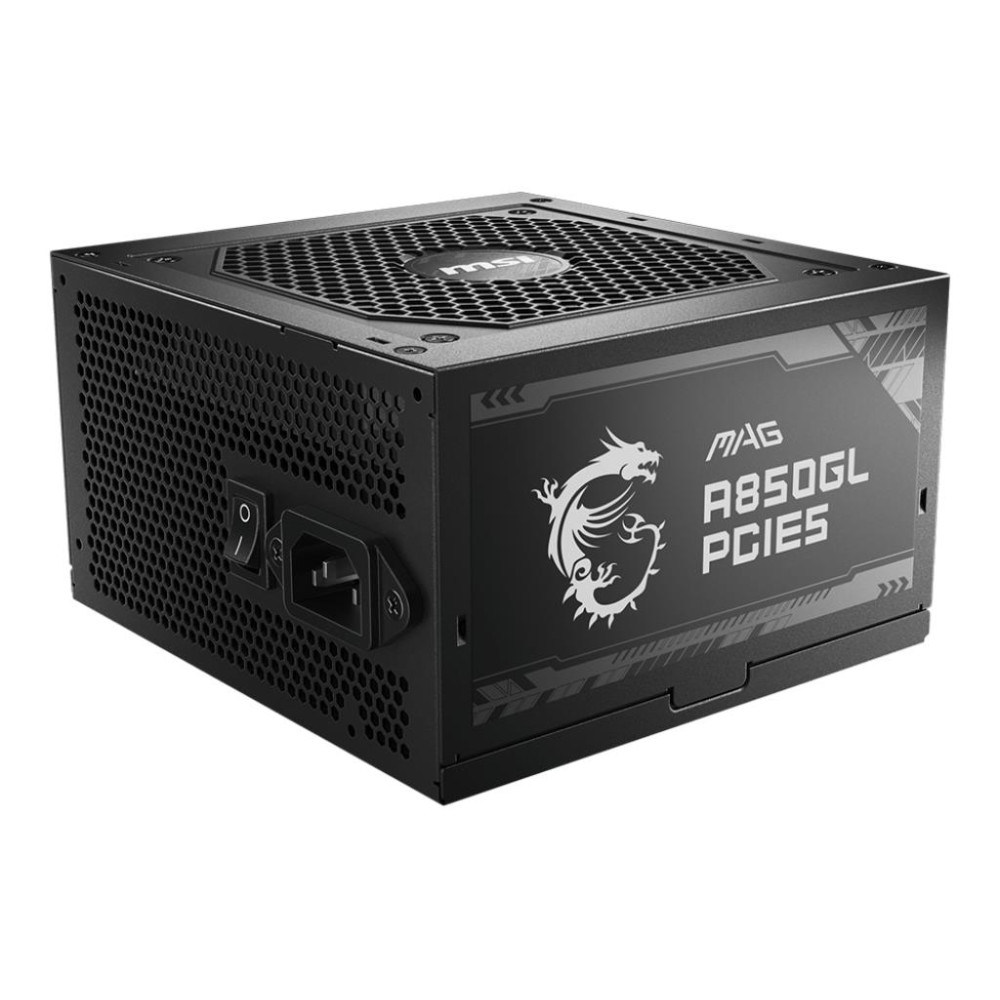

Power Supply|MSI|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MAGA850GLPCIE5
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Charakteristikos
- Garantija
- 24
- Summary
- MSI MAG A850GL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) fo
- Vendor Homepage
- https://www.msi.com/Power-Supply/MAG-A850GL-PCIE5/Overview
- Category Code
- PSU
- Unit Box Height
- 0.225
- Unit Box Length
- 0.305
- Unit Box Width
- 0.128
- Design (Product colour)
- Black
- Weight & dimensions (Depth)
- 140 mm
- Weight & dimensions (Height)
- 86 mm
- Weight & dimensions (Width)
- 150 mm
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.008784 cubm
- Unit Calculated Weight
- 2.83 kg
- Model name
- MAG A850GL PCIE5
- Logistics data (Harmonized System (HS) code)
- 84733020
- Power (AC input frequency)
- 47 - 63 Hz
- Power (AC input voltage)
- 100 - 240 V
- Power (Efficiency)
- 90 %
- Power (Max output current (+12V))
- 70.5 A
- Power (Max output current (+3.3V))
- 20 A
- Power (Max output current (+5V))
- 20 A
- Power (Max output current (+5Vsb))
- 2.5 A
- Power (Max output current (-12V))
- 0.3 A
- Power (Power protection features)
- Over current/Over power/Over voltage/Overheating/Short circuit
- Power (Total power)
- 850 W
- Ports & interfaces (ATX power connector (20+4 pin))
- No
- Ports & interfaces (CPU power connector (4+4 pin))
- Yes
- Ports & interfaces (Motherboard power connector)
- 20+4 pin ATX
- Ports & interfaces (Number of SATA power connectors)
- 8
- Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
- 4
- Performance (Power supply unit (PSU) form factor)
- ATX
- Performance (Purpose)
- PC
- Design (Cooling type)
- Active
- Design (Fan diameter)
- 120 mm
- Design (Number of fans)
- 1 fan(s)
- Design (On/off switch)
- Yes
- Ports & interfaces (Cabling type)
- Fully-Modular
- Ports & interfaces (Motherboard power cable length)
- 600 mm
- Power (Combined power (+12V))
- 846 W
- Power (Combined power (+3.3V))
- 110 W
- Power (Combined power (+5V))
- 110 W
- Power (Combined power (+5Vsb))
- 12.5 W
- Power (Combined power (-12V))
- 3.6 W
- Power (Power Factor Correction (PFC) type)
- Active
- Ports & interfaces (PCI Express power connectors (6+2 pin))
- 4
- Performance (80 PLUS certification)
- 80 PLUS Gold
- Packaging data (Package type)
- Box
- Design (Illumination)
- No
- Power (Maximum input current (@220V))
- 4 A
- Ports & interfaces (EPS power connector (4+4 pin))
- Yes
- Ports & interfaces (EPS power connector (8-pin))
- No
- Ports & interfaces (ATX Power connector (24-pin))
- No
- Power (Maximum input current (@110V))
- 8 A
