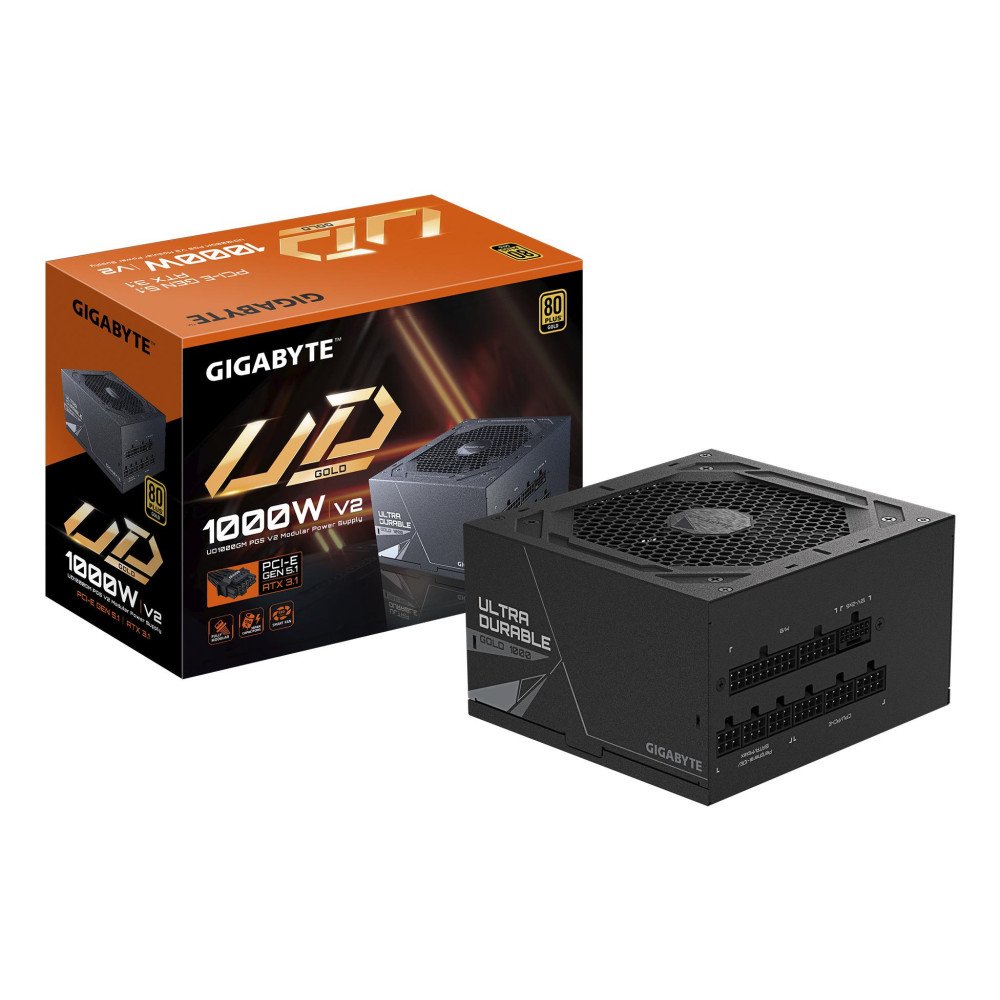

Power Supply|GIGABYTE|GP-UD1000GM|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|GP-UD1000GMPG5V2

Charakteristikos

Garantija

36

Summary

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin A

Vendor Homepage

https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5-rev-20 kf

Category Code

PSU

CnCode

85044095

Unit Box Height

0.21

Unit Box Length

0.12

Unit Box Width

0.255

Units per Shipping Box

5

Unit Calculated Volume

0.007812 cubm

Unit Calculated Weight

2.7 kg

Model name

GP-UD1000GM

Product Net Weight

2.5 kg

Desktop Computer PSU | Power (AC input frequency)

50/60 Hz

Desktop Computer PSU | Power (AC input voltage)

100 - 240 V

Desktop Computer PSU | Power (Combined power (+12V))

1000 W

Desktop Computer PSU | Power (Combined power (+3.3V))

125 W

Desktop Computer PSU | Power (Combined power (+5V))

125 W

Desktop Computer PSU | Power (Input current)

15 - 6.5 A

Desktop Computer PSU | Power (Max output current (+12V))

83.3 A

Desktop Computer PSU | Power (Max output current (+3.3V))

25 A

Desktop Computer PSU | Power (Max output current (+5V))

25 A

Desktop Computer PSU | Power (Max output current (+5Vsb))

3 A

Desktop Computer PSU | Power (Max output current (-12V))

0.3 A

Desktop Computer PSU | Power (Power Factor Correction (PFC) type)

Active

Desktop Computer PSU | Power (Power protection features)

Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Desktop Computer PSU | Power (Total power)

1000 W

Desktop Computer PSU | Ports & interfaces (Cabling type)

Fully-Modular

Desktop Computer PSU | Ports & interfaces (CPU power cable length)

600 mm

Desktop Computer PSU | Ports & interfaces (Motherboard power cable length)

610 mm

Desktop Computer PSU | Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Desktop Computer PSU | Ports & interfaces (Number of SATA power connectors)

8

Desktop Computer PSU | Ports & interfaces (PCI Express connector)

Y

Desktop Computer PSU | Ports & interfaces (PCI Express power cable length)

700 mm

Desktop Computer PSU | Ports & interfaces (PCI Express power connectors (6+2 pin))

4

Desktop Computer PSU | Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

3

Desktop Computer PSU | Performance (ATX version)

3.1

Desktop Computer PSU | Performance (Bearing technology)

HYB

Desktop Computer PSU | Performance (Power supply unit (PSU) form factor)

ATX

Desktop Computer PSU | Performance (Purpose)

PC

Desktop Computer PSU | Design (Cooling type)

Active

Desktop Computer PSU | Design (Fan diameter)

120 mm

Desktop Computer PSU | Design (Number of fans)

1 fan(s)

Desktop Computer PSU | Design (On/off switch)

Y

Desktop Computer PSU | Design (Product colour)

Black

Desktop Computer PSU | Packaging data (Package depth)

269 mm

Desktop Computer PSU | Packaging data (Package height)

211 mm

Desktop Computer PSU | Packaging data (Package type)

Box

Desktop Computer PSU | Packaging data (Package weight)

2640 g

Desktop Computer PSU | Packaging data (Package width)

618 mm

Desktop Computer PSU | Power (Combined power (+5Vsb))

15 W

Desktop Computer PSU | Power (Combined power (-12V))

3.6 W

Desktop Computer PSU | Power (Efficiency)

90 %

Desktop Computer PSU | Power (Power factor)

0.9

Desktop Computer PSU | Ports & interfaces (Floppy drive power connector)

1

Desktop Computer PSU | Performance (80 PLUS certification)

80 PLUS Gold

Desktop Computer PSU | Weight & dimensions (Depth)

140 mm

Desktop Computer PSU | Weight & dimensions (Height)

86 mm

Desktop Computer PSU | Weight & dimensions (Width)

150 mm

Desktop Computer PSU | Ports & interfaces (SATA power cable length)

150/600 mm

Desktop Computer PSU | Weight & dimensions (Weight)

2480 g

Desktop Computer PSU | Ports & interfaces (CPU power connector (4+4 pin))

Y

Desktop Computer PSU | Performance (Mean time between failures (MTBF))

100000 h

Desktop Computer PSU | Power (Hold time)

16 ms

Desktop Computer PSU | Ports & interfaces (Number of EPS connectors)

2

Desktop Computer PSU | Ports & interfaces (Peripheral (Molex) power cable length)

120/150/500 mm

Desktop Computer PSU | Logistics data (Warranty period)

10 year(s)

Desktop Computer PSU | Ports & interfaces (PCI Express power connectors (16-pin))

1
