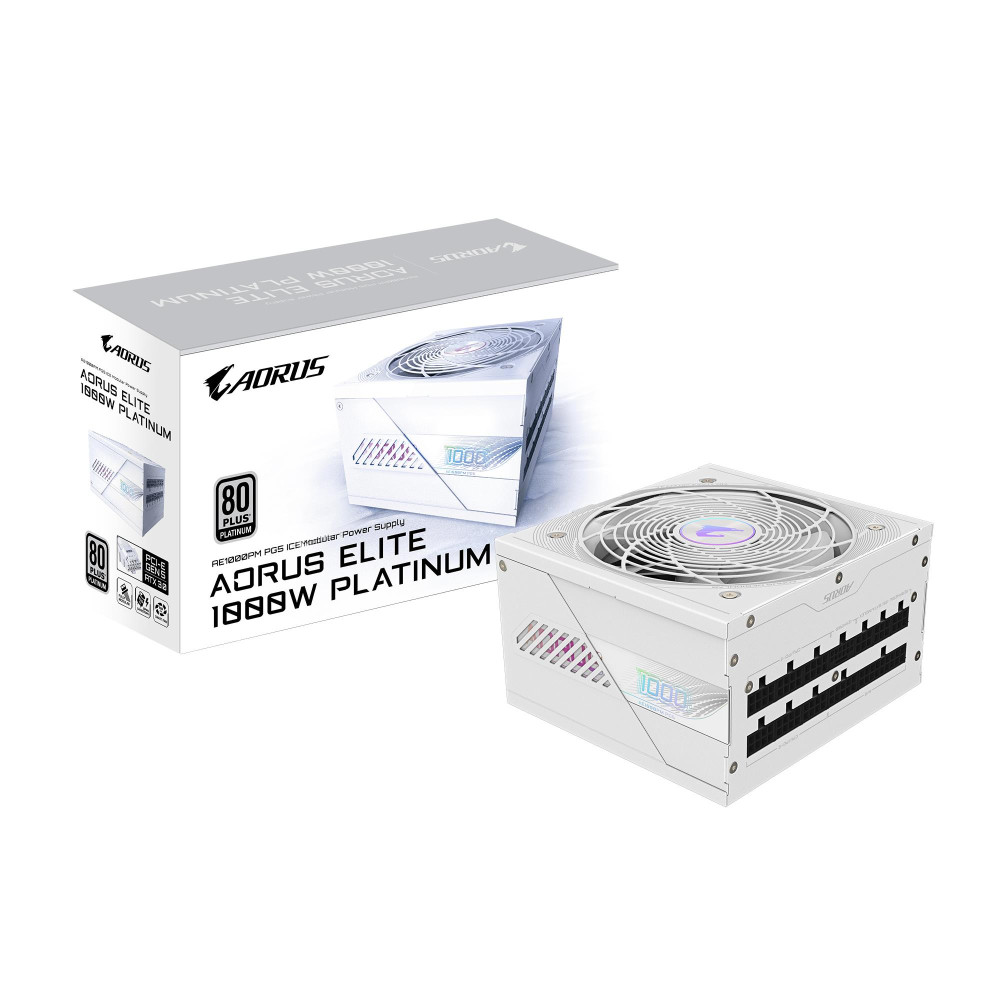

Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1) 80 PLUS Platinum certified 100% Japanese capacitors 120mm smart Fluid Dynamic Bearing (FDB) fan Compact design Fully modular design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 10 years warranty
Yra sandėlyje
: 22 Prekės
Paskubėkite! liko tik 22 liko prekių sandėlyje.
Charakteristikos
Garantija
36
Summary
GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20
Vendor Homepage
https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10 kf
Category Code
PSU
Unit Box Height
0.205
Unit Box Length
0.34
Unit Box Width
0.12
Design (Product colour)
White
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
3102 g
Weight & dimensions (Width)
150 mm
Units per Shipping Box
5
Unit Calculated Volume
0.01086 cubm
Unit Calculated Weight
3.73 kg
Model name
GP-AE1000PM PG5 ICE
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Efficiency)
92 %
Power (Input current)
15 - 6.5 A
Power (Max output current (+12V))
83.3 A
Power (Max output current (+3.3V))
25 A
Power (Max output current (+5V))
25 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
1000 W
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (Floppy disk drive connector)
Yes
Ports & interfaces (Floppy drive power connector)
2
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
4
Performance (ATX version)
3.1
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Design (Cooling type)
Active
Design (Fan diameter)
120 mm
Design (Fan location)
Top
Design (Number of fans)
1 fan(s)
Design (On/off switch)
Yes
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
650 mm
Power (Combined power (+12V))
999.6 W
Power (Combined power (+3.3V))
125 W
Power (Combined power (+5V))
125 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Power factor)
0.9
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (PCI Express power connectors (6+2 pin))
6
Performance (80 PLUS certification)
80 PLUS Platinum
Packaging data (Package type)
Box
Packaging data (Package depth)
206 mm
Packaging data (Package height)
120 mm
Packaging data (Package weight)
3732 g
Packaging data (Package width)
340 mm
Performance (Bearing technology)
Ball bearing
Power (Hold time)
16 ms
Ports & interfaces (PCI Express connector)
Yes
Performance (Mean time between failures (MTBF))
100000 h
Power (Power Good signal delay range)
100 - 150 ms
Logistics data (Warranty period)
10 year(s)
