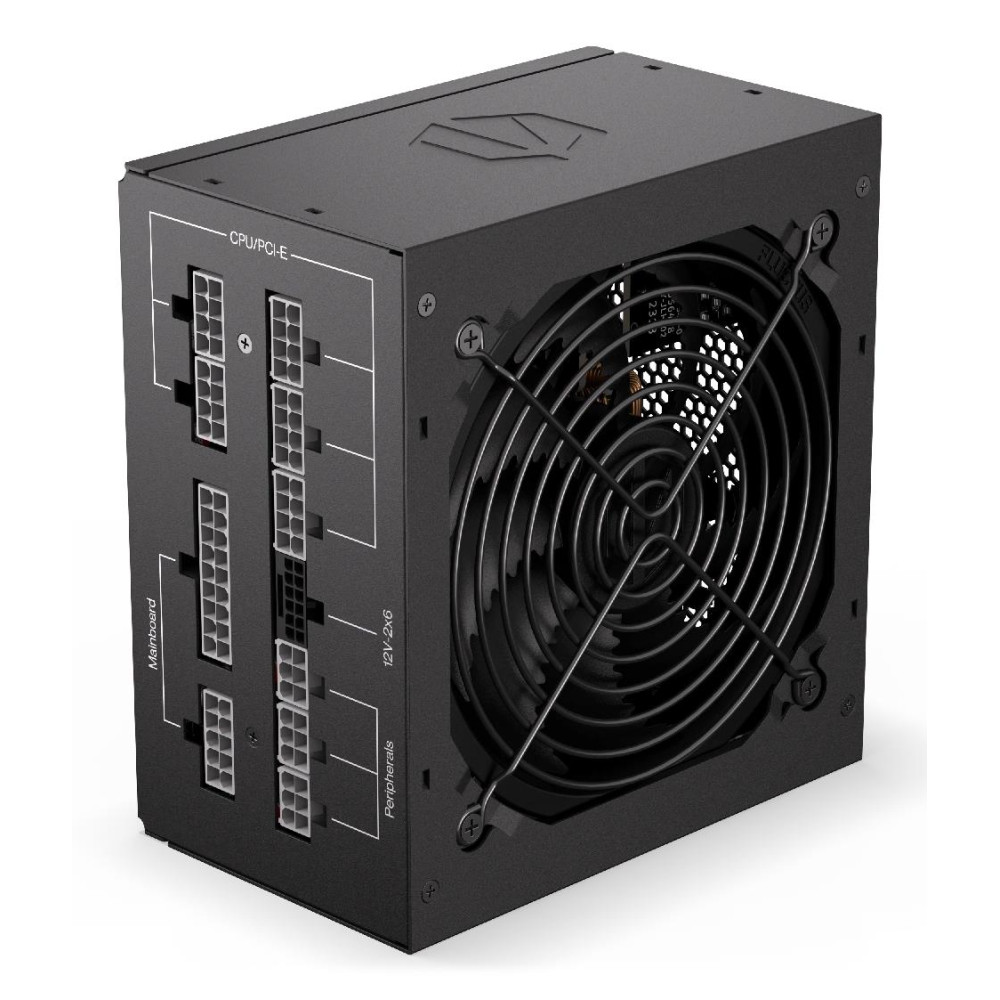

Power Supply|ENDORFY|SUPREMO FM6|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|EY7A012

Power Supply|ENDORFY|SUPREMO FM6|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|EY7A012

ENDORFY
1439921
850 W | 100 - 240 V | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Weight 1.46 kg | Package type Box | SUPREMO FM6
Paskubėkite! liko tik 3 liko prekių sandėlyje.
116,40 €
126,99 €
Sutaupote 10,59 €
Su mokesčiais
Kiekis

Paskutinė prekė


Prekių pristatymas



Prekių grąžinimas

Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

ENDORFY
: 1439921
: 3 Prekės
Paskubėkite! liko tik 3 liko prekių sandėlyje.

Charakteristikos

Garantija
24
Summary
ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form fa
Vendor Homepage
https://endorfy.com/en/product/supremo-fm6-850-w/
Category Code
PSU
CnCode
85044095
Unit Box Height
0.22
Unit Box Length
0.1
Unit Box Width
0.27
Design (Product colour)
Black
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
87 mm
Weight & dimensions (Weight)
1460 g
Weight & dimensions (Width)
140 mm
Units per Shipping Box
1
Unit Calculated Volume
0.00594 cubm
Unit Calculated Weight
2.72 kg
Packaging content (Cables included)
AC
Certificates (Compliance certificates)
CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Model name
SUPREMO FM6
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Input current)
13 - 6.5 A
Power (Max output current (+12V))
70 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Power (Total power)
850 W
Ports & interfaces (Motherboard power connector)
24-pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
1
Performance (ATX version)
3.1
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Design (Cooling type)
Active
Design (Fan diameter)
120 mm
Design (Fan location)
Top
Design (Number of fans)
1 fan(s)
Design (On/off switch)
Yes
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (SATA power cable length)
560 mm
Power (Combined power (+12V))
840 W
Power (Combined power (+3.3V))
66 W
Power (Combined power (+5V))
100 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (PCI Express power connectors (6+2 pin))
3
Performance (80 PLUS certification)
80 PLUS Gold
Packaging data (Package type)
Box
Packaging data (Package depth)
270 mm
Packaging data (Package height)
95 mm
Packaging data (Package weight)
2740 g
Packaging data (Package width)
220 mm
Performance (Bearing technology)
FDB
Performance (Mean time between failures (MTBF))
100000 h
Design (Illumination)
No
Design (LED indicators)
No
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Logistics data (Warranty period)
10 year(s)
Design (Fan speed)
1260 - 1540 RPM
Logistics data (Country of origin)
China
Technical details (Doesn't contain)
Cadmium/Lead/Mercury
Ports & interfaces (PCI Express power connectors (12+4 pin))
1
Design (On/off fan switch)
No
Packaging data (Case or master carton dimensions (W x D x H))
600 x 235 x 290 mm
Packaging data (Case or master carton weight)
17000 kg
Packaging data (Manual)
Yes
