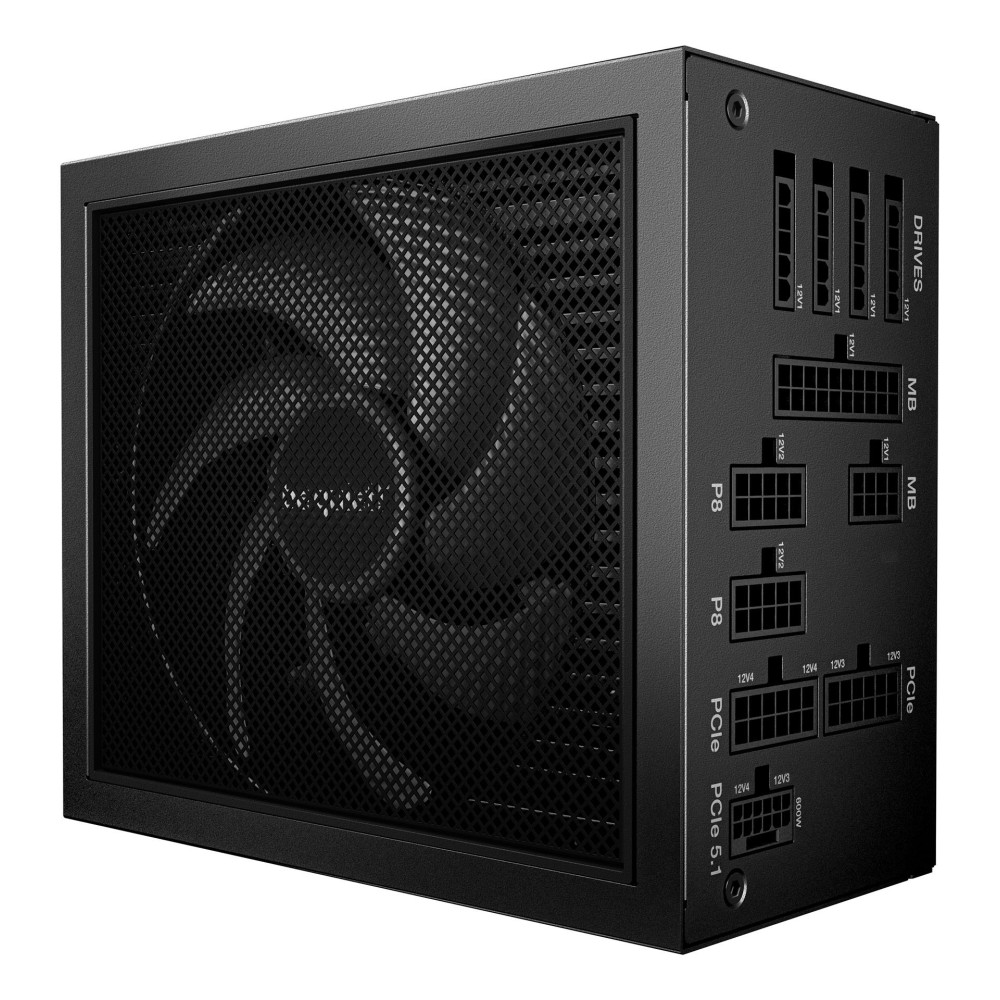

be quiet! Dark Power 14 850 W - 80 Plus Titanium. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 950 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose
Category Code
PSU
Design (Product colour)
Black
Weight & dimensions (Depth)
175 mm
Weight & dimensions (Height)
86 mm
Weight & dimensions (Weight)
2200 g
Weight & dimensions (Width)
150 mm
Units per Shipping Box
1
Unit Calculated Volume
0.01 cubm
Unit Calculated Weight
3.5 kg
Certificates (Compliance certificates)
CB/cTUVus/Federal Communications Commission (FCC)/RoHS/T V mark/UKCA/WEEE
Operational conditions (Operating temperature (T-T))
0 - 40 C
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Power (Efficiency)
93.8 %
Power (Max output current (+3.3V))
24 A
Power (Max output current (+5V))
24 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.5 A
Power (Power protection features)
Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Power (Total power)
850 W
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
2
Performance (ATX version)
3.1
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Design (Cooling type)
Active
Design (Fan diameter)
135 mm
Design (Number of fans)
1 fan(s)
Design (On/off switch)
Yes
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
600 mm
Ports & interfaces (Peripheral (Molex) power cable length)
1050/900 mm
Ports & interfaces (SATA power cable length)
1050/600/750/900 mm
Power (Combined power (+12V))
850 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Power factor)
0.98
Ports & interfaces (CPU power cable length)
700 mm
Ports & interfaces (PCI Express power cable length)
600 mm
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Performance (80 PLUS certification)
80 PLUS Titanium
Power (Max output current (+12V1))
30 A
Power (Peak power)
950 W
Packaging data (Package depth)
126 mm
Packaging data (Package height)
355 mm
Packaging data (Package weight)
3500 g
Packaging data (Package width)
230 mm
Performance (Bearing technology)
FDB
Power (Max output current (+12V2))
30 A
Power (Hold time)
20.7 ms
Ports & interfaces (PCI Express connector)
Yes
Performance (Mean time between failures (MTBF))
100000 h
Power (Maximum input current (@220V))
5 A
Ports & interfaces (EPS power connector (4+4 pin))
Yes
Ports & interfaces (EPS power connector (8-pin))
Yes
Design (Fan speed)
0 - 2100 RPM
Power (Maximum input current (@110V))
10 A
Performance (Noise level)
16 dB
Technical details (Sustainability certificates)
ENERGY STAR/ErP/Triman
Power (Number of +12V rail(s))
4
Performance (EPS version)
2.92
Logistics data (Products per shipping (inner) case)
4 pc(s)
Logistics data (Shipping (inner) case height)
260 mm
Logistics data (Shipping (inner) case length)
528 mm
Logistics data (Shipping (inner) case width)
368 mm
Other features (Cable ties included)
Yes
Other features (Screws included)
Yes
Ports & interfaces (PCI Express power connectors (12-pin))
