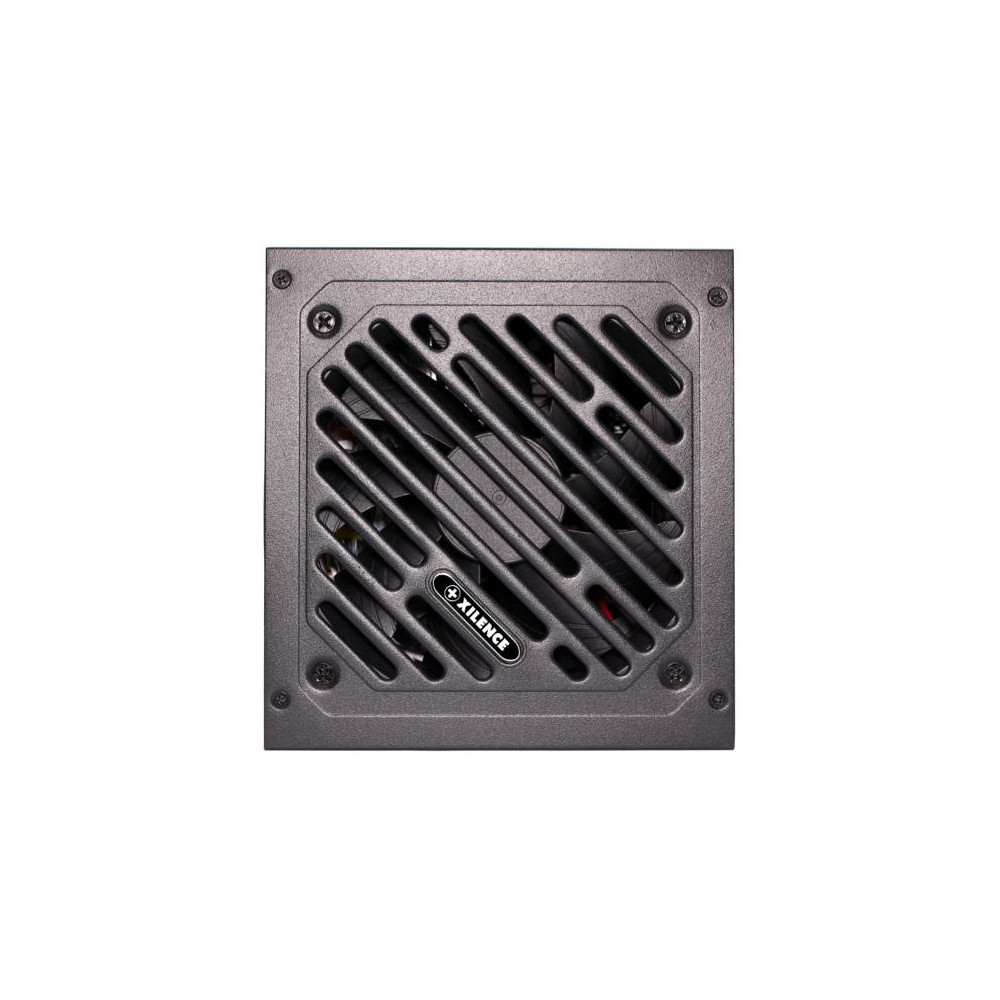

XN340 | XP850R12 The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series. The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
Whisper-Quiet Cooling: Large 120mm fan*
Excellent Airflow Design for Improved Heat Dissipation
Xilence Performance A+ XN340 | XP850R12. Total power: 850 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 5.5 cm, Cabling type: Non-Modular. Purpose: PC, Power su
Vendor Homepage
https://www.xilence.net/en/power-supplies/222
Category Code
PSU
CnCode
85044095
Unit Box Height
0.205
Unit Box Length
0.265
Unit Box Width
0.1
Design (Product colour)
Black
Weight & dimensions (Depth)
247 mm
Weight & dimensions (Height)
98 mm
Weight & dimensions (Weight)
2300 g
Weight & dimensions (Width)
198 mm
Units per Shipping Box
1
Unit Calculated Volume
0.005432 cubm
Unit Calculated Weight
2.19 kg
Certificates (Certification)
80PLUS certification
Model name
XN340 | XP850R12
Power (AC input frequency)
50 - 60 Hz
Power (AC input voltage)
200 - 240 V
Power (Input current)
6.3 A
Power (Power protection features)
Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
850 W
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
6
Performance (ATX version)
2.52
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Design (Cooling type)
Active
Design (Fan diameter)
120 mm
Design (Fan location)
Top
Design (Number of fans)
1 fan(s)
Design (On/off switch)
Yes
Ports & interfaces (Cabling type)
Non-Modular
Ports & interfaces (CPU P4 connector (4-pin))
1
Ports & interfaces (Motherboard power cable length)
55 mm
Power (Combined power (+3.3V))
66 W
Power (Combined power (+5V))
100 W
Power (Combined power (+5Vsb))
16 W
Power (Combined power (-12V))
3.6 W
Power (Power Factor Correction (PFC) type)
Active
Ports & interfaces (PCI Express power connectors (6+2 pin))
