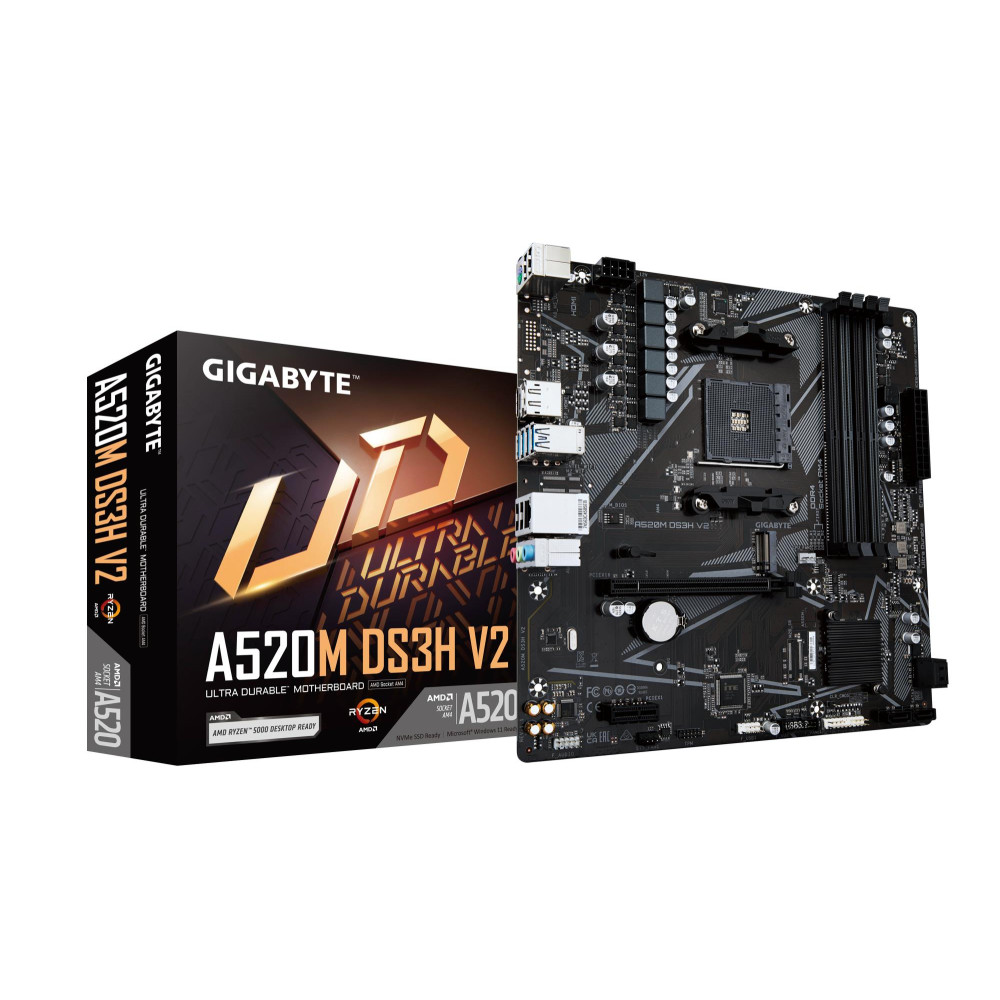

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable™ PCIe 3.0 x16 Slot NVMe PCIe 3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GbE LAN with Bandwidth Management Rear DisplayPort and HDMI for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design
Yra sandėlyje
: 16 Prekės
Paskubėkite! liko tik 16 liko prekių sandėlyje.
Charakteristikos
Garantija
36
Summary
GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD
Vendor Homepage
https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10 kf
Category Code
MBA
Unit Box Height
0.055
Unit Box Length
0.27
Unit Box Width
0.265
Processor (Processor manufacturer)
AMD
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Weight & dimensions (Width)
244 mm
Model
A520M DS3H V2
Units per Shipping Box
10
Unit Calculated Volume
0.004711 cubm
Unit Calculated Weight
0.89 kg
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Packaging content (Cables included)
SATA
Memory (Maximum internal memory)
128 GB
Network (Wi-Fi)
No
Battery (Number of battery cells)
1
Battery (Battery weight)
3 g
Network (Ethernet LAN)
Yes
Processor (Processor socket)
Socket AM4
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
810 g
Packaging data (Package width)
265 mm
Logistics data (Products per shipping (inner) case)
1 pc(s)
Logistics data (Country of origin)
China
Technical details (Warranty period)
3 year(s)
Packaging content (Batteries included)
Yes
Memory (Memory channels)
Dual-channel
Battery (Battery type)
CR2032
Packaging content (Bundled software)
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Features (Product colour)
Black
Features (Windows operating systems supported)
Windows 10 x64
Features (Audio output channels)
7.1 channels
Features (Component for)
PC
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (PC health monitoring)
CPU/LED/Power supply/Temperature/Voltage
Processor (Compatible processor series)
AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series
Processor (Supported processor sockets)
Socket AM4
Memory (ECC сompatibility)
ECC & Non-ECC
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speeds)
2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of storage drives supported)
5
Storage controllers (RAID levels)
0/1/10
Storage controllers (RAID support)
Yes
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
5120 x 2880 pixels
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
4
Rear panel I/O ports (USB connector type)
USB Type-A
Network (Ethernet interface type)
Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots)
1
BIOS (ACPI version)
5.0
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Features (Cooling type)
Active
Features (Power source type)
ATX
Storage controllers (Number of HDDs supported)
4
Expansion slots (PCI Express x1 (Gen 3.x) slots)
2
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Features (Audio chip)
Realtek ALC887
Internal I/O (Number of EATX power connectors)
1
Packaging content (Drivers included)
Yes
Processor (Maximum number of SMP processors)
1
Memory (Supported memory module capacities)
16GB/1GB/2GB/32GB/4GB/8GB
Internal I/O (Power fan connector)
Yes
Internal I/O (Total number of SATA connectors)
4
BIOS (Clear CMOS button)
Yes
Internal I/O (Serial port headers)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (DVI-D ports quantity)
1
Rear panel I/O ports (DisplayPort version)
2.0
Graphics (Number of displays supported)
3
Processor (Maximum internal memory supported by processor)
128 GB
Rear panel I/O ports (Digital audio optical out)
1
Graphics (Discrete graphics support)
Yes
