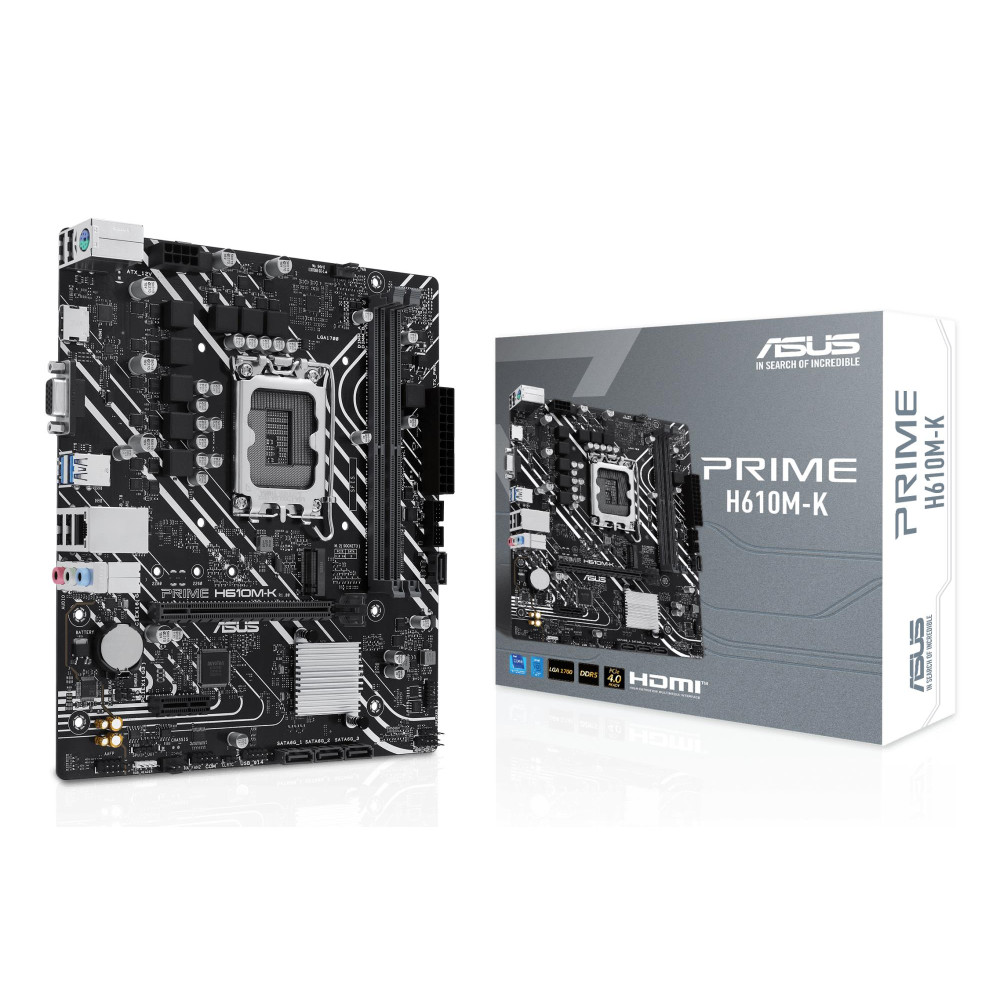

Mainboard|ASUS|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin

Prekės ženklas : ASUS

Kodas : 1405264

Nėra sandėlyje

83,69 €

Su mokesčiais

Kiekis

Išparduota

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

M.2 slot (up to 32 Gbps)

PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
5X Protection III: Multiple hardware safeguards for all-round protection

Prekės ženklas ASUS

Kodas : 1405264

Nėra sandėlyje

Charakteristikos

Garantija: 36
Summary: ASUS Prime H610M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB,
Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.05
Unit Box Length: 0.27
Unit Box Width: 0.265
Processor (Processor manufacturer): Intel
Weight & dimensions (Depth): 203 mm
Weight & dimensions (Height): 36.5 mm
Weight & dimensions (Width): 234 mm
Model: PRIME H610M-K
Units per Shipping Box: 10
Unit Calculated Volume: 0.004915 cubm
Unit Calculated Weight: 0.95 kg
Packaging content (Cables included): SATA
Memory (Maximum internal memory): 96 GB
Network (Wi-Fi): No
Network (Ethernet LAN): Yes
Processor (Processor socket): LGA 1700
Packaging data (Package depth): 263 mm
Packaging data (Package height): 51.5 mm
Packaging data (Package weight): 820 g
Packaging data (Package width): 270 mm
Other features (Weight): 470 g
Memory (Memory channels): Dual-channel
Features (Product colour): Multicolour
Features (Windows operating systems supported): Windows 10 x64/Windows 11
Features (Audio output channels): 7.1 channels
Features (Component for): PC
Features (Motherboard chipset): Intel H610
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): micro ATX
Processor (Compatible processor series): Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Memory (ECC сompatibility): Non-ECC
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 2
Memory (Supported memory clock speeds): 4800/5000/5200/5400/5600 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of storage drives supported): 5
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 1
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 2
Rear panel I/O ports (USB connector type): USB Type-A
Rear panel I/O ports (VGA (D-Sub) ports quantity): 1
Network (Ethernet interface type): Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots): 1
BIOS (BIOS memory size): 128 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (Clear CMOS jumper): Yes
Storage controllers (Number of HDDs supported): 4
Internal I/O (Number of chassis fan connectors): 2
Internal I/O (Number of COM connectors): 1
Rear panel I/O ports (Line-in): Yes
Expansion slots (PCI Express x1 (Gen 3.x) slots): 1
Internal I/O (S/PDIF out connector): Yes
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Internal I/O (RGB LED pin header): Yes
