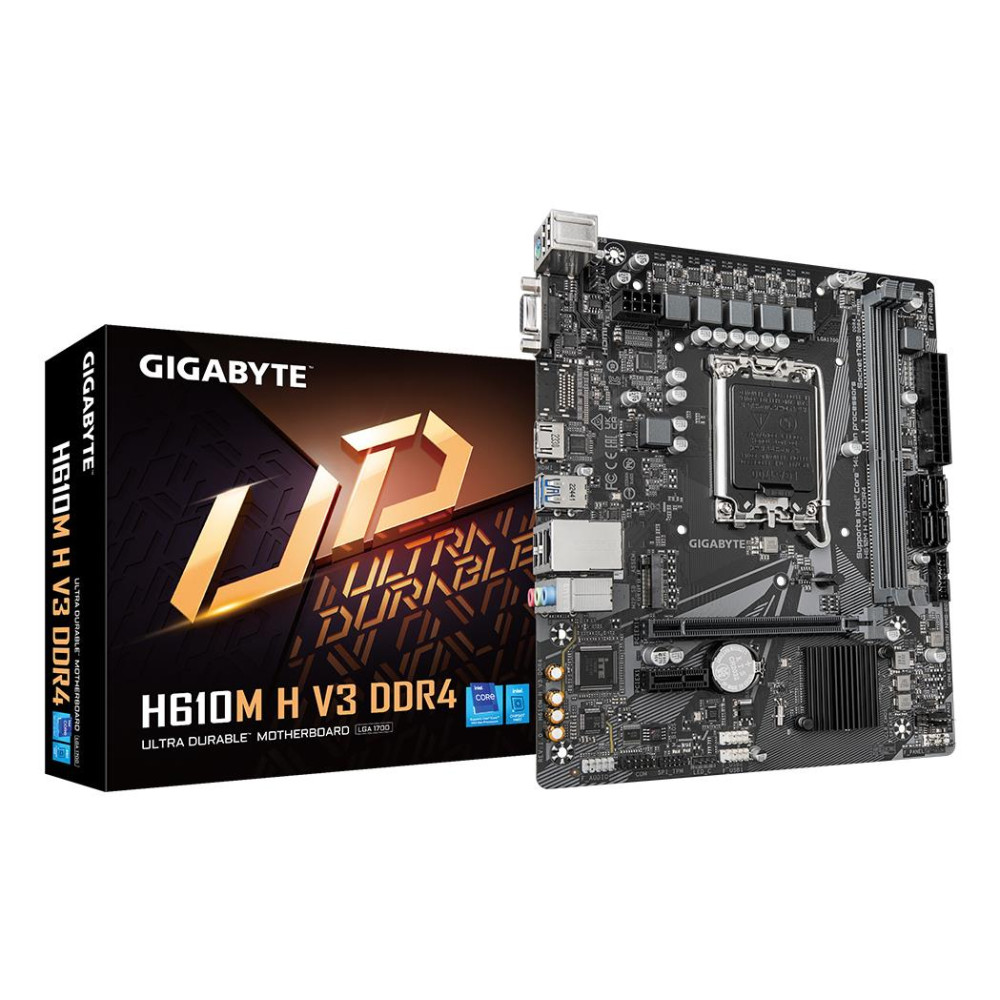

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15

Charakteristikos

Garantija

36

Summary

GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Inte

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBI

Unit Box Height

0.055

Unit Box Length

0.265

Unit Box Width

0.235

Processor (Processor manufacturer)

Intel

Weight & dimensions (Depth)

215 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

230 mm

Model

H610M H V3 DDR4

Units per Shipping Box

10

Unit Calculated Volume

0.004113 cubm

Unit Calculated Weight

0.753 kg

Graphics (Graphics card)

HD Graphics

Graphics (Graphics card family)

Intel

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

64 GB

Network (Wi-Fi)

No

Battery (Number of battery cells)

1

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1700

Packaging data (Package depth)

235 mm

Packaging data (Package height)

52 mm

Packaging data (Package weight)

684 g

Packaging data (Package width)

265 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Black

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel H610 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor (Supported processor sockets)

LGA 1700

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

3200 MHz

Memory (Supported memory clock speeds)

2133/2400/2666/2933/3000/3200 MHz

Memory (Supported memory types)

DDR4-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

5

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2304 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

3

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Rear panel I/O ports (USB connector type)

USB Type-A

Rear panel I/O ports (VGA (D-Sub) ports quantity)

1

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

Expansion slots (PCI Express x1 slots)

1

Expansion slots (PCI Express x16 slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Cooling type)

Active

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

1

Features (Audio chip)

Realtek ALC897

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/4GB/8GB

BIOS (Clear CMOS button)

Yes

Internal I/O (RGB LED pin header)

Yes

Internal I/O (Serial port headers)

1

Rear panel I/O ports (DisplayPorts quantity)

2

Rear panel I/O ports (DVI-D ports quantity)

1
