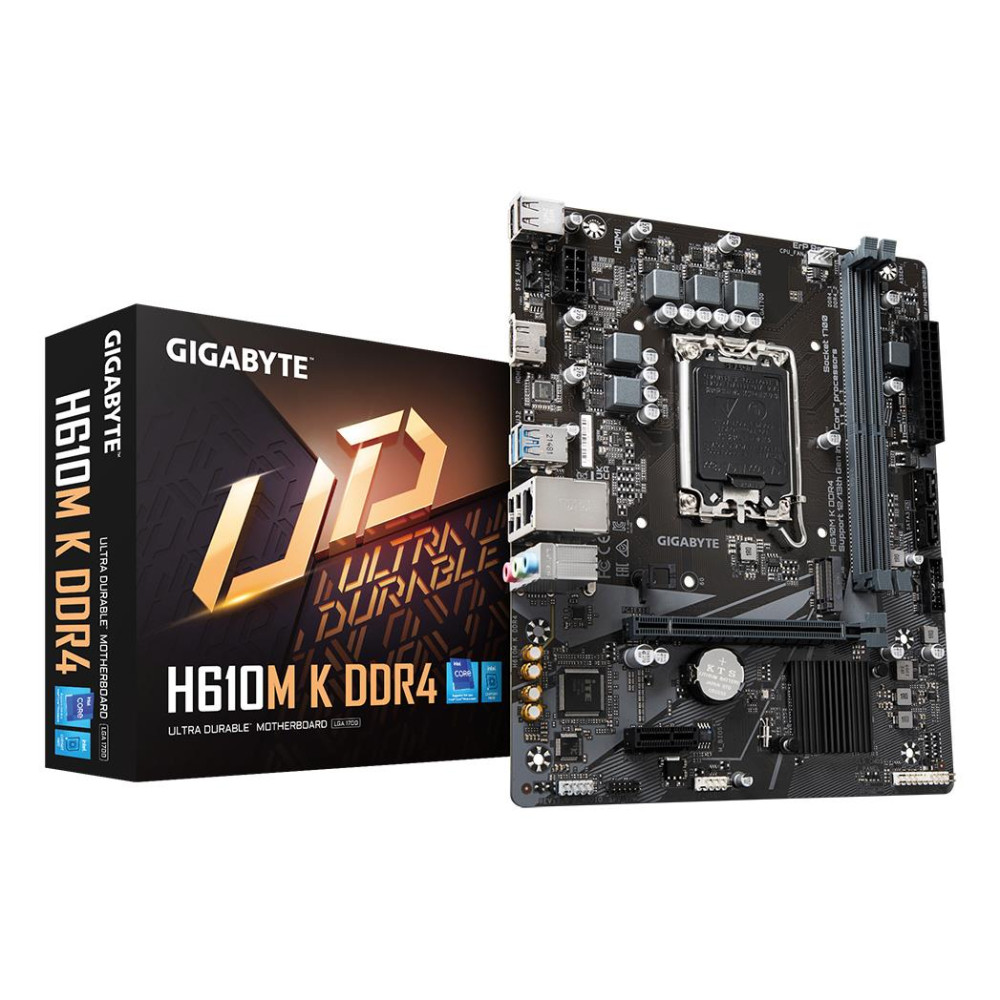

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|H610MKDDR42.0

Charakteristikos

Garantija

36

Summary

GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 3+1+1 Phases Hybrid Power Design, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: In

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBI

Unit Box Height

0.052

Unit Box Length

0.265

Unit Box Width

0.24

Processor (Processor manufacturer)

Intel

Weight & dimensions (Depth)

185 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

226 mm

Model

H610M K DDR4 (rev. 2.0)

Units per Shipping Box

10

Unit Calculated Volume

0.004222 cubm

Unit Calculated Weight

0.723 kg

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

64 GB

Network (Wi-Fi)

No

Battery (Number of battery cells)

1

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1700

Packaging data (Package depth)

235 mm

Packaging data (Package height)

52 mm

Packaging data (Package weight)

717 g

Packaging data (Package width)

265 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Network (LAN controller)

Realtek RTL8111H

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel H610 Express

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

Intel Celeron /Intel Core i3/Intel Core i7/Intel Core i9/Intel Pentium Gold

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

3200 MHz

Memory (Supported memory clock speeds)

2133/2400/2666/2933/3000/3200 MHz

Memory (Supported memory types)

DDR4-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

3

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

2

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Rear panel I/O ports (USB connector type)

USB Type-A

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

2

Internal I/O (Number of chassis fan connectors)

1

Rear panel I/O ports (Line-in)

Yes

Expansion slots (PCI Express x1 (Gen 3.x) slots)

1

Features (Audio chip)

Realtek ALC897

Internal I/O (Number of EATX power connectors)

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Processor (Maximum number of SMP processors)

1

Memory (Maximum RDIMM memory)

64 GB

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/4GB/8GB

Internal I/O (Audio connector)

Yes

Internal I/O (Power fan connector)

Yes

Internal I/O (Total number of SATA connectors)

2

BIOS (Clear CMOS button)

Yes
