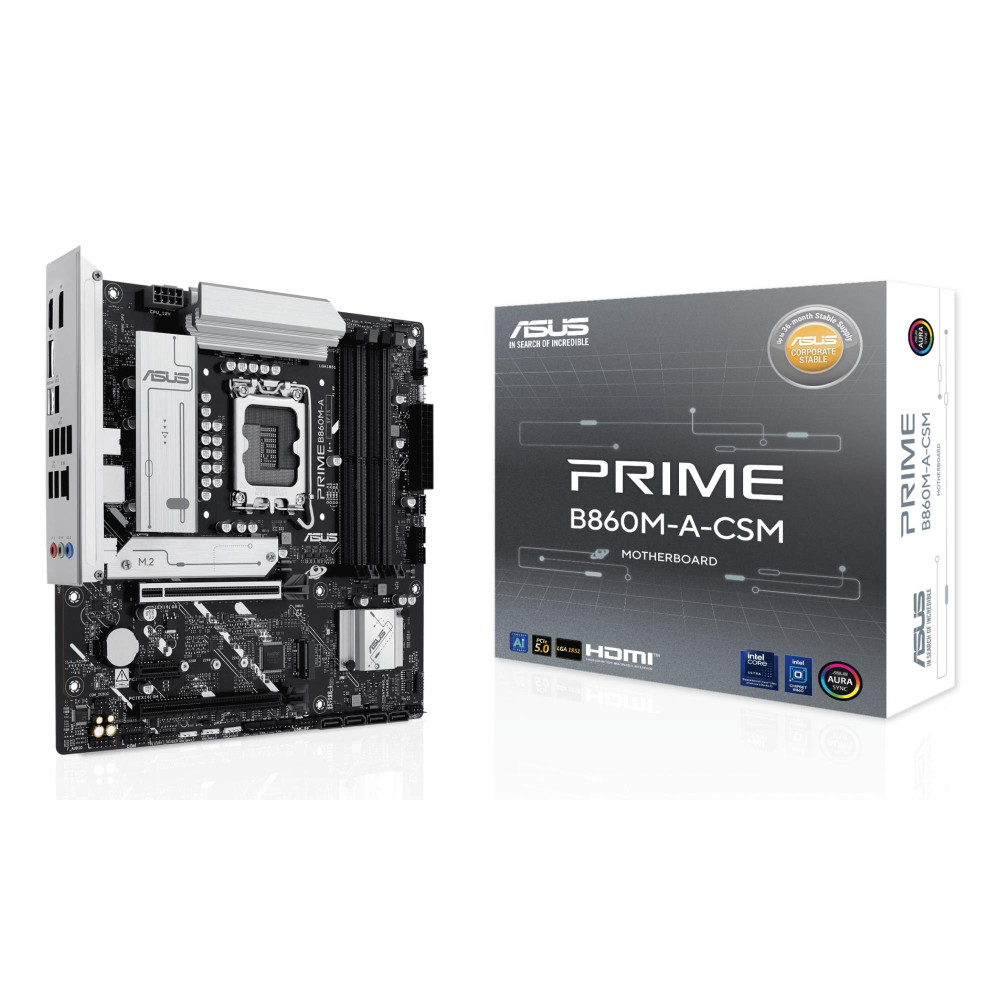

Mainboard|ASUS|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|PRIMEB860M-A-CSM

Charakteristikos

Garantija

36

Summary

ASUS PRIME B860M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supporte

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/

Category Code

MBI

Unit Box Height

0.07

Unit Box Length

0.28

Unit Box Width

0.275

Processor (Processor manufacturer)

Intel

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

50 mm

Weight & dimensions (Width)

244 mm

Model

PRIME B860M-A-CSM

Units per Shipping Box

10

Unit Calculated Volume

0.006102 cubm

Unit Calculated Weight

1.42 kg

Memory (Maximum internal memory)

256 GB

Network (Wi-Fi)

No

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1851 (Socket V1)

Packaging data (Package depth)

275 mm

Packaging data (Package height)

67.5 mm

Packaging data (Package weight)

1360 g

Packaging data (Package width)

275 mm

Other features (Weight)

815 g

Memory (Memory channels)

Dual-channel

Features (Product colour)

Multicolour

Features (Windows operating systems supported)

Windows 10 x64/Windows 11

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8666 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

3

Internal I/O (Number of COM connectors)

1

Rear panel I/O ports (Line-in)

Yes

Internal I/O (S/PDIF out connector)

Yes

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Internal I/O (Number of CPU fan connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

2

Internal I/O (Thunderbolt headers)

1

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

1

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1
