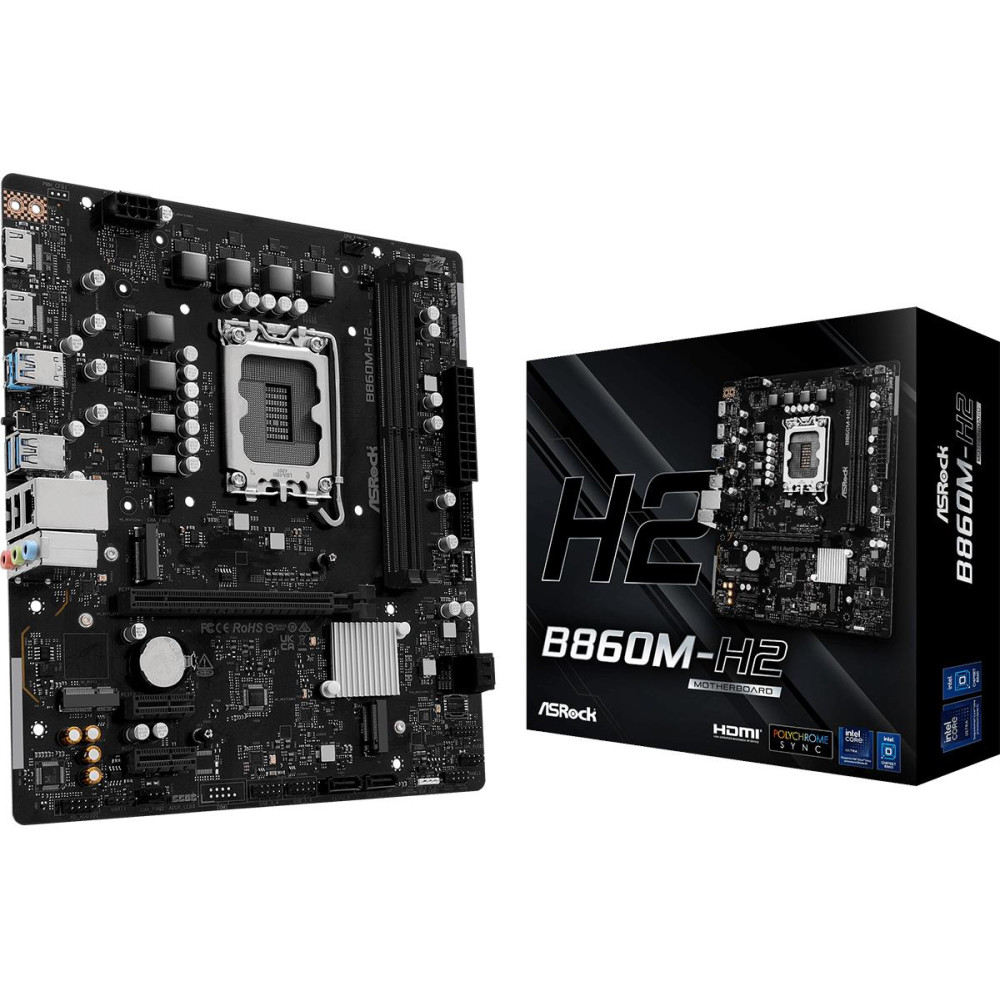

Mainboard|ASROCK|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860M-H2

Prekės ženklas : ASROCK

Kodas : 1451040

Paskubėkite! liko tik 17 liko prekių sandėlyje.

113,13 €

Su mokesčiais

Kiekis

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

USB 3.2 Gen2x2 20Gbps Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
5+1+1+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 8333+ (OC)
1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: 2 HDMI
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek Gigabit LAN
Supports BIOS Flashback

Prekės ženklas ASROCK

Kodas : 1451040

Yra sandėlyje : 17 Prekės

Paskubėkite! liko tik 17 liko prekių sandėlyje.

Charakteristikos

Garantija: 36
Summary: Asrock B860M-H2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported stora
Vendor Homepage: https://www.asrock.com/MB/Intel/B860M-H2/index.asp Overview
Category Code: MBI
Unit Box Height: 0.06
Unit Box Length: 0.28
Unit Box Width: 0.24
Processor (Processor manufacturer): Intel
Weight & dimensions (Depth): 211 mm
Weight & dimensions (Width): 244 mm
Model: B860M-H2
Units per Shipping Box: 20
Unit Calculated Volume: 0.004423 cubm
Unit Calculated Weight: 0.798 kg
Packaging content (Cables included): SATA
Memory (Maximum internal memory): 128 GB
Network (Wi-Fi): No
Network (Ethernet LAN): Yes
Processor (Processor socket): LGA 1851 (Socket V1)
Memory (Memory channels): Dual-channel
Network (LAN controller): Realtek RTL8111H
Features (Product colour): Black
Features (Windows operating systems supported): Windows 11 x64
Features (Audio output channels): 7.1 channels
Features (Component for): PC
Features (Motherboard chipset): Intel B860
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): micro ATX
Processor (Compatible processor series): Intel Core Ultra (Series 2)
Memory (ECC сompatibility): Non-ECC
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 2
Memory (Supported memory clock speed (max)): 8333 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (HDCP): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 2
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 3
Network (Ethernet interface type): Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots): 1
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Internal I/O (Number of chassis fan connectors): 2
Rear panel I/O ports (Line-in): Yes
Features (Audio chip): Realtek ALC897
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Internal I/O (Number of CPU fan connectors): 1
Internal I/O (RGB LED pin header): Yes
Expansion slots (PCI Express x1 (Gen 4.x) slots): 2
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
