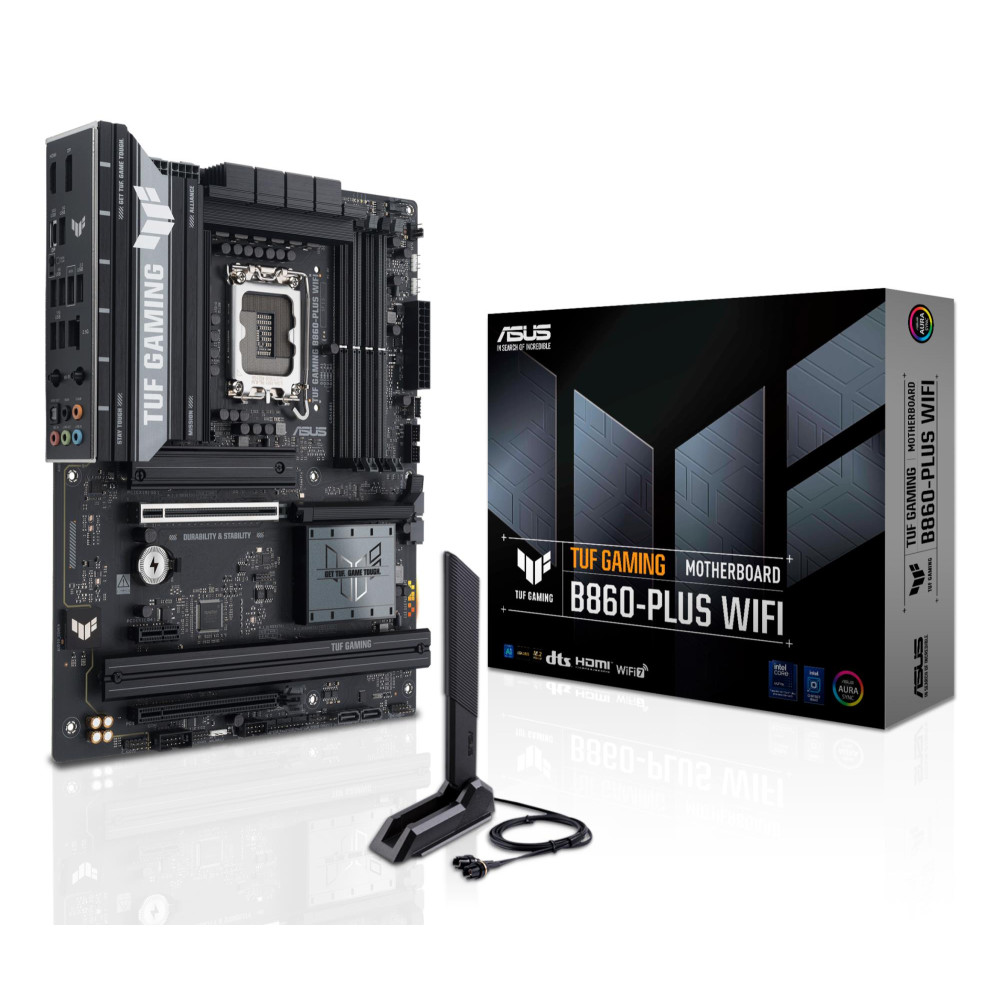

Mainboard|ASUS|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Expres

Charakteristikos

Garantija

36

Summary

ASUS TUF GAMING B860-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM.

Vendor Homepage

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/

Category Code

MBI

Unit Box Height

0.275

Unit Box Length

0.356

Unit Box Width

0.072

Processor (Processor manufacturer)

Intel

Network (Bluetooth)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 7 (802.11be)

Network (Wi-Fi standards)

Wi-Fi 7 (802.11be)

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Width)

305 mm

Model

TUF GAMING B860-PLUS WIFI

Units per Shipping Box

5

Unit Calculated Volume

0.007952 cubm

Unit Calculated Weight

2.08 kg

Network (Bluetooth version)

5.4

Packaging content (Cables included)

SATA

Memory (Maximum internal memory)

256 GB

Network (Wi-Fi)

Yes

Graphics (On-board graphics card)

No

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1851 (Socket V1)

Packaging data (Package depth)

273 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

2097 g

Packaging data (Package width)

353 mm

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Product colour)

Black

Features (Windows operating systems supported)

Windows 11

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

ATX

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Supported processor sockets)

LGA 1851

Memory (ECC сompatibility)

Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

7

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (Chassis intrusion connector)

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

3

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of COM connectors)

1

Internal I/O (S/PDIF out connector)

Yes

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Internal I/O (Thunderbolt headers)

1

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Rear panel I/O ports (WiFi-AP antenna jack)

1

Packaging content (Antenna included)

Yes

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Expansion slots (3rd M.2 highest PCI Express generation)

4.0

Expansion slots (3rd M.2 largest key size)

2280
