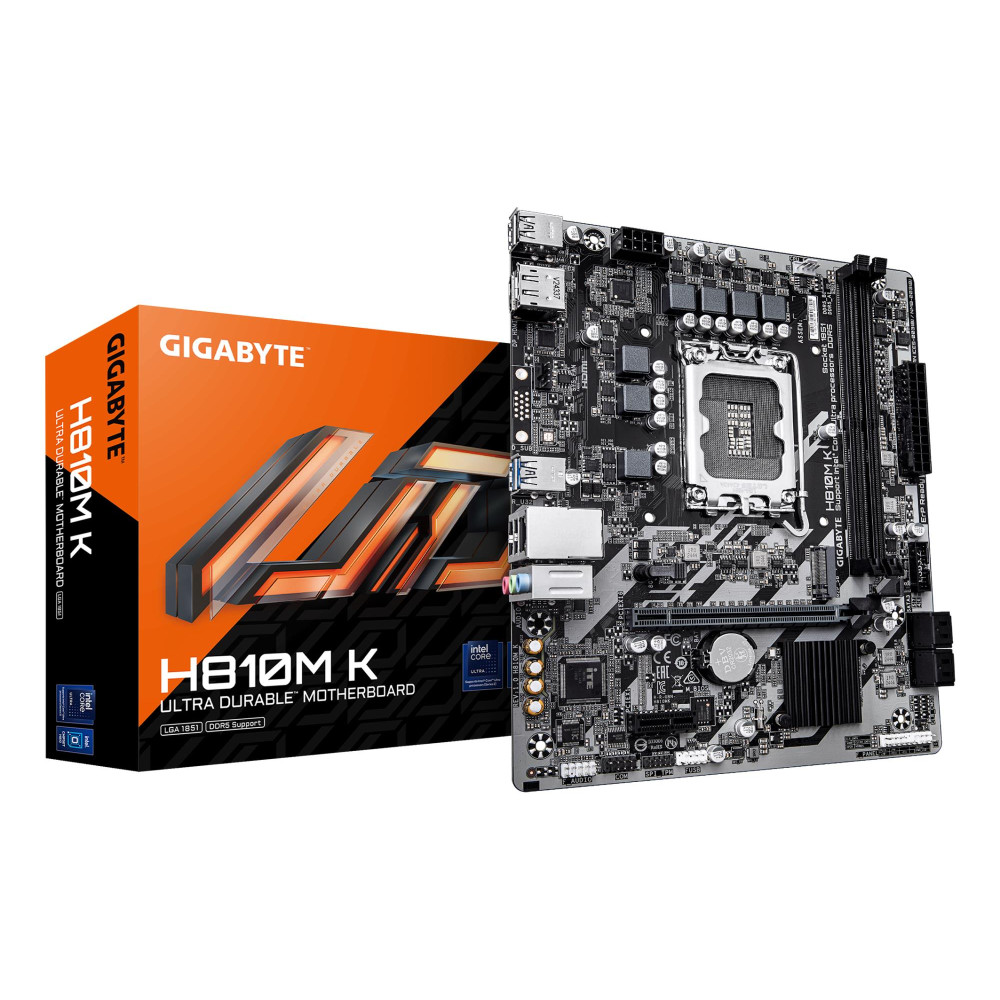

Mainboard|GIGABYTE|Intel H810|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|H810MK1.0

Charakteristikos

Garantija

36

Summary

GIGABYTE H810M K Motherboard - Intel Core Ultra (Series 2) CPUs, 3+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core

Vendor Homepage

https://www.gigabyte.com/

Category Code

MBI

Unit Box Height

0.055

Unit Box Length

0.265

Unit Box Width

0.235

Processor (Processor manufacturer)

Intel

Weight & dimensions (Depth)

185 mm

Weight & dimensions (Height)

35 mm

Weight & dimensions (Width)

226 mm

Model

H810M K

Units per Shipping Box

1

Unit Calculated Volume

0.003425 cubm

Unit Calculated Weight

0.687 kg

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Memory (Maximum internal memory)

128 GB

Network (Wi-Fi)

No

Battery (Number of battery cells)

1

Battery (Battery weight)

3 g

Network (Ethernet LAN)

Yes

Processor (Processor socket)

LGA 1851 (Socket V1)

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

766.6 g

Packaging data (Package width)

265 mm

Logistics data (Products per shipping (inner) case)

1 pc(s)

Logistics data (Country of origin)

China

Technical details (Warranty period)

3 year(s)

Packaging content (Batteries included)

Yes

Other features (Weight)

688 g

Packaging content (Screws included)

Yes

Memory (Memory channels)

Dual-channel

Battery (Battery type)

CR2032

Network (LAN controller)

Realtek RTL8111H

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Features (Product colour)

Dark brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Features (Audio output channels)

7.1 channels

Features (Component for)

PC

Features (Motherboard chipset)

Intel H810

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Supported processor sockets)

LGA 1851

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

6400 MHz

Memory (Supported memory clock speeds)

5600/6400 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of storage drives supported)

5

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Features (Cooling type)

Passive

Features (Power source type)

ATX

Storage controllers (Number of HDDs supported)

4

Internal I/O (Number of chassis fan connectors)

1

Rear panel I/O ports (Line-in)

Yes

Expansion slots (PCI Express x1 (Gen 3.x) slots)

1

Features (Audio chip)

Realtek ALC897

Graphics (DirectX version)

12.0

Internal I/O (Number of EPS power connectors (8-pin))

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Serial port headers)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Rear panel I/O ports (DisplayPort version)

2.1

Memory (Maximum internal memory per slot)

64 GB
