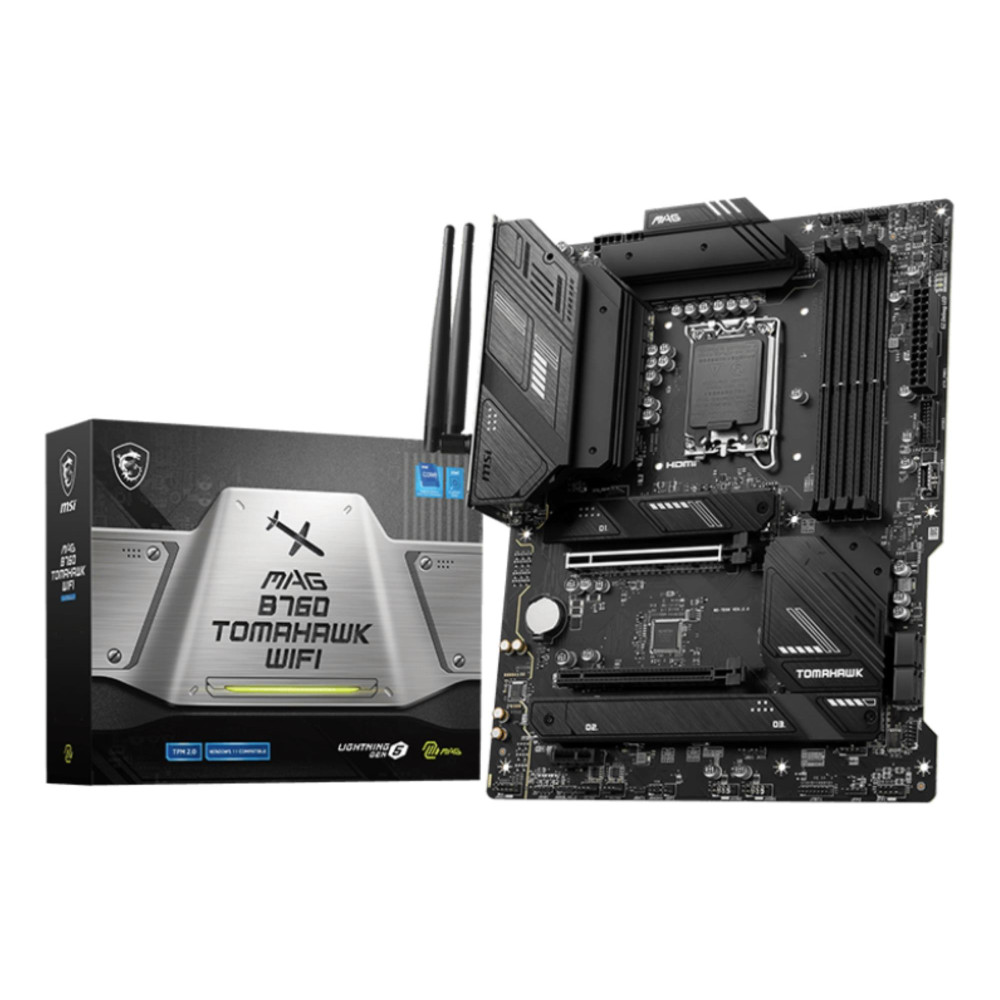

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|3xM.2|1xHDMI|1xDispla

Prekės ženklas : MSI

Kodas : 1393527

Nėra sandėlyje

198,39 €

Su mokesčiais

Kiekis

Išparduota

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper
MOS and helps dissipate the heat.

7W/mK Thermal Pad &
Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7000+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Prekės ženklas MSI

Kodas : 1393527

Nėra sandėlyje

Charakteristikos

Garantija: 36
Summary: MSI MAG B760 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported
Vendor Homepage: https://www.msi.com/Motherboard/MAG-B760-TOMAHAWK-WIFI/Overview
Category Code: MBI
Unit Box Height: 0.07
Unit Box Length: 0.345
Unit Box Width: 0.27
Processor (Processor manufacturer): Intel
Network (Bluetooth): Yes
Network (Top Wi-Fi standard): Wi-Fi 6E (802.11ax)
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Weight & dimensions (Depth): 304.8 mm
Weight & dimensions (Width): 243.84 mm
Model: MAG B760 TOMAHAWK WIFI
Units per Shipping Box: 1
Unit Calculated Volume: 0.0065205 cubm
Unit Calculated Weight: 1.76 kg
Network (Bluetooth version): 5.3
Memory (Maximum internal memory): 128 GB
Network (Wi-Fi): Yes
Graphics (On-board graphics card): No
Network (Ethernet LAN): Yes
Processor (Processor socket): LGA 1700
Memory (Memory channels): Dual-channel
Features (Product colour): Black
Features (Windows operating systems supported): Windows 10/Windows 11
Features (Audio output channels): 7.1 channels
Features (Component for): PC
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): ATX
Processor (Compatible processor series): Intel Celeron /Intel Pentium Gold
Processor (Supported processor sockets): LGA 1700
Memory (ECC сompatibility): Non-ECC
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 7000 MHz
Memory (Supported memory clock speeds): 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz
Memory (Supported memory types): DDR5-SDRAM
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 4
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots): 3
Expansion slots (PCI Express x16 slots): 2
BIOS (ACPI version): 6.4
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (System Management BIOS (SMBIOS) version): 3.5
Features (Power source type): ATX
Expansion slots (PCI Express x1 (Gen 3.x) slots): 1
Features (Audio chip): Realtek ALC897
Internal I/O (S/PDIF out connector): Yes
Processor (Maximum number of SMP processors): 1
Internal I/O (RGB LED pin header): Yes
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (DisplayPort version): 1.4
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
