Mainboard|ASUS|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Expres

Prekės ženklas : ASUS

Kodas : 1407044

Paskubėkite! liko tik 29 liko prekių sandėlyje.

142,72 €

Su mokesčiais

Kiekis

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

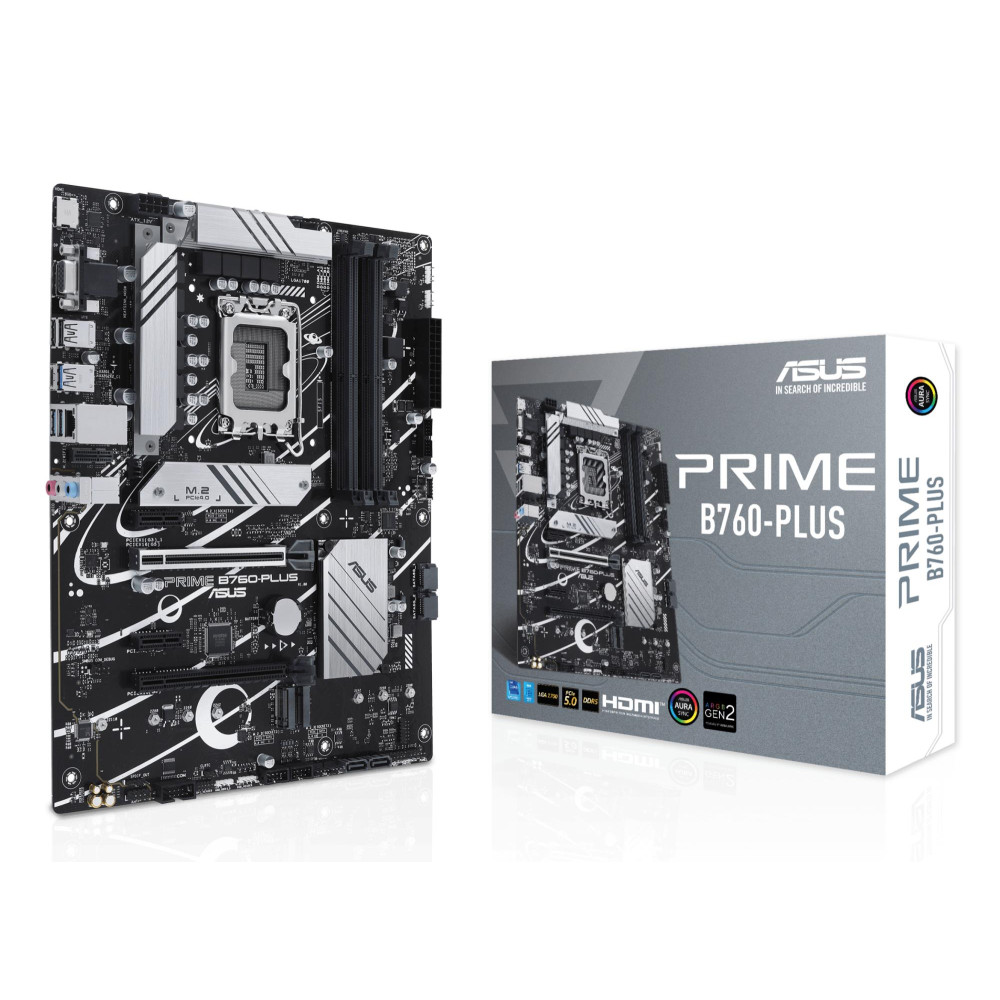

B760-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse

Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Prekės ženklas ASUS

Kodas : 1407044

Yra sandėlyje : 29 Prekės

Paskubėkite! liko tik 29 liko prekių sandėlyje.

Charakteristikos

Garantija: 36
Summary: ASUS PRIME B760-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192
Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.27
Unit Box Length: 0.33
Unit Box Width: 0.055
Processor (Processor manufacturer): Intel
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 36 mm
Weight & dimensions (Width): 305 mm
Model: PRIME B760-PLUS
Units per Shipping Box: 10
Unit Calculated Volume: 0.005814 cubm
Unit Calculated Weight: 1.32 kg
Packaging content (Cables included): SATA
Memory (Maximum internal memory): 192 GB
Network (Wi-Fi): No
Network (Ethernet LAN): Yes
Processor (Processor socket): LGA 1700
Packaging data (Package depth): 266 mm
Packaging data (Package height): 53 mm
Packaging data (Package weight): 1200 g
Packaging data (Package width): 328 mm
Other features (Weight): 760 g
Memory (Memory channels): Dual-channel
Expansion slots (PCI Express x16 (Gen 5.x) slots): 1
Features (Windows operating systems supported): Windows 10 x64/Windows 11
Features (Audio output channels): 7.1 channels
Features (Component for): PC
Features (Motherboard chipset): Intel B760
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): ATX
Processor (Compatible processor series): Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor (Supported processor sockets): LGA 1700
Memory (ECC сompatibility): Non-ECC
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speeds): 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of storage drives supported): 7
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (USB 2.0 ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 1
Rear panel I/O ports (VGA (D-Sub) ports quantity): 1
Network (Ethernet interface type): 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots): 3
BIOS (BIOS memory size): 128 Mbit
BIOS (BIOS type): UEFI AMI
Features (Cooling type): Passive
Features (Power source type): ATX
Storage controllers (Number of HDDs supported): 4
Internal I/O (Number of chassis fan connectors): 3
Internal I/O (Number of COM connectors): 1
Internal I/O (Peripheral (Molex) power connectors (4-pin)): 1
Rear panel I/O ports (Line-in): Yes
Expansion slots (PCI Express x1 (Gen 3.x) slots): 2
Internal I/O (S/PDIF out connector): Yes
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
Processor (Maximum number of SMP processors): 1
Internal I/O (RGB LED pin header): Yes
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (DisplayPort version): 1.4
Internal I/O (Thunderbolt headers): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
