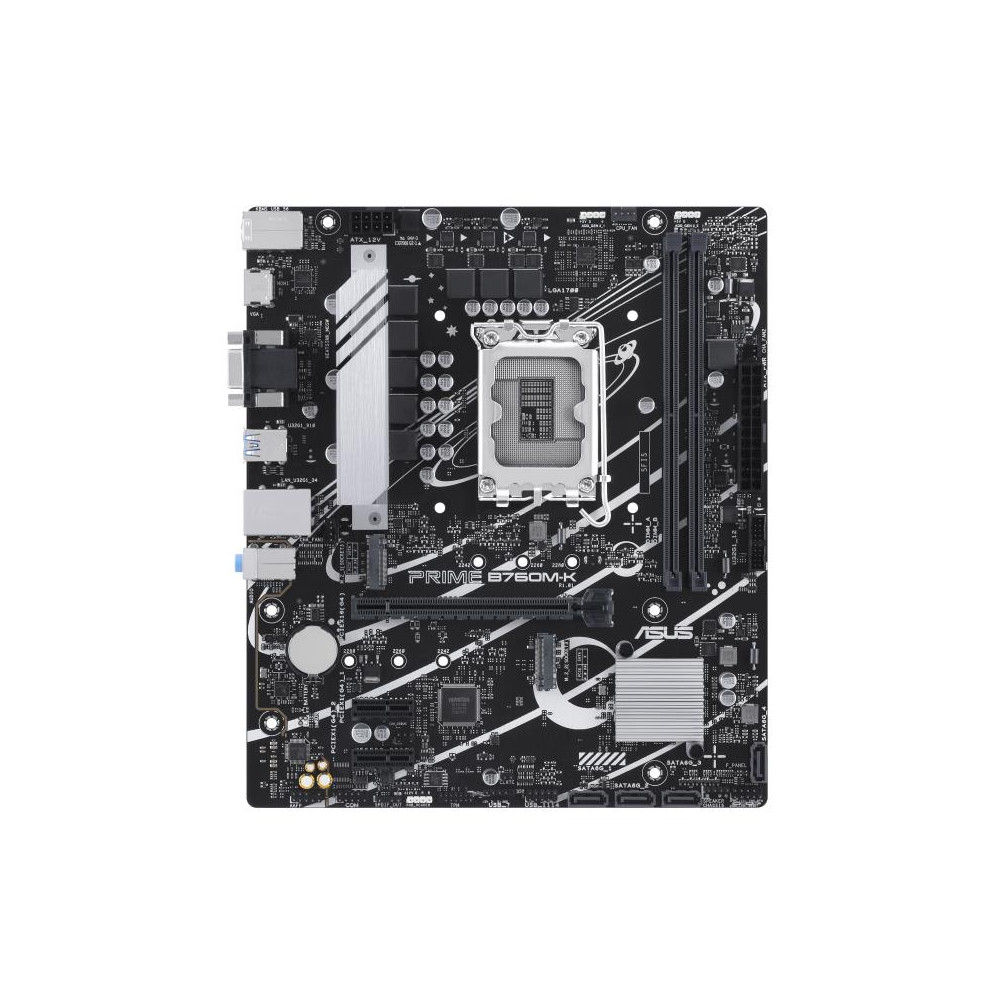

Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|
B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Charakteristikos
- Garantija
- 36
- Summary
- ASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core .... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 G
- Vendor Homepage
- https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
- Category Code
- MBI
- CnCode
- 84733020
- Unit Box Height
- 0.055
- Unit Box Length
- 0.275
- Unit Box Width
- 0.265
- Processor (Processor manufacturer)
- Intel
- Weight & dimensions (Depth)
- 211 mm
- Weight & dimensions (Width)
- 244 mm
- Model
- PRIME B760M-K
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004834 cubm
- Unit Calculated Weight
- 1.02 kg
- Packaging content (Cables included)
- SATA
- Memory (Maximum internal memory)
- 96 GB
- Network (Wi-Fi)
- No
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- LGA 1700
- Packaging data (Package depth)
- 263 mm
- Packaging data (Package height)
- 51.5 mm
- Packaging data (Package weight)
- 1015 g
- Packaging data (Package width)
- 270 mm
- Memory (Memory channels)
- Dual-channel
- Features (Windows operating systems supported)
- Windows 10 x64/Windows 11
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- Intel B760
- Features (Motherboard chipset family)
- Intel
- Features (Motherboard form factor)
- micro ATX
- Processor (Compatible processor series)
- Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
- Processor (Supported processor sockets)
- LGA 1700
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Memory slots type)
- DIMM
- Memory (Number of memory slots)
- 2
- Memory (Supported memory clock speed (max))
- 8000 MHz
- Memory (Supported memory clock speeds)
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Memory (Unbuffered memory)
- Yes
- Storage controllers (Number of storage drives supported)
- 6
- Storage controllers (RAID levels)
- 0/1/10/5
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- M.2,SATA III
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Graphics (Parallel processing technology support)
- Not supported
- Internal I/O (12V power connector)
- Yes
- Internal I/O (ATX Power connector (24-pin))
- Yes
- Internal I/O (CPU fan connector)
- Yes
- Internal I/O (EPS power connector (8-pin))
- Yes
- Internal I/O (Front panel audio connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 4
- Internal I/O (TPM connector)
- Yes
- Internal I/O (USB 2.0 connectors)
- 2
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 1
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (PS/2 ports quantity)
- 1
- Rear panel I/O ports (USB 2.0 ports quantity)
- 2
- Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
- 4
- Rear panel I/O ports (VGA (D-Sub) ports quantity)
- 1
- Network (Ethernet interface type)
- 2.5 Gigabit Ethernet
- Expansion slots (Number of M.2 (M) slots)
- 2
- BIOS (BIOS memory size)
- 128 Mbit
- BIOS (BIOS type)
- UEFI AMI
- Storage controllers (Number of HDDs supported)
- 4
- Internal I/O (Number of chassis fan connectors)
- 1
- Internal I/O (Number of COM connectors)
- 1
- Internal I/O (S/PDIF out connector)
- Yes
- Expansion slots (PCI Express x16 (Gen 4.x) slots)
- 1
- Processor (Maximum number of SMP processors)
- 1
- Internal I/O (RGB LED pin header)
- Yes
- Expansion slots (PCI Express x1 (Gen 4.x) slots)
- 2
- Rear panel I/O ports (S/PDIF out port)
- Yes
