Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|2xDisplayPort|

Prekės ženklas : ASUS

Kodas : 1438205

Paskubėkite! liko tik 9 liko prekių sandėlyje.

136,78 €

Su mokesčiais

Kiekis

Pridėti prie palyginimo

Pridėti į norų sąrašą

Prekių pristatymas

Prekių grąžinimas

Aprašymas
Prekė detaliau

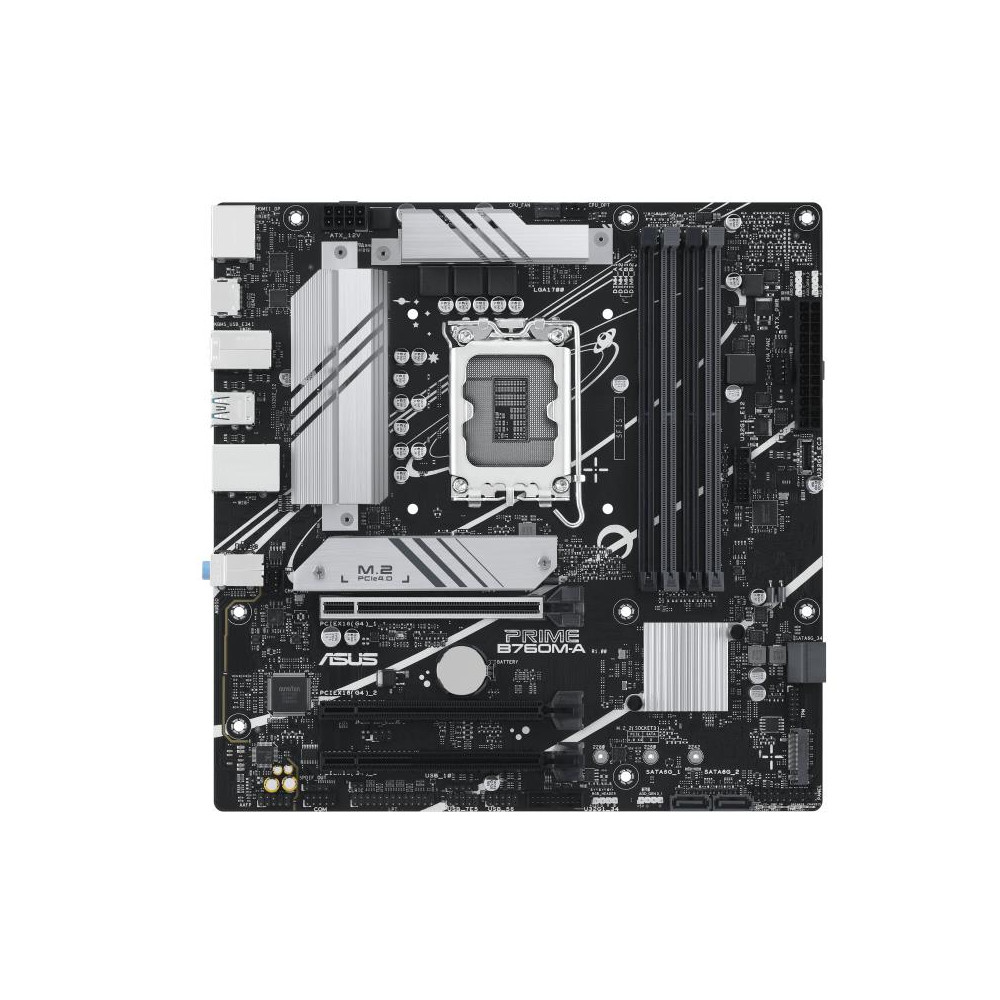

B760M-A-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection

Prekės ženklas ASUS

Kodas : 1438205

Yra sandėlyje : 9 Prekės

Paskubėkite! liko tik 9 liko prekių sandėlyje.

Charakteristikos

Garantija: 36
Summary: ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold, Intel Core i3, Intel Core i5, Intel Core .... Supported memory types: DDR5-SDRAM, Maximum internal memory:
Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.053
Unit Box Length: 0.273
Unit Box Width: 0.264
Processor (Processor manufacturer): Intel
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 40 mm
Weight & dimensions (Width): 244 mm
Model: PRIME B760M-A-CSM
Units per Shipping Box: 10
Unit Calculated Volume: 0.004548 cubm
Unit Calculated Weight: 1.18 kg
Packaging content (Cables included): SATA
Memory (Maximum internal memory): 128 GB
Network (Wi-Fi): Yes
Network (Ethernet LAN): Yes
Processor (Processor socket): LGA 1700
Packaging data (Package depth): 263 mm
Packaging data (Package height): 52 mm
Packaging data (Package weight): 1140 g
Packaging data (Package width): 270 mm
Memory (Memory channels): Dual-channel
Features (Windows operating systems supported): Windows 10 x64/Windows 11
Features (Audio output channels): 7.1 channels
Features (Component for): PC
Features (Motherboard chipset): Intel B760
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): micro ATX
Processor (Compatible processor series): Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor (Supported processor sockets): LGA 1700
Memory (ECC сompatibility): Non-ECC
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 7200 MHz
Memory (Supported memory clock speeds): 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of storage drives supported): 6
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of SATA III connectors): 4
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 3
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 3
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 2
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Microphone in): Yes
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 4
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots): 2
BIOS (BIOS memory size): 128 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (Number of HDDs supported): 4
Internal I/O (Number of chassis fan connectors): 2
Internal I/O (Number of COM connectors): 1
Rear panel I/O ports (Line-in): Yes
Internal I/O (S/PDIF out connector): Yes
Expansion slots (PCI Express x16 (Gen 4.x) slots): 3
BIOS (Clear CMOS button): Yes
Internal I/O (RGB LED pin header): Yes
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Rear panel I/O ports (WiFi-AP antenna jack): 1
