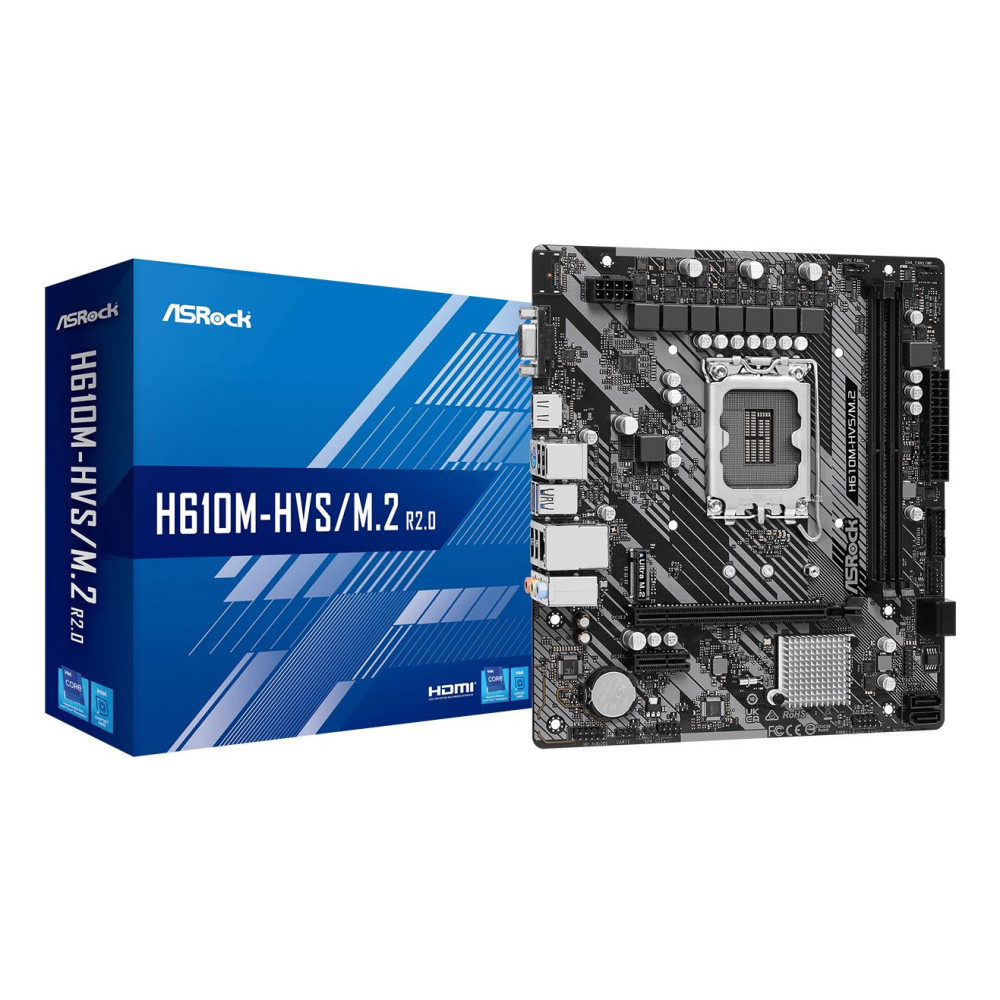

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pi

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pi

ASROCK
1384767
Intel H610 | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1700 | Series Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7 | Supported memory types DDR4-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4096 x 2160 pixels | 4xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity
Paskubėkite! liko tik 19 liko prekių sandėlyje.
76,82 €
Su mokesčiais
Kiekis

Pridėti prie palyginimo
Pridėti į norų sąrašą


Prekių pristatymas



Prekių grąžinimas

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7 Phase Power Design
  • Supports DDR4 3200MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3
  • 1 Ultra M.2 (PCIe Gen3 x4)
  • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
ASROCK
: 1384767
: 19 Prekės
Paskubėkite! liko tik 19 liko prekių sandėlyje.

Charakteristikos

Garantija
36
Summary
Asrock H610M-HVS/M.2 R2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3, Intel Core i5, Intel Core i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Su
Vendor Homepage
https://www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp Specification
Category Code
MBI
Unit Box Height
0.06
Unit Box Length
0.275
Unit Box Width
0.24
Processor (Processor manufacturer)
Intel
Weight & dimensions (Depth)
188 mm
Weight & dimensions (Width)
223 mm
Model
H610M-HVS/M.2 R2.0
Units per Shipping Box
1
Unit Calculated Volume
0.00396 cubm
Unit Calculated Weight
0.83 kg
Packaging content (Cables included)
SATA
Memory (Maximum internal memory)
64 GB
Network (Wi-Fi)
No
Network (Ethernet LAN)
Yes
Processor (Processor socket)
LGA 1700
Memory (Memory channels)
Dual-channel
Network (LAN controller)
Realtek RTL8111H
Features (Windows operating systems supported)
Windows 10 Education x64/Windows 11 x64
Features (Certification)
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Features (Audio output channels)
7.1 channels
Features (Component for)
PC
Features (Motherboard chipset)
Intel H610
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (PC health monitoring)
CPU/Fan/Voltage/Water cooling
Processor (Compatible processor series)
Intel Core i3/Intel Core i5/Intel Core i7
Memory (ECC сompatibility)
Non-ECC
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
2
Memory (Supported memory clock speeds)
3200 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2160 pixels
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (Chassis intrusion connector)
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
4
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Rear panel I/O ports (VGA (D-Sub) ports quantity)
1
Network (Ethernet interface type)
Gigabit Ethernet
Expansion slots (Number of M.2 (M) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (System Management BIOS (SMBIOS) version)
2.7
Rear panel I/O ports (Line-in)
Yes
Expansion slots (PCI Express x1 (Gen 3.x) slots)
1
Features (Audio chip)
Realtek ALC897
Network (Wake-on-LAN ready)
Yes
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
Processor (Maximum number of SMP processors)
1
