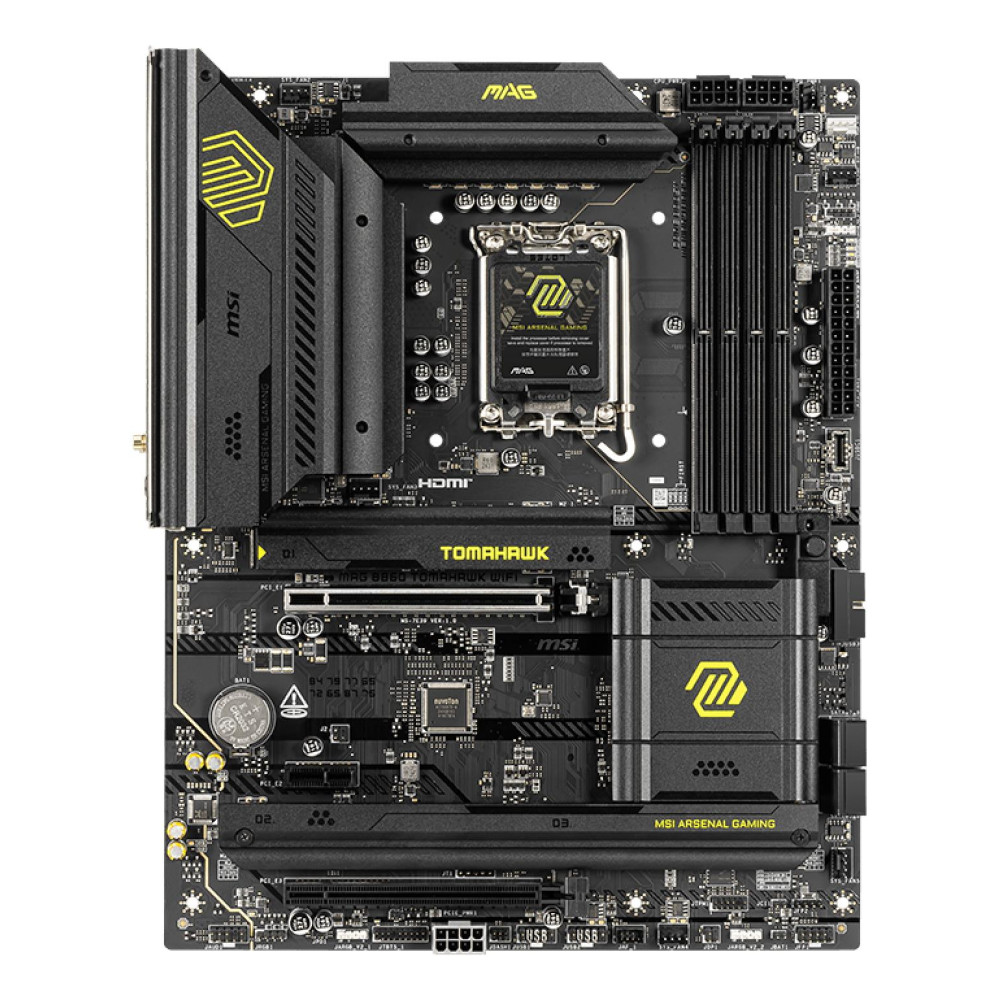

Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express
MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
Charakteristikos
- Garantija
- 36
- Summary
- MSI MAG B860 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supp
- Vendor Homepage
- https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI
- Category Code
- MBI
- Unit Box Height
- 0.07
- Unit Box Length
- 0.35
- Unit Box Width
- 0.27
- Processor (Processor manufacturer)
- Intel
- Network (Bluetooth)
- Yes
- Network (Top Wi-Fi standard)
- Wi-Fi 7 (802.11be)
- Network (Wi-Fi standards)
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- Weight & dimensions (Depth)
- 304.8 mm
- Weight & dimensions (Width)
- 243.84 mm
- Model
- MAG B860 TOMAHAWK WIFI
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.008299 cubm
- Unit Calculated Weight
- 1.69 kg
- Network (Bluetooth version)
- 5.4
- Memory (Maximum internal memory)
- 256 GB
- Network (Wi-Fi)
- Yes
- Graphics (On-board graphics card)
- No
- Network (WLAN controller model)
- Killer Wi-Fi 7 1750x
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- LGA 1851 (Socket V1)
- Memory (Memory channels)
- Dual-channel
- Expansion slots (PCI Express x16 (Gen 5.x) slots)
- 1
- Features (Product colour)
- Black
- Features (Windows operating systems supported)
- Windows 11 x64
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- Intel B860
- Features (Motherboard chipset family)
- AMD
- Features (Motherboard form factor)
- ATX
- Processor (Compatible processor series)
- Intel Core Ultra (Series 2)
- Processor (Supported processor sockets)
- LGA 1851
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Memory slots type)
- DIMM
- Memory (Number of memory slots)
- 4
- Memory (Supported memory clock speed (max))
- 9200 MHz
- Memory (Supported memory clock speeds)
- 5600/6400/7200/9200 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Storage controllers (Number of storage drives supported)
- 7
- Storage controllers (RAID levels)
- 0/1/10/5
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- M.2,Micro SATA III
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Internal I/O (CPU fan connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 4
- Internal I/O (USB 2.0 connectors)
- 4
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 2
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (HDMI version)
- 2.1
- Rear panel I/O ports (USB 2.0 ports quantity)
- 4
- Network (Ethernet interface type)
- 5 Gigabit Ethernet
- Expansion slots (Number of M.2 (M) slots)
- 3
- Expansion slots (PCI Express x1 slots)
- 1
- BIOS (ACPI version)
- 6.5
- BIOS (BIOS memory size)
- 256 Mbit
- BIOS (BIOS type)
- UEFI AMI
- BIOS (System Management BIOS (SMBIOS) version)
- 3.7
- Storage controllers (Number of HDDs supported)
- 4
- Features (Audio chip)
- Realtek ALC897
- Expansion slots (PCI Express x16 (Gen 4.x) slots)
- 1
- Internal I/O (Number of CPU fan connectors)
- 1
- Internal I/O (Total number of SATA connectors)
- 4
- Internal I/O (RGB LED pin header)
- Yes
- Expansion slots (1st M.2 highest PCI Express generation)
- 5.0
- Expansion slots (1st M.2 largest key size)
- 2280
- Internal I/O (Number of RGB LED pin headers)
- 3
- Processor (Maximum internal memory supported by processor)
- 256 GB
- Expansion slots (2nd M.2 highest PCI Express generation)
- 4.0
- Expansion slots (2nd M.2 largest key size)
- 22110
- Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
- 1
- Internal I/O (Number of water pump connectors)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
- 4
- Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
- 1
- Expansion slots (3rd M.2 highest PCI Express generation)
- 4.0
- Expansion slots (3rd M.2 largest key size)
- 2280
