Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D

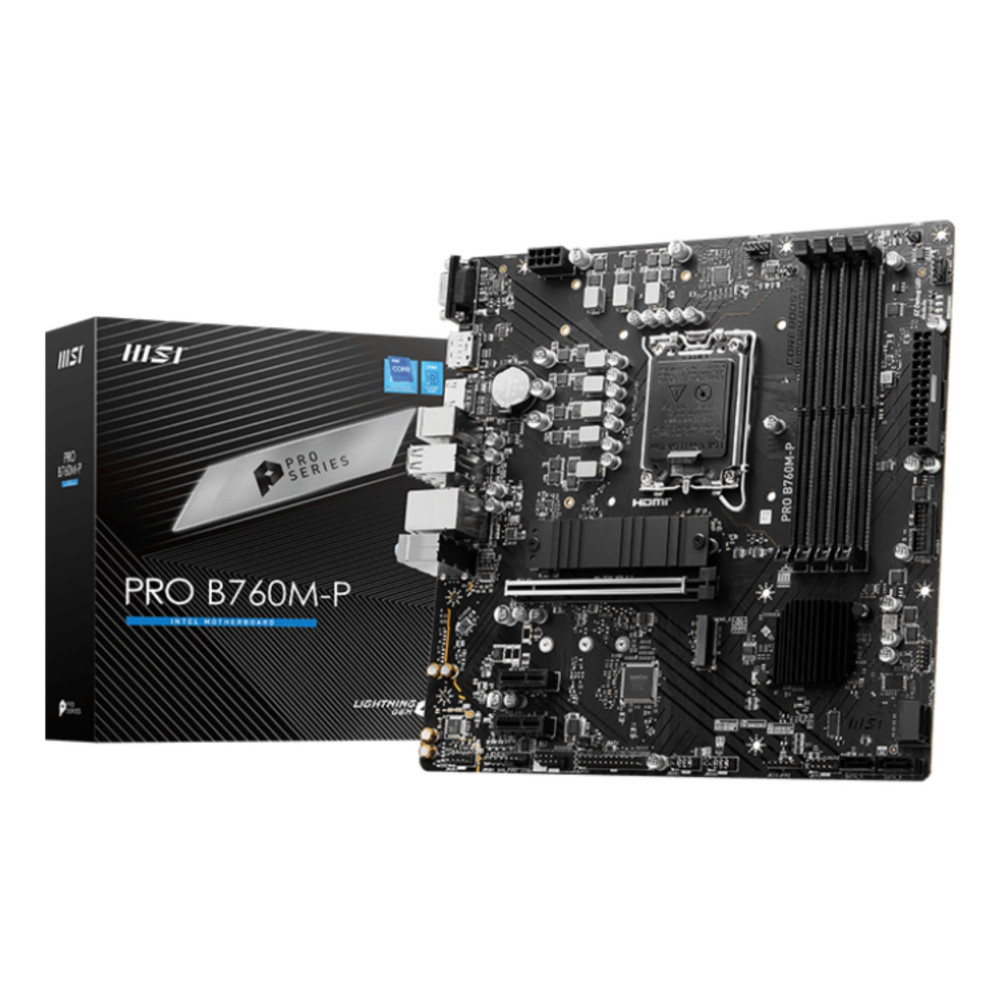

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Diy Friendly
Cooling Overview
msi PRO B760M-P cooling overview mobile
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Diy Friendly
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
Bios & software
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Charakteristikos
- Garantija
- 36
- Summary
- MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage
- Vendor Homepage
- https://www.msi.com/Motherboard/PRO-B760M-P/Specification
- Category Code
- MBI
- Unit Box Height
- 0.056
- Unit Box Length
- 0.3
- Unit Box Width
- 0.275
- Processor (Processor manufacturer)
- Intel
- Weight & dimensions (Depth)
- 243.84 mm
- Weight & dimensions (Width)
- 243.84 mm
- Model
- PRO B760M-P
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.00462 cubm
- Unit Calculated Weight
- 0.9 kg
- Packaging content (Cables included)
- SATA
- Memory (Maximum internal memory)
- 192 GB
- Network (Wi-Fi)
- No
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- LGA 1700
- Network (LAN controller)
- Realtek RTL8111H
- Features (Windows operating systems supported)
- Windows 10 x64/Windows 11 x64
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- Intel B760
- Features (Motherboard chipset family)
- Intel
- Features (Motherboard form factor)
- micro ATX
- Processor (Compatible processor series)
- Intel Celeron /Intel Pentium Gold
- Processor (Supported processor sockets)
- LGA 1700
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Number of memory slots)
- 4
- Memory (Supported memory clock speeds)
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Memory (Unbuffered memory)
- Yes
- Storage controllers (Number of storage drives supported)
- 6
- Storage controllers (RAID levels)
- 0/1/10/5
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- SATA III
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Internal I/O (ATX Power connector (24-pin))
- Yes
- Internal I/O (Chassis intrusion connector)
- Yes
- Internal I/O (CPU fan connector)
- Yes
- Internal I/O (Front panel audio connector)
- Yes
- Internal I/O (Front panel connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 4
- Internal I/O (TPM connector)
- Yes
- Internal I/O (USB 2.0 connectors)
- 4
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 2
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (HDMI version)
- 1.4
- Rear panel I/O ports (Headphone outputs)
- 1
- Rear panel I/O ports (Microphone in)
- Yes
- Rear panel I/O ports (PS/2 ports quantity)
- 2
- Rear panel I/O ports (USB 2.0 ports quantity)
- 4
- Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
- 1
- Rear panel I/O ports (VGA (D-Sub) ports quantity)
- 1
- Network (Ethernet interface type)
- Gigabit Ethernet
- BIOS (ACPI version)
- 6.4
- BIOS (BIOS memory size)
- 256 Mbit
- BIOS (BIOS type)
- UEFI AMI
- BIOS (Clear CMOS jumper)
- Yes
- BIOS (System Management BIOS (SMBIOS) version)
- 3.5
- Features (Power source type)
- ATX
- Storage controllers (Number of HDDs supported)
- 4
- Internal I/O (Number of COM connectors)
- 1
- Rear panel I/O ports (Line-in)
- Yes
- Features (Audio chip)
- Realtek ALC897
- Expansion slots (PCI Express x16 (Gen 4.x) slots)
- 1
- Internal I/O (RGB LED pin header)
- Yes
- Rear panel I/O ports (DisplayPorts quantity)
- 1
- Rear panel I/O ports (DisplayPort version)
- 1.4
- Expansion slots (PCI Express x1 (Gen 4.x) slots)
- 2
- Internal I/O (Parallel connector)
- Yes
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
- 1
