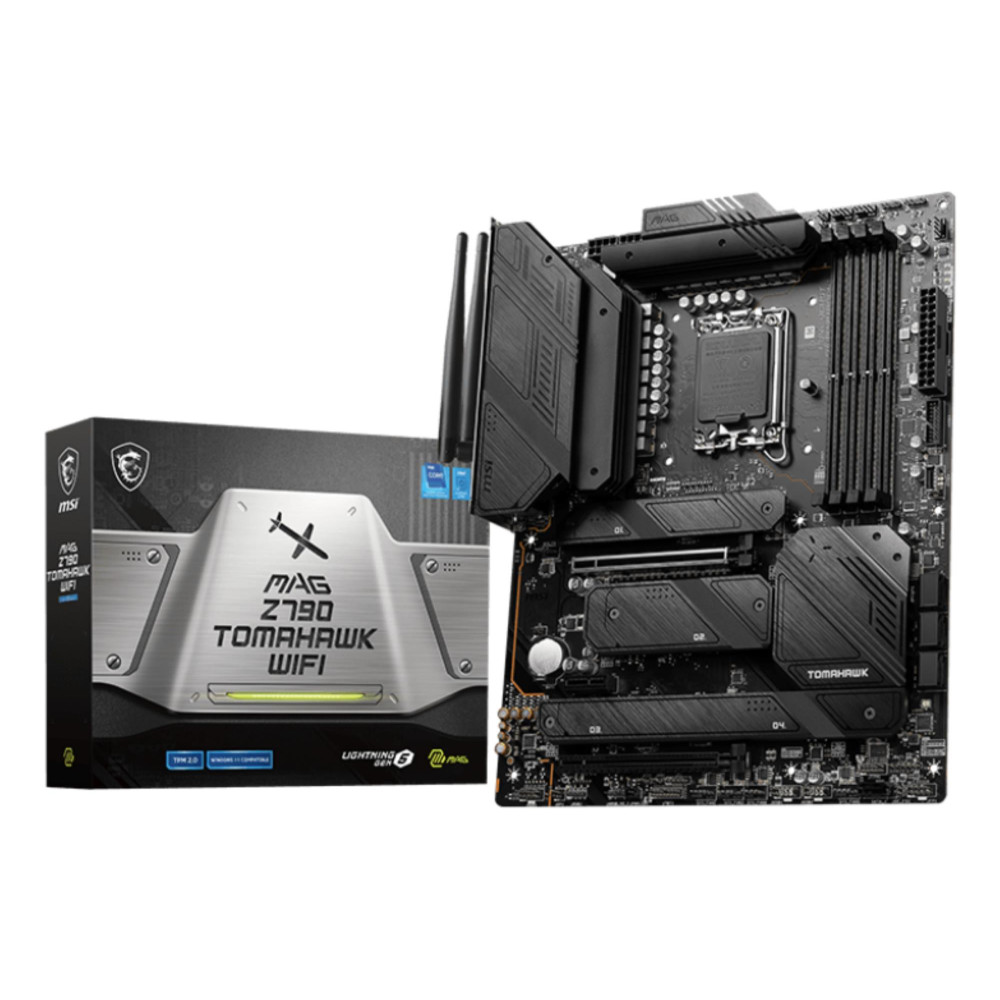

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDispla
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Charakteristikos
- Garantija
- 36
- Summary
- MSI MAG Z790 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Sup
- Vendor Homepage
- https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI
- Category Code
- MBI
- Unit Box Height
- 0.075
- Unit Box Length
- 0.345
- Unit Box Width
- 0.275
- Processor (Processor manufacturer)
- Intel
- Network (Bluetooth)
- Yes
- Network (Top Wi-Fi standard)
- Wi-Fi 6 (802.11ax)
- Network (Wi-Fi standards)
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- Weight & dimensions (Depth)
- 304.8 mm
- Weight & dimensions (Width)
- 243.84 mm
- Model
- MAG Z790 TOMAHAWK WIFI
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.007116 cubm
- Unit Calculated Weight
- 1.88 kg
- Network (Bluetooth version)
- 5.3
- Packaging content (Cables included)
- SATA
- Memory (Maximum internal memory)
- 192 GB
- Network (Wi-Fi)
- Yes
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- LGA 1700
- Memory (Memory channels)
- Dual-channel
- Expansion slots (PCI Express x16 (Gen 5.x) slots)
- 2
- Features (Product colour)
- Black
- Features (Windows operating systems supported)
- Windows 10 x64/Windows 11 x64
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- Intel Z790
- Features (Motherboard chipset family)
- Intel
- Features (Motherboard form factor)
- ATX
- Processor (Compatible processor series)
- Intel Celeron /Intel Pentium Gold
- Processor (Supported processor sockets)
- LGA 1700
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Number of memory slots)
- 4
- Memory (Supported memory clock speed (max))
- 7200 MHz
- Memory (Supported memory clock speeds)
- 4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Memory (Unbuffered memory)
- Yes
- Storage controllers (RAID levels)
- 0/10/5
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- M.2,PCI Express
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Graphics (Parallel processing technology support)
- Not supported
- Internal I/O (Chassis intrusion connector)
- Yes
- Internal I/O (CPU fan connector)
- Yes
- Internal I/O (Front panel audio connector)
- Yes
- Internal I/O (Front panel connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 7
- Internal I/O (TPM connector)
- Yes
- Internal I/O (USB 2.0 connectors)
- 2
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 2
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (HDMI version)
- 2.1
- Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
- 4
- Network (Ethernet interface type)
- 2.5 Gigabit Ethernet
- Expansion slots (Number of M.2 (M) slots)
- 4
- BIOS (ACPI version)
- 6.4
- BIOS (BIOS memory size)
- 256 Mbit
- BIOS (BIOS type)
- UEFI AMI
- BIOS (System Management BIOS (SMBIOS) version)
- 3.5
- Internal I/O (RGB LED pin header)
- Yes
- Rear panel I/O ports (DisplayPorts quantity)
- 1
- Rear panel I/O ports (DisplayPort version)
- 1.4
- Processor (Maximum internal memory supported by processor)
- 192 GB
- Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
- 1
- Expansion slots (PCI Express x1 (Gen 4.x) slots)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
- 4
- Rear panel I/O ports (S/PDIF out port)
- Yes
- Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
- 1
