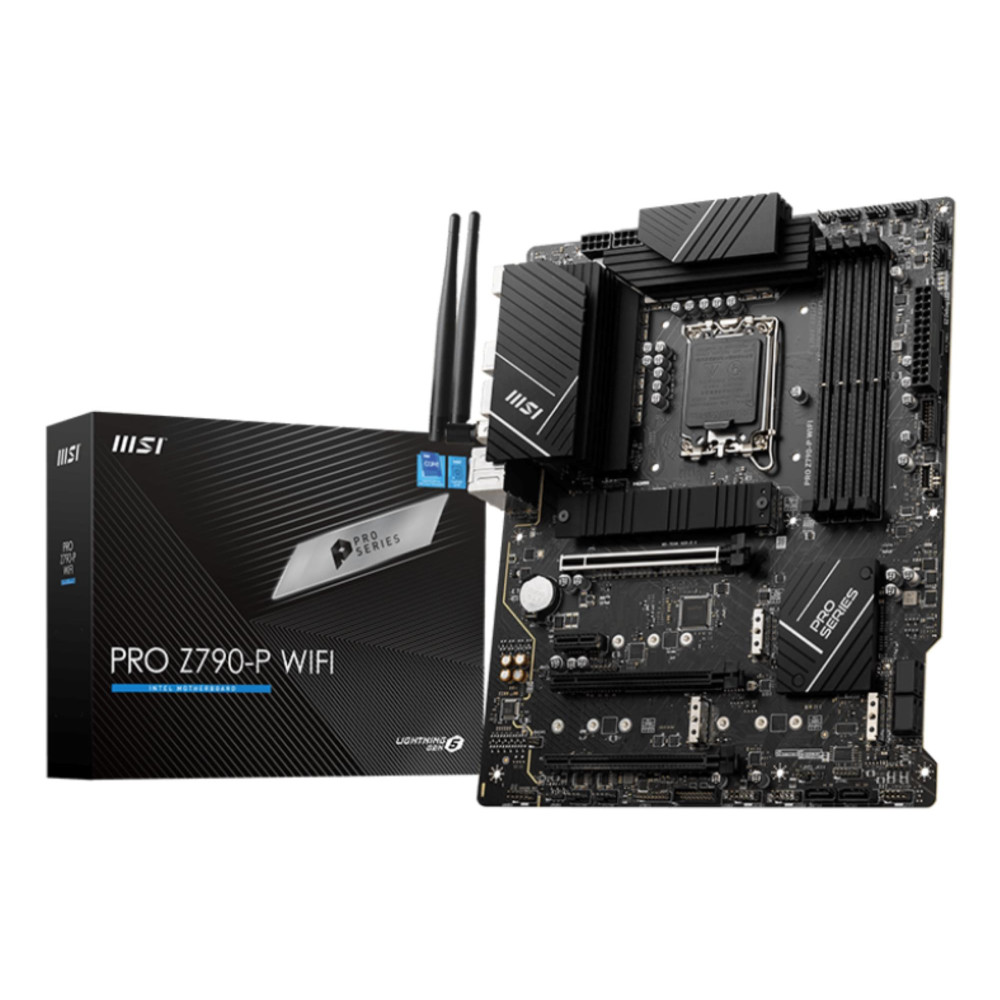

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4x
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Charakteristikos
- Garantija
- 36
- Summary
- MSI PRO Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron , Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, ECC сompatibility: Non-ECC. Supported sto
- Vendor Homepage
- https://www.msi.com/Motherboard/PRO-Z790-P-WIFI/Overview
- Category Code
- MBI
- Unit Box Height
- 0.068
- Unit Box Length
- 0.347
- Unit Box Width
- 0.27
- Processor (Processor manufacturer)
- Intel
- Network (Bluetooth)
- Yes
- Network (Top Wi-Fi standard)
- Wi-Fi 6 (802.11ax)
- Network (Wi-Fi standards)
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
- Weight & dimensions (Depth)
- 243.84 mm
- Weight & dimensions (Width)
- 304.8 mm
- Model
- PRO Z790-P WIFI
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.006371 cubm
- Unit Calculated Weight
- 1.56 kg
- Network (Bluetooth version)
- 5.3
- Packaging content (Cables included)
- SATA
- Memory (Maximum internal memory)
- 128 GB
- Network (Wi-Fi)
- Yes
- Graphics (On-board graphics card)
- No
- Network (Ethernet LAN)
- Yes
- Processor (Processor socket)
- LGA 1700
- Packaging content (Bundled software)
- Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
- Features (Product colour)
- Black
- Features (Windows operating systems supported)
- Windows 10 x64/Windows 11 x64
- Features (Audio output channels)
- 7.1 channels
- Features (Component for)
- PC
- Features (Motherboard chipset)
- Intel Z790
- Features (Motherboard chipset family)
- Intel
- Features (Motherboard form factor)
- ATX
- Processor (Compatible processor series)
- Intel Celeron /Intel Pentium Gold
- Processor (Supported processor sockets)
- LGA 1700
- Memory (ECC сompatibility)
- Non-ECC
- Memory (Number of memory slots)
- 4
- Memory (Supported memory clock speed (max))
- 7000 MHz
- Memory (Supported memory clock speeds)
- 4800/5000/5200/5400/5800/6000/6400/6600/6800/7000 MHz
- Memory (Supported memory types)
- DDR5-SDRAM
- Storage controllers (RAID levels)
- 0/1/10/5
- Storage controllers (RAID support)
- Yes
- Storage controllers (Supported storage drive interfaces)
- M.2,PCI Express
- Storage controllers (Supported storage drive types)
- HDD & SSD
- Graphics (Parallel processing technology support)
- Not supported
- Internal I/O (Front panel audio connector)
- Yes
- Internal I/O (Front panel connector)
- Yes
- Internal I/O (Number of SATA III connectors)
- 6
- Internal I/O (TPM connector)
- Yes
- Internal I/O (USB 2.0 connectors)
- 4
- Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
- 4
- Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
- 1
- Rear panel I/O ports (HDMI ports quantity)
- 1
- Rear panel I/O ports (HDMI version)
- 2.1
- Rear panel I/O ports (USB 2.0 ports quantity)
- 4
- Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
- 2
- Network (Ethernet interface type)
- 2.5 Gigabit Ethernet
- Expansion slots (Number of M.2 (M) slots)
- 4
- BIOS (BIOS memory size)
- 256 Mbit
- BIOS (BIOS type)
- UEFI AMI
- BIOS (System Management BIOS (SMBIOS) version)
- 3.5
- Features (Audio chip)
- Realtek ALC897
- Internal I/O (RGB LED pin header)
- Yes
- Rear panel I/O ports (DisplayPorts quantity)
- 1
- Rear panel I/O ports (DisplayPort version)
- 1.4
- Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
- 1
- Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
- 1
- Rear panel I/O ports (S/PDIF out port)
- Yes
- Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
- 1
- Storage controllers (Internal storage capacity)
- 10 GB
